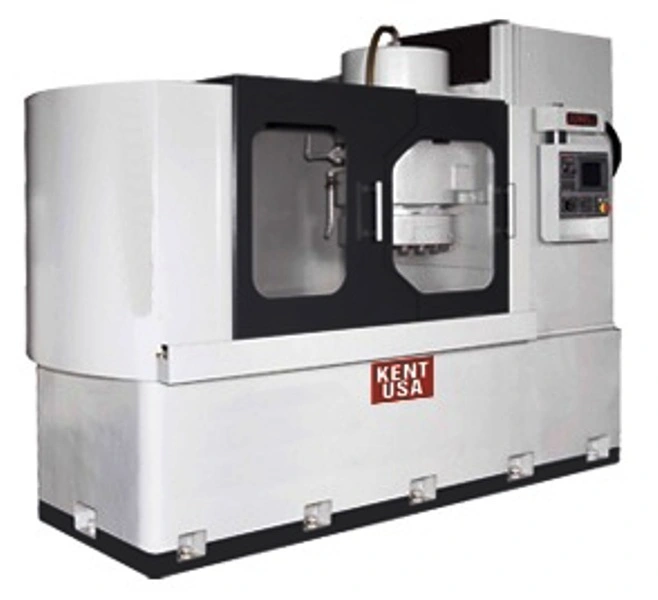

KENT USA MODEL VR-1000AND ROTARY TABLE SURFACE GRINDER- NEW
PRODUCT FEATURES
Meehanite class FC30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine
Spindle lateral design creates stability during heavy cutting.
Spindle Siemens V3 grade motor provides good water proofing resisting moisture
Vertical feeding uses 3 high stiffness and rigidity linear roller guides allowing smoothly vertical feeding while maintaining high stiffness
Small work piece suction is accomplished by fine electrical magnetic chuck
STANDARD ACCESSORIES
7.7” LCD touchscreen
Control system
Auto downfeed
Fine electronic magnetic chuck
Auto demagnetizer for chuck
Auto paper strip filter with magnetic separator and coolant system
Oil mist collector
GENERAL SPECIFICATIONS
Rotary magnetic chuck’s diameter:
39.4”
Max grinding radius:
20.66”
Distance of table surface to spindle surface:
15.7”
Rotary magnetic chuck speed:
5-20 RPM”
Rotary magnetic chuck horse power:
9.3 HP
Spindle motor:
50 HP
Spindle speed (50/60 Hz):
1450 / 1750 RPM
Auto down feed horse power:
4 HP
Vertical hand wheel down feed per revolution:
X1, x5. X10 (MPG) / 0.1, 0.5, 1mm
Vertical hand wheel down feed per graduation:
X1, x5. X10 (MPG) / 0.001, 0.005, 0.01mm
Wheel size (dia x width x bore):
5.9” x 1.97” x 0.98” x 0.32”
Net weight:
28,660 lbs
Gross weight:
30,864 lbs
Packing size:
177” x 78.7” x 98.4”
