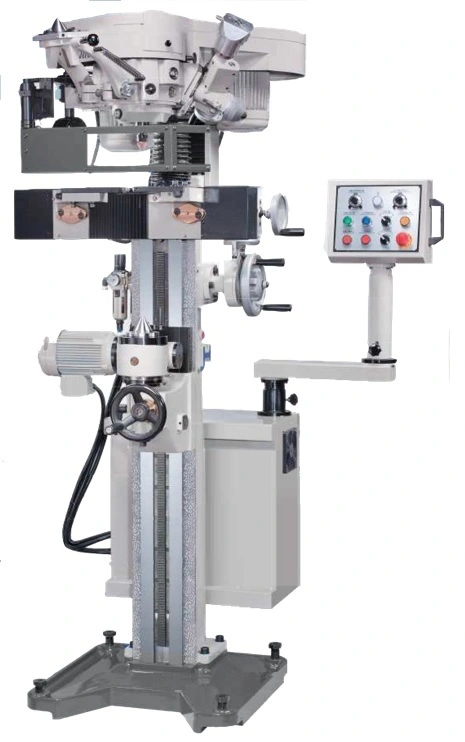

NEW KENT JHG-1510

Equipped With
KENT USA MODEL JHG-1510 CENTER HOLE GRINDER - NEW
Outstanding Features:
The machine is suitable for cuting tool, spindle, tool holder, gear shafts and tempered transmission shafts and the workpiece requests high accuracy from cylindrical grinding. The quality of cylindrical grinding will depend on the center holes circular geometrical accuracy.
A COMPETITIVE EDGE FOR FLEXIBLE GRINDING
With exclusive 3D design of synchronized grinding motion, the machine will be very stable and automatically locates center.
Grinding wheel rotation.
Versatile Grinding wheel spindle of planetary motion.
Grinding wheels reciprocation will be along line of taper surface.

PRICE INCLUDES:
Supporter, Ø30mm tungsten long center, Ø30mm tungsten short center, concentric adjusting rod, tool box, tools, work lamp, grinding wheel (Ø27mm, Ø27x10mm, Ø48x10mm)

​GENERAL SPECIFICATIONS
Range of Diameter
0.197" - 4.92"
Range of Length
1.97-39.37"
Max. Weight of Workpiece
220 Lbs
Center Hole Angle
60º
Center Hole Max Diameter
2.36"
Center Guide Hole Min Diameter
0.0787"
Capacity Planetary Reciprocation
0.059"
Spindle Motor
1/2 HP AC
Motor Planetary Reciprocation
1/5 HP AC
For Workpiece Drive
1/2 HP AC
Travel of Spindle
5.91"
Max. Travel Per Wheel Revolution
0.0394"
Travel Per Wheel Graduation
0.000394"
Spindle Speed
2000 RPM
Travel of Dressing Diamond
1.57"
Vertical Travel Per Wheel Revolution
0.059"
Horizontal Travel Per Wheel Revolution
0.059"
Voltage
3 Phase, 60 Cycle, 220 Volts
Electric Capacity
1.9 KVA
Weight
1389 Lbs
