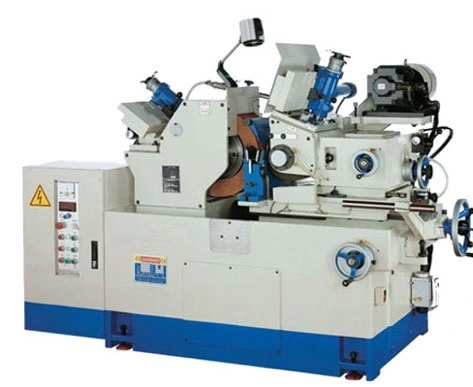

KENT USA MODEL JHC-18 CENTERLESS GRINDER - NEW
Outstanding Features:
0.04” – 2” diameter grinding capacity with standard work rest
Grinding wheel size 18” x 8” x 9”
Regulating wheel 10” x 8” x 4.38”
15 HP main grinding wheel motor
Compact design for minimum use of the shop floor space
Easy controls for maximum work efficiency
Automatic lubrication with safety interlock to prevent machine operation when there is no lubrication present
Hydraulic dresser for both grinding and regulating wheels insure smooth and evenly trued wheels
PRICE INCLUDES:
Grinding wheel and flange
Regulating wheel and flange
In-feed work rest and carbide blade
Thru-feed work rest and carbide blade
Diamond tool for dresser, coolant system
Work lamp
Standard tools
OPTIONAL ACCESSORIES
Wheel Balancing Base And Arbor
Hydraulic Work Ejector For In-Feed Grinding
Manual Work Feeder For In-Feed Grinding
Automatic In-Feed Unit
Automatic Loading And Unloading Unit For In-Feed Grinding
Profile Grinding Attachment With Template And Blade
Magazine-Type Automatic Loading Unit For Thru-Feed Grinding
Hopper-Type Automatic Loading Unit For Thru-Feed Grinding
Long Bar Grinding Support Unit
Paper Filter And Magnetic Separator Unit
Hydrocyclone Coolant Filter Unit
Vibratory Feeder For Thru-Feed Grinding
GENERAL SPECIFICATIONS
Grinding Range (Standard Work Rest)
0.04" - 2" Diameter
Grinding Range (Special Work Rest)
1.5" - 4" Diameter
Grinding Wheel Size
18" x 8" x 9"
Regulating Wheel Size
10" x 8" x 4.38"
Grinding Wheel Speed
1200 RPM
Regulating Wheel Speed
10 Steps, 13-316 RPM. Infinitely Variable
(10-250) For S Model
Grinding Wheel Motor
15 HP
Regulating Wheel Motor
2 HP
Hydraulic Pump Motor
1 HP (1800 RPM)
Coolant Pump Motor
1/4 HP (3600 RPM)
Upper Slide Feed Graduation
0.0001" (0.200 IPR)
Lower Slide Feed Graduation
0.0002" ( 0.400 IPR)
Lower Slide Micro Feed
0.000050" (Grad) 0.01 IPR
Dressing Device Graduation
0.0005" (Grad) 0.05 IPR
Regulating Wheel Tile Angle
+5 - -3 Deg
Regulating Wheel Swivel Angle
± 5º
Shipping Dimension
125" x 55" x 75"
Net Weight
6160 Lbs
Gross Weight
6820 Lbs
Power Requirements
230 Volts, 3 Phase, 60 Cycle, 85 Amp
Power Requirements (Optional)
460 Volts, 3 Phase, 60 Cycle, 42 Amp
