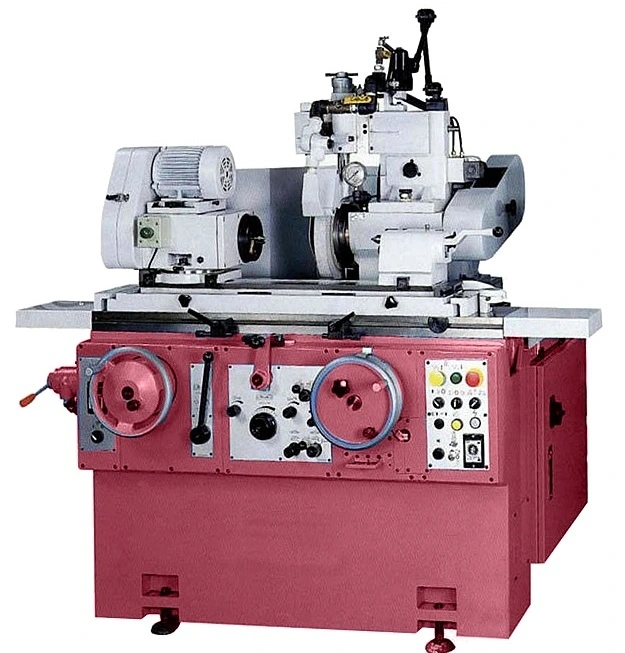

KENT USA MODEL GU-3500P CYLINDRICAL GRINDER - NEW
Outstanding Features:
Hydrostatic lubricated Spindle and Slideways allows for smoothest movement with maximum rigidity
C1 grade precision ball screw
Compact design for minimum use of the shop floor space
Easy access controls for maximum work efficiency
Automatic lubrication with safety interlock to prevent machine operation when there is no lubrication present
PRICE INCLUDES:
Grinding wheel and flange
Diamond tool for dresser
Coolant system
Splash guards
Carbide tipped work centers (#4 or #3)
Standard tools
OPTIONAL ACCESSORIES
Internal grinding attachment
Table mount wheel dresser
Cam locked type driving dog (6 piece set)
Adjustable 2 point steady rest
Hydraulic 3 Jaw chuck 7” with backplate
Magnetic separator coolant system
Paper filter and magnetic separator unit
Wheel balancing stand & arbor
GENERAL SPECIFICATIONS
Swing over table
12.6” (320mm)
Distance between centers
20” (500mm)
Max. grinding dia.
11” (280mm)
Max. grinding length
20” (500mm)
Max. load between centers
330 lbs. (150 kgs)
Swivel angle (wheelhead)
+/- 30 degrees
Grinding wheel size
14” x 2” x 5”
Maximum cross travel
11.6” (295mm)
Movement per graduation
0.0001” (2.5 μm)
Movement per turn of handwheel
0.04” (1 mm)
Automatic infeed stroke
0.0315” (0.08 mm)
Automatic pick feed amount (infinitely variable)
0.0001”–0.0016”(0.0025–0.04 mm)
Swivel angle (table)
+12.5˚
Table traverse speed (infinitely variable)
2 – 157”/min. (50 - 4000mm/min.)
Minimum automatic reciprocating stroke
0.2” (5 mm)
Movement per turn of handwheel
0.78” (20 mm)
Workhead swivel angle
90˚ to –30˚
Workhead rpm
4 steps 100 to 500 rpm
Workhead spindle taper
M.T. #4
Tailstock retraction
1” (25mm)
Tailstock spindle taper
M.T. #4
Grinding wheel motor
5 HP (1800 RPM)
Workhead motor
1 HP (0.75 kw)
Hydraulic pump motor
1 HP (1800 RPM)
Lubrication pump motor
¼ HP (3600 RPM)
Coolant pump motor
1/4 HP (3600 RPM)
Internal grinding attachment motor
1 HP (3600 rpm)
Hydraulic tank
17.2 Gallons (65 Liters)
Wheelhead lubrication tank
3.2 Gallons (12 Liters)
Coolant tank
40 Gallons (150 Liters)
Net weight (approx)
5060 LBS
