NEW KENT CDL-2040/2060

Equipped With

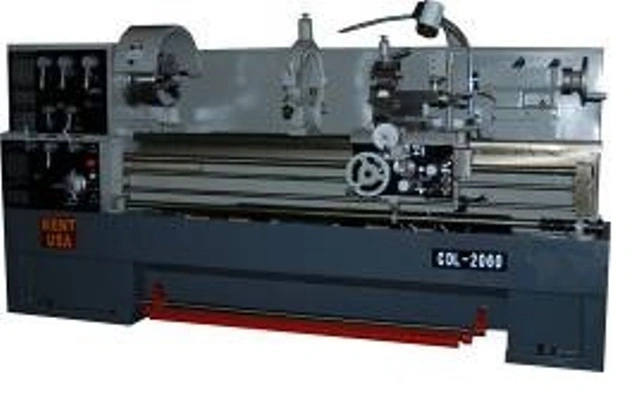

20" x 40"/60" KENT USA CDL 2040 / 2060 ENGINE LATHE - NEW
PRODUCT HIGHLIGHTS
7.3 HP main spindle motor, 12 speeds
D1-8 camlock, 3.2” spindle bore
Hardened and ground gears and bedways
Jog button
Multi-Position Feed Stops
Inch dials and leadscrews
Centralized lube system in headstock
Safety Foot brake
STANDARD ACCESSORIES
3-jaw chuck
4-jaw chuck
Face plate
Steady rest
Follow rest
Thread chasing dial toolbox with standard tools
OPTIONAL ACCESSORIES
Digital readout system
5C lever style collet closer
Alotis CA #4 Set (Tool Post Plus 6 Bars)
5C Lever Collet Closer
Royal spindle type live center
Live center set with interchangeable tips
BTC 3-jaw chuck with back plate
Taper Attachment
Rustlick lubricant

Swing Over Bed
Swing Over Cross Slide
Swing Over Gap
Width of Bed
Distance Between Centers
Cross Slide Travel
Top Slide Travel
Spindle Speeds
Spindle Speed Range
Through Hole Diameter
Spindle Nose
Spindle Bore Taper
Standard (Whit-Worth)
Metric Pitch
Longitudinal Feeds
Cross Feeds
Leadscrew Diameter
Thread Pitch
Quill Travel
Quill Diameter
Quill Bore Taper
Main Motor
Coolant Pump Motor
Overall Dimension
Packing Dimension
Net Weight
Gross Weight
CDL-2040 / 2060
20"
12.5"
28.9"
7.9"
40" / 60"
12"
4.7"
12
16-1600 RPM
3.2"
D1-8 Camlock
MT#5
32 (2-56) TPI
20 (0.5–14) mm
0.002”-0.032 in/rev
0.0007”-0.0095” in/rev
1.4"
4 TPI
5.9"
2.36"
MT#4
7.3 HP
1/8 HP
85" / 106" x 40" x 51"
91" / 112" x 45" x 72"
4488 LBS / 4950 LBS
5687 LBS / 6050 LBS
