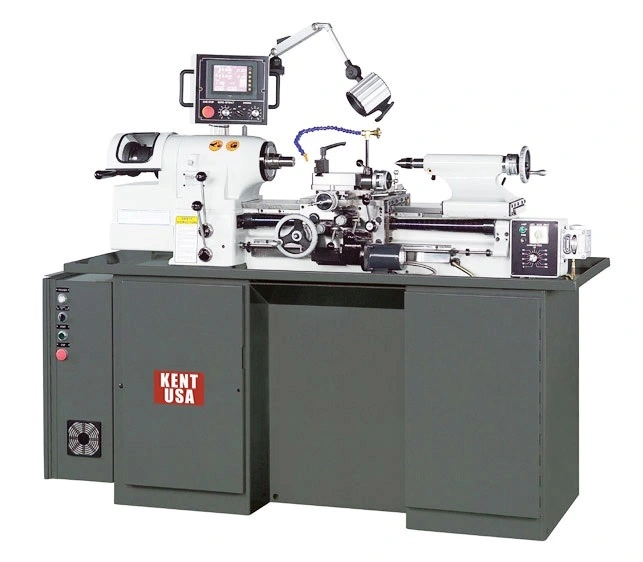

11" x 18" KENT USA CTL-618EVS PRECISION TOOLROOM LATHE - NEW
PRODUCT HIGHLIGHTS
50-4000 infinitely variable spindle speeds using electronic vector drive

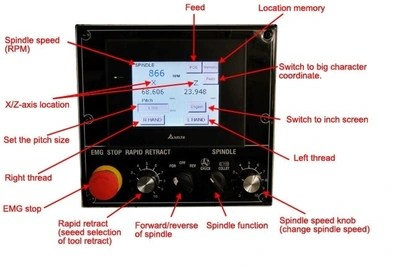

Flat panel LCD display shows spindle RPM and tool feed rate to let operator easily select best turning conditions
LCD displays electric current value to easily check for turning overload
Rapid retract function shortens threading cycle
Guaranteed Circular Accuracy to 0.00125mm
Full bearing carriage with Turcite-B coated slide way bearing material between carriage and bed
Fast lever collet chucking with one single movement
Solid hardened and ground alloy tool steel bed
Powerful 3 HP motor with current vector inverter drive increases low end torque
STANDARD ACCESSORIES
3-jaw chuck (6”)
5-C collet closer
Coolant system
Chip and coolant shield
Back Plate
Halogen work light
Toolbox with standard tools
OPTIONAL ACCESSORIES
Tool setting gage
5C collet fixture plate (3-3/8” Dia)
5C collet fixture plate (4-3/8” Dia)
Vertical cut-off slide LB-68-11
Steady rest
Follow rest
Face plate
Taper turning attachment*
6” zero-set universal 3-jaw chuck with 4º back plate
6” 4-jaw chuck with 4º back plate
*DRO system integrated (2-axis)
6 station automatic indexing turret L-40T.
Indicator carriage stop T-CSD-618 (without indicator)
4 station turret T-AIT-06
Radius turning attachment T-RT-108
Swing Over Bed
Swing Over Cross Slide
Swing Over Gap
Width of Bed
Distance Between Centers
Cross Slide Travel
Top Slide Travel
Spindle Speeds
Spindle Speed Range
Through Hole Diameter
Spindle Nose
Spindle Bore Taper
Thread – Standard (Whit-worth)
Thread – Metric Pitch
Longitudinal Feed
Cross Feed
Lead Screw Diameter
Threading Pitch
Quill Travel
Quill Diameter
Quill Bore Taper
Main Motor
Coolant Pump Motor
Machine Dimension
Packing Dimension
Machine weight
Packing weight
CTL-618E
11"
6"
9"
6-3/4"
18"
6"
3"
Inf. Variable
50-4000 RPM
-
-
I - 5C (10°)” & O - 4°
Var (11-108) TPI
Var (0.275-2.7) mm
5/16" - 7" ipm
5/16" - 4" ipm
1"
8 TPI
3.75"
1.358"
MT#2
3 HP
1/4 HP
65" x 28" x 58"
85" x 36" x 68"
2300 LBS
2450 LBS
