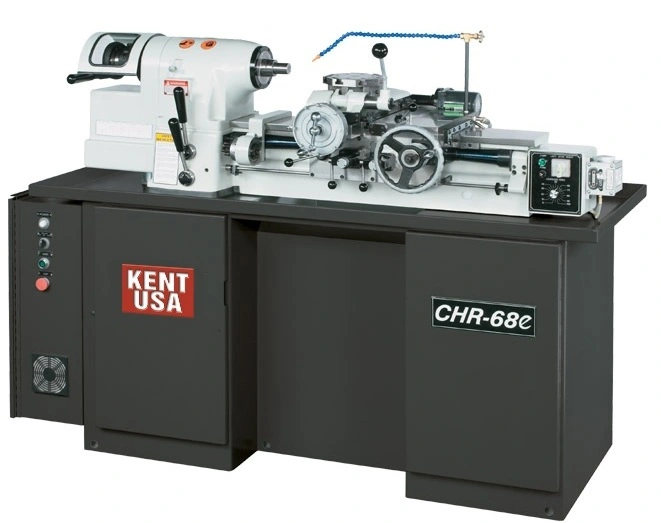

11" x 18" KENT USA CHR-68E CHUCKING LATHE - NEW
PRODUCT HIGHLIGHTS
0-4000 infinitely variable spindle speeds using electronic vector drive;
1-1/16” 5C thru-collet capacity;
Induction hardened and ground alloy steel bedways for extra longevity;
Full-bearing carriage;
OPTIONAL ACCESSORIES
Tool setting gage
5C collet fixture plate (3-3/8” Dia
5C collet fixture plate (4-3/8” Dia)
Vertical cut-off slide LB-68-11
Face plate.
6" Zero Set Universal 3-Jaw Chuck with 4º Back Plate
6" 4-Jaw Chuck With 4º Back Plate
*Acu-Rite 200S DRO (2-axis, x=0.0001”/z=0.0001” res)*
Indicator carriage stop T-CSD-618 (without indicator)
4 station turret T-AIT-06
Bed adapter for double tool cross slide (CHR-68-08)
Double tool cross slide (CHR-68-12)
Production threading unit (CHR-68-09)
Lead screws for threading unit(LB-09S-#, specify pitch)
Lead screw followers(LB-09F-#, specify pitch)
SPECIFICATIONS
Machine Capacity
Swing over bed
13” (330 mm)
Swing over cross slide
N/A
Swing over carriage
N/A
Width of bed
6-3/4” (172 mm)
Distance between centers
N/A
Cross slide travel
4.5” (114 mm)
Top slide travel
N/A
Main Spindle
Spindle speeds
Inf. Variable
Spindle speed range
0-4000 rpm
Spindle nose taper (I)
5C (10º)
Spindle nose taper (O)
4º
Threads
Standard
N/A
Metric pitch
N/A
Feeds
Longitudinal feeds
1/4”~10” per minute
Cross feeds
11/32”~6-1/4” per minute
Leadscrew
Leadscrew diameter
N/A
Thread pitch
N/A
Tailstock
Quill travel
N/A
Quill diameter
N/A
Quill bore taper
N/A
Power
Main motor
3 HP (3-phase)
Coolant pump motor
1/8 HP (3-phase)
Dimension
Overall dimension
73” x 30” x 67” (LxWxH)
Packing dimension
85” x 36” x 75” (LxWxH)
Weight
Net weight
2200 lbs
Gross weight
2400 lbs
