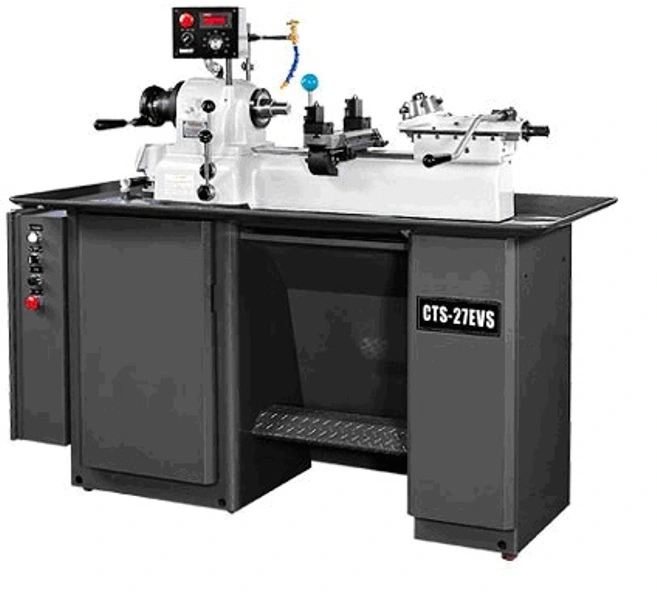

KENT USA CTS-27EVS PRECISION TOOLROOM LATHE - NEW
PRODUCT HIGHLIGHTS
0-4000 infinitely variable spindle speeds using electronic vector drive
1-1/16” 5C thru-collet capacity
Induction hardened and ground alloy steel bedways for extra longevity
Automatic indexing six position turret;
Built-in coolant system;
Double tool cross slide with wedge type tool posts and blocks
STANDARD ACCESSORIES
5-C collet closer
Coolant system
Toolbox with standard tools
OPTIONAL ACCESSORIES
5-1/2” Travel end working slide (CTS-27-09)
Compound slide (CTS-27-10)
Tailstock (CTS-27-11).
Chip and coolant shield (T-CS-10)
Vertical cut-off slide (CTS-27-08)
Straight and taper turning slide (CTS-27-07)
Quick acting recessing tool (T-QAR-10)
Face plate (T-FP-07A)
Centering and facing tool (T-CFT-16)
6” zero-set universal 3-jaw chuck with 4º back plate
6” 4-jaw chuck with 4º back plate
Tool holder extension (T-HE-16)
Adjustable rotary stop (T-RS-201)
Slide tool (T-ST-10).
Releasing tap holder (T-RT-08).
Releasing tap holder (T-RT-16)
Machine Capacity
Swing over bed
9” (229 mm)
Double tool cross slide travel
3-3/4” (95 mm)
I.D. of turret head
5/8” (15.875 mm)
Turret slide travel
4” (101 mm)
Main Spindle
Spindle speeds
Inf. Variable
Spindle speed range
0-4000 rpm
Spindle nose taper (I)
5C (10º)
Spindle nose taper (O)
4º
With jaw chucks
5” (125 mm)
With round 5C collets
1-1/16” (27 mm)
With hexagon 5C collets
7/8” (22 mm)
With square chucks
¾” (19 mm)
With Step chucks
1-1/16” – 6” (27–152mm)
Power
Main motor
3 HP (3-phase or 1-phase)
Coolant pump motor
1/4 HP (3-phase or 1-phase)
Dimension
Overall dimension
67” x 28” x 58” (LxWxH)
Packing dimension
73” x 36” x 75” (LxWxH)
Weight
Net weight
990 lbs
Gross weight
1364 lbs
