Equipped With

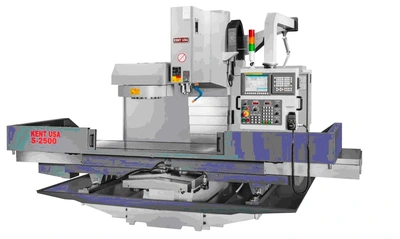

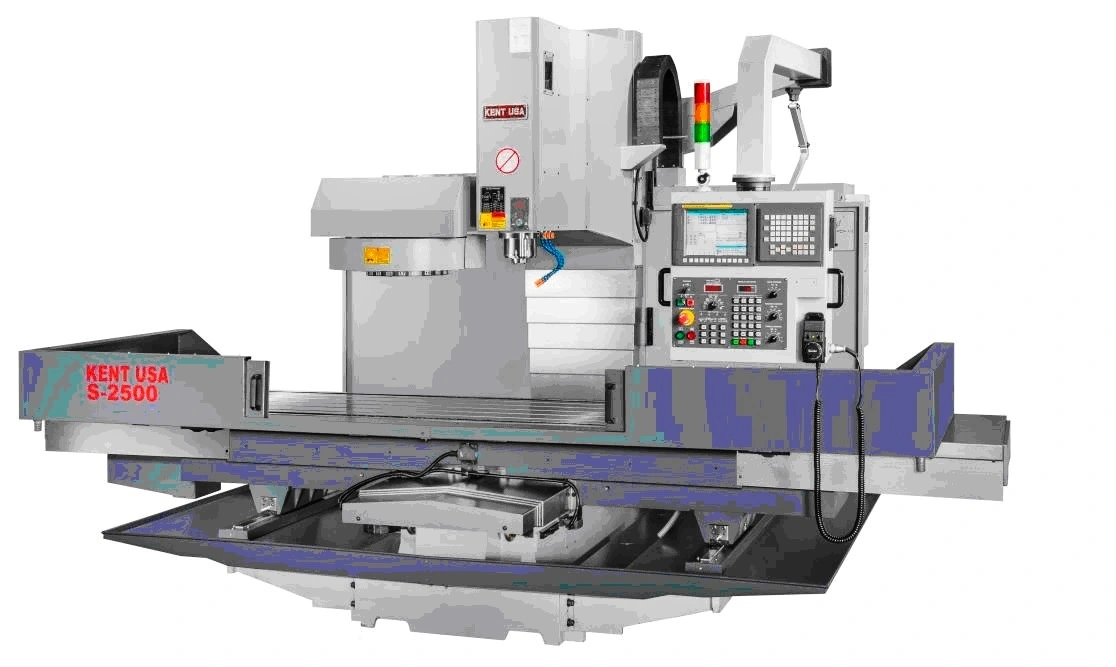

24" x 73" KENT USA S-2500 CNC VERTICAL BED MILL - NEW
PRODUCT FEATURES
15 HP Peak AC Servo Spindle Motor
Meehanite casting for superior rigidity
Hardened and Ground Square Y and Z-axis ways
Hardened and Ground table top and dovetail ways
Precision Ground ballscrews on X, Y and Z-axis
Ultra precision ground spindle, ABEC-7 bearings
Hardened and Ground spindle spline and taper
Auto Lube system with metered Check valves
Metal telescoping way cover on 3 Axis
Built in Coolant system and Chip pan
Halogen work light
Optional MPG Handwheels on X, Y, & Z axis
STANDARD ACCESSORIES
Fanuc 0i-MD CNC Control
Fanuc AC Servo Spindle Motor
Auto–Lubrication Unit
Flood Coolant System
OPTIONAL ACCESSORIES
Armless 22 Tool ATC BT / Cat 40
Arm Type 24 Tool ATC - BT / Cat 40
440V - 220V 25KVA Transformer
Spindle Motor A12i-11KW/15KW
Servo Motor Ais-30i / 7.0KW/30Nm on X & Y Axis
Table size
30” x 112”
Longitudinal travel
98.4”
Cross travel
33.8”
Vertical travel
28”
Spindle center to column
35”
Spindle nose to table
3” to 31”
Rapid feed rates (X, Y, Z)
393”/min
Spindle motor:
15 HP
Spindle taper:
CAT-40 (Opt. BT-40)
Spindle speed:
8000 RPM
Servo Motors (X and Y axis):
Ais-30i/7.0KW/30Nm
Coolant pump:
½ HP
Dimensions
169” x 89” x 100”
Gross weight
19,069 LBS
Net weight
18,298 LBS
