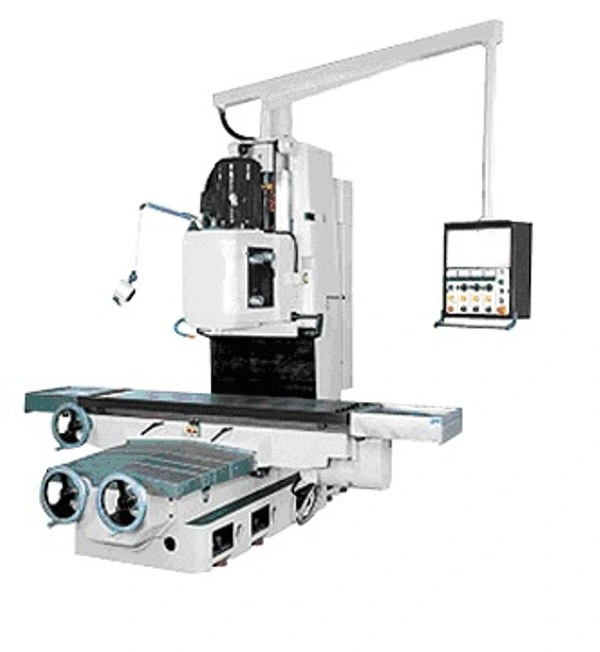

NEW KENT JY-V500

Equipped With
75" x 20" KENT USA JY-V500 VERTICAL BED MILL  - NEW
PRODUCT FEATURES
Integrated automatic lubricating system
Cooling system
Each travel axis is equipped with limit switches to ensure satety
The X,Y axis sideways coated with low-friction property material TURCITE-B
Standard electrical and electronic components are adopted. Electrical and electronic circuits are properly concealed
Controls are integrated on a panel, enhancing simple and easy operation thus avoiding fatigue and increase working efficiency
Feed change with inverter for variable speed change which design is easy to change spee
OPTIONAL ACCESSORIES
Upgrade To Fagor DRO

Table size
74.8” x 19.7”
Longitudinal travel
51.8”
Cross travel
19.7”
Vertical travel
23.6”
Spindle center to column
30.5”
Spindle nose to table
1.97” to 25.6”
Spindle center to column slide surface
19.7”
Rapid feed rates (X, Y, Z)
110”/min
Spindle motor:
10 HP x 4P AC
Spindle taper:
NT50
Spindle speed:
45-1500 RPM (18 steps)
AC Servo Motors (X, Y, Z):
3.4 HP
T-Slots:
18 mm X 5 x 80 mm
Maximum table load
3,300 LBS
Net weight
11,464 LBS
Machine dimensions
105” x 90” x 101”
