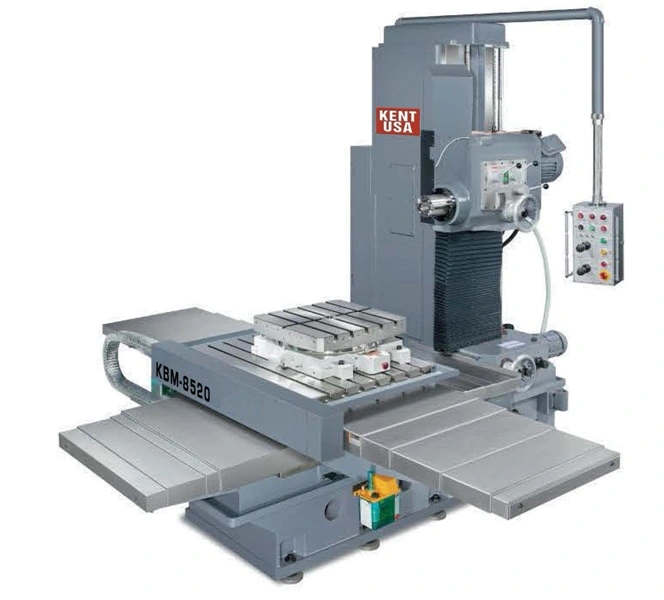

KENT USA KBM-8520 HORIZONTAL BORING MILL - NEW
PRODUCT FEATURES
10 HP spindle motor, #50 taper spindle, 55” x 32” hardened and ground table top
Precision ACME screws in X, Y, & Z axes
X, Y, & Z axes driven by AC motor
Compact operation panel
Meehanite® casting, with built in coolant reservoir in machine base
Coolant system
Centralized automatic lubrication
STANDARD ACCESSORIES
Hydraulic Pump
Lubrication System For 3 Axis Guide Ways
Adjusting Tools Kit
Linear Scales & Display
Air Clamping Device
Tapping
OPTIONAL ACCESSORIES
Index Table (manual) 600x600(mm)x72D
Index Table (manual) 600x600(mm)x360D
Index Table (manual) 700x700(mm)x72D
Index Table (manual) 700x700(mm)x360D
Index Table (manual) 800x800(mm)x72D
Index Table (manual) 800x800(mm)x360D
Y-axis Travel 1700mm (KBM-8520)
Z-axis Travel 1400mm (KBM-8520)
Table size
55” x 32” (1400mm x 800mm)
T-Slots
20 mm x7
Maximum Loading
4,400 lbs (2,000kgs)
Height From Ground
37” (926 mm)
X Axis Travel
78.7” (2000mm)
Y Axis Travel
55” (1400mm)
Z Axis Travel
47” (1200mm)
Distance Between Spindle Center to Working Table
0-55” (0-1400mm)
Distance Between Spindle Nose to Table Center
12-60” (300-1500mm)
X, Y, & Z 12 Steps Cutting Speed(60/50HZ)
28-875/23-730 mm/min
Z 12 Steps Boring Speed(60/50HZ)
0.028-0.875/0.023-0.73 mm/rev.
X, Y, & Z Rapid Speed(60/50HZ)
2800/2400 mm/min
Spindle motor
10HP x 4P(6P)
Spindle changing speed(60/50HZ)
45-1500(30-1000) RPM
Spindle taper
NT-50BT-50)
Spindle cycle lubrication motor
0.2kw x4P
Centralized lubrication motor
25w
Auto feed gear box motor
1.2kw x4P
Cutting coolant motor
0.1kw x4P
Transmission motor
1.5kw x4P
Machine Net weight
10,500 kgs
Floor space requirement
(4500mm x 4400mm)
