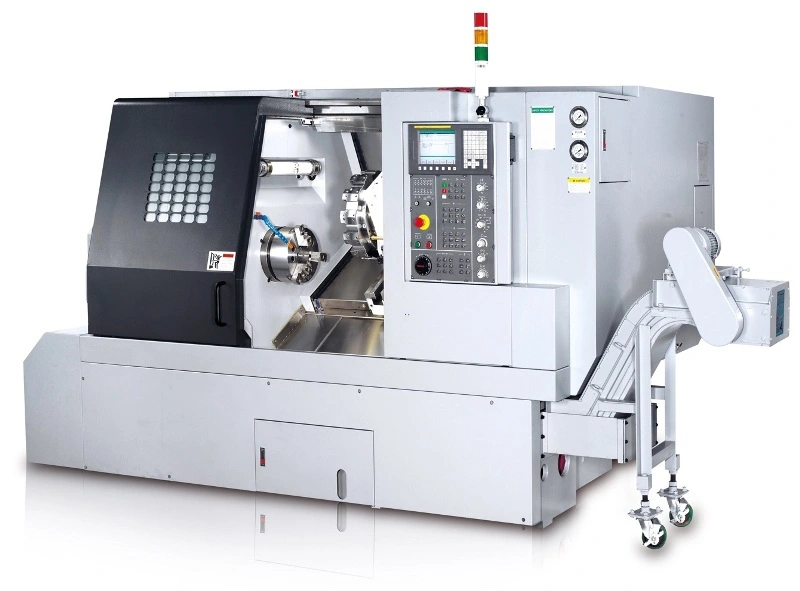

NEW KENT KLR-300

Equipped With
KENT USA KLR-300 CNC TURNING CENTER - NEW
The KENT USA KLR-300 series CNC slant bed lathe combines proven machine design with advance technology in control and manufacturing.  Reliability and stability make these a favorite among demanding job shops and in-house productions alike.  The heavy duty turret and rigid machine body structure enable higher turning efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today
PRODUCT HIGHLIGHTS
High power spindle motor
Large bar capacity
Large maximum turning diameter
High speed / high accuracy heavy duty 12 station turret
Fully enclosed way covers and enclosure
Induction hardened and precision ground box ways
Certified Meehanite machine casting for superior dampening and stability
High grade C3 precision ball screws and pretension for enhanced precisio
Auto lubrication system metered check valves and piston distributor
Programmable tail stock body and quill
STANDARD ACCESSORIES
Fanuc 0i-T CNC control with 8.4” color LCD
Fanuc i-Series high torque spindle and axis motor with digital drive system
Fanuc Absolute Encoders – machine axis start up “Home” sequence not required
Fanuc Auto-Measure System (X and Z)
Fanuc Macro-B and High Speed Skip Function
Fanuc USB, PCMCIA, Ethernet and RS-232 ports
Fanuc Manual Guide 0i – computer assist programming
Fanuc 400 registered part program numbers and 640M part program memory
Swivel-Out control panel
Heat exchanger for electrical cabinet
Hydraulic power supply unit
Flood coolant system (4 bar)
Chain type chip conveyor and chip cart
Full enclosure and way covers
Automatic lubrication system
3 color stack indicator light
12 station heavy duty high precision turret
Programmable tail stock body and quill
Standard soft jaws 3 sets + hard jaws 1 set
Induction hardened and precision ground box ways
30º slant bed with one piece Meehanite® casting
C-3 grade high precision ball screws
Facing tool holder (R/H) 25x25 mm 1 set
Facing tool holder (L/H) 25x25 mm 1 set
Boring bar holder ø40 mm 3 sets with 10/12/16/20/25/32 mm sockets
U-drill holder ø40 mm 1 set with 20/25/32 mm sockets
Drilling socket ø40 mm 1 set MT 1/2/3
Operator and Maintenance/Parts manuals
Standard equipment and accessories
Fanuc 0i-T cnc control with 8.4” color LCD
10” 3-jaw hydraulic chuck with 75 mm bar capacity
12 station hydraulic turret and coolant system
Programmable tail stock body and quill
Chain type chip conveyor and chip cart
OPTIONAL ACCESSORIES

Upgrade spindle nose taper from A2-8 to A2-11
Upgrade chuck diameter from 10” to (12” or 15”)
Upgrade spindle motor from 15/18.5 kW to 18.5/22 kW
Upgrade bar capacity from 75 mm to (90/105 mm)
Upgrade maximum turning length from 700 mm to (1200/1640/2200/3000 mm)
Upgrade to powered (live tools) turret APT-40
Bar feeder (various sizes available base on application)
Bar feeder interface (required for bar feeder option)
Upgrade to Fanuc 10.4” color LCD with Manual Guide
Renishaw HPRA tool setter
Renishaw HPPA tool setter
Oil mist collector
Oil coolant skimmer
Air conditioner for electrical cabinet
Transformer (440-460-480 to 220 volt)
On-site start up installation assistance


Specifications \ Model:
KLR-300
Controller type
Fanuc 0i-T
Swing over bed
612 mm (24.1”)
Swing over saddle
388 mm (15.3”)
Maximum turning diameter
500 mm (19.7”)
Maximum turning length
700 mm (27.6”)
Bed slant angle
30˚
Guide ways
Box ways
Spindle nose taper
A2-8
Spindle hole diameter
86 mm (3.38”)
Power chuck diameter
250 mm (10”)
Spindle speed
3500 rpm
Spindle motor power (cont/30min)
15/18.5 Kw (20/25 hp)
Bar capacity
75 mm (2.95”)
Z-axis travel
750 mm (29.5”)
X-axis travel
250+50 mm (9.8+1.9”)
Z-axis rapid feed rate
24 m/min (944 in/min)
X-axis rapid feed rate
20 m/min (787 in/min)
Turret driven type
Hydraulic
Number of tool stations
12
Square shank tooling size
25 mm or 1”
Round shank tooling size
40 mm or 1.5”
Tail stock body travel
540 mm (21.2”)
Quill travel
120 mm (4.72”)
Quill diameter
85 mm (3.34”)
Quill taper
MT-5
Quill control type
Hydraulic
Tail stock body positioning
Programmable
Floor space
3.0 x 1.8 m (119”x71”)
Height
1.8 m (71”)
Weight
5500 kg (12,130 lb)
