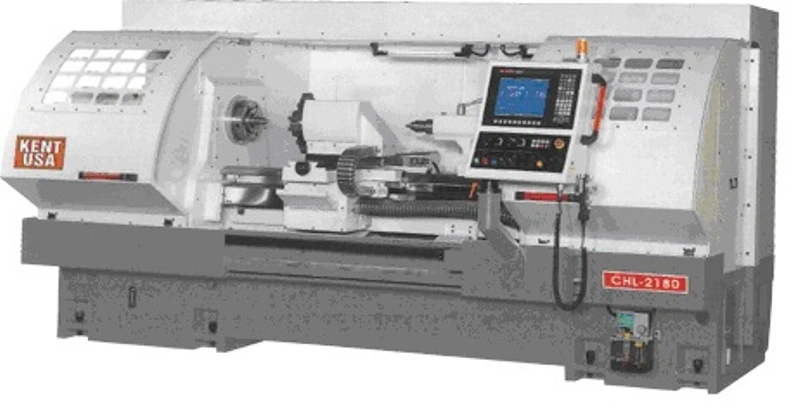

NEW KENT CHL-21 SERIES

Equipped With
KENT USA MODEL CNL-1740 CNC PRECISION LATHE - NEW
PRODUCT FEATURES
15 HP Fanuc Servo Spindle motor
4 operating modes: Manual, Teach-in, Conversational, and CNC
Rigid Meehanite castings with extra ribbing
Induction hardened and ground ways
4 speed Auto-shifting gearbox with alloy steel gears that are hardened and ground
Extra large precision ground ballscrews
20-2000 RPM range; electronic handwheels
Auto Lube system with metered Check valves

OPTIONAL ACCESSORIES
3 jaw scroll chuck (12”)
4 jaw independent chuck
Hydraulic chuck 8”
Hydraulic chuck 10"
Hydraulic tailstock
Follow rest
Face plate
Quick change toolpost
Hydraulic 8 tool Turret
Royal Live center (M.T. #5)
Rustlick coolant (1 gallon, mixes 1:30)

Swing Over Bed:
21”
Swing Over Cross slide:
12”
Distance Between Centers:
40” / 60” / 80” / 120”
Width of Bed:
13-1/2”
Spindle Nose:
D1-8 or ASA A2-8”
Spindle Bore:
3-1/16”
Spindle Taper:
MT #5
Spindle Speeds:
20-2000 RPM (4 ranges, M code auto shift)
Longitudinal Travel (Z-Axis):
28.3” / 48” / 67.7” / 107.1”
Cross Slide Travel (X-Axis):
11.8”
Z-Axis Ballscrew Diameter:
2-1/2”, 10mm pitch
X-Axis Ballscrew Diameter:
2”, 5mm pitch
Positioning Accuracy:
0.0005”
Repeatability:
0.0002”
Tailstock Quill Diameter:
3.347”
Tailstock Quill Travel:
7”
Tailstock Taper:
MT #5
Spindle Motor:
15 HP
AC Servo Motor (Z-Axis):
3.8 HP
AC Servo Motor (X-Axis):
1.7 HP
Net Weight:
8,910 / 9,680 / 10,560 / 11,660 LBS
Packing Dimension:
L: 126” / 145.7” / 165.4” / 204.7” x W: 90.6” x H: 88”
