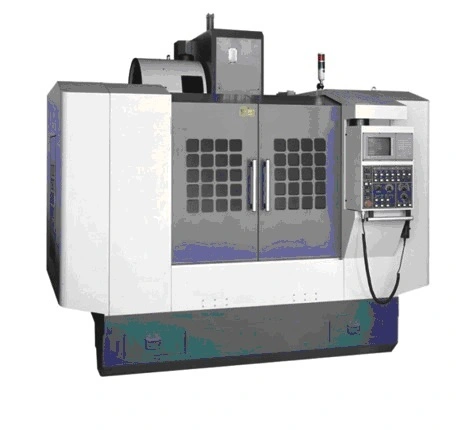

NEW KENT KVR-1364/40L

Equipped With
KENT USA KVR-3618 LINEAR GUIDE WAY VERTICAL MACHINING CENTER - NEW
 STANDARD EQUIPMENT
15/20 hp Fanuc Spindle Motor
Fanuc “i” Series High Torque Dual Wound High/Low Spindle Motor
10,000 rpm High Performance Spindle – CAT 40 w/Spindle Chiller
Travel X, Y, Z-axis: 51” x 25” x 24”
¨Fanuc 0i-MD Control w/10.4” LCD Color Monitor & Tool Path Graphics
¨Fanuc Data Server & Ethernet
¨Fanuc AICC-NANO High Speed Contour Control
¨400 Work Offsets
¨48 Work Coordinates
¨400 Registered Part Program Storage
¨Fanuc Macro “B” w/High Speed Skip Function
¨Spare “M” Functions
¨Fanuc Auto-Measure System (X, Y, Z)
¨Two Gigabyte Flash Drive
¨Remote Jog Handle
¨Fanuc Digital Drive System
¨Electrical Cabinet Heat Exchanger
¨24+1 Automatic Tool Changer, Side Mount Type w/ Sure-Trak® System
¨2 Gallon ATC Reserve Air Tank
¨SMART® Automatic Lubrication System
¨Coolant System w/Adjustable Nozzles For Spindle
¨Extra Large Roll Out Coolant Tank, 66 Gallons
¨Chip Flushing Nozzles At Rear Of Chip Pan
¨Auger Type Chip Conveyor
¨Full Metal Enclosure, w/Removable Side Doors
¨CE Rated Electrics
¨Halogen Work Light
¨Rigid Tapping
¨Manual Guide i Computer Assist Programming
¨Heavy Duty, Extra Wide “Roller Type” Linear Guide Ways w/Six Carrier Blocks
¨Certified MEEHANITE Casting
¨C-3 Grade Precision Ball Screws
¨Three Color Machine Status Beacon Light
¨Front Mount Spray & Air Guns
OPTIONAL ACCESSORIES
Coolant Surround Spindle
32 Tool, Side Mount ATC
Coolant Through Spindle, 15 Bar
Belt Type Chip Conveyor & Chip Cart
Renishaw TS-27R Tool Setter
Oil Mist Collector
4th Axis, CNC 200R, Motor, Driver & 8” Rotary Table
4th Axis, CNC 250R Motor, Driver & 10” Rotary Table
Transformer (380v/400v) *
SPECIFICATIONS
Table Size
57.08" x 24.40"
Max. Load On Table
2204 Lbs
T-Slots
5 x .708" x 4.921"
Table Top To Floor
38.78"
Travels

       X-Axis
51.18"
       Y-Axis
25.19"
       Z-Axis
24.4"
Spindle Nose To Table Surface
5.9"- 31.10"
Spindle Center To Column
27.08"
Spindle Taper
Cat 40
Drive Motor
15/20 HP
Feed Motors
5.3 HP
Max. Speed
10,000 RPM
Drive System
Belt
Transmission Type
High Torque, Dual Wound, High/Low
Tool Changer
24+1
ATC Type
Dual Arm, Side Mount
Max. Tool Weight
15.4 Lbs
Selection Method
Random
Rapid Traverse

     X & Y Axes
787 IPM
     Z-Axis
472 IPM
Ways
Linear, Roller Type
Positioning & Repeatability  Accuracy
±0.00019"
Approx. Weight
18,000 Lbs
Approx. Dimensions
161" x 125" x 117"
Power Requirements
100 AMP @ 220 Volts
