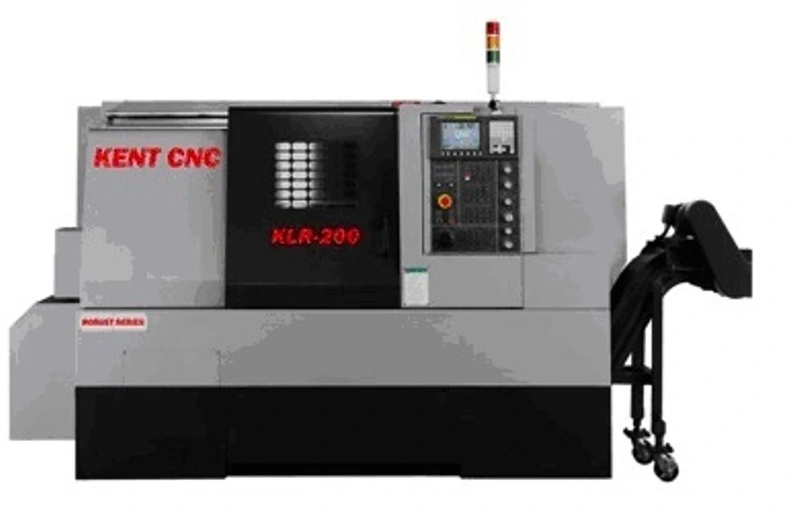

NEW KENT KLR-200

Equipped With
KENT USA KLR-200 CNC TURNING CENTER - NEW
The KENT USA KLR-300 series CNC slant bed lathe combines proven machine design with advance technology in control and manufacturing.  Reliability and stability make these a favorite among demanding job shops and in-house productions alike.  The heavy duty turret and rigid machine body structure enable higher turning efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today
PRODUCT HIGHLIGHTS
High power spindle motor
Large bar capacity
Large maximum turning diameter
High speed / high accuracy heavy duty 12 station turret
Fully enclosed way covers and enclosure
Induction hardened and precision ground box ways
Certified Meehanite machine casting for superior dampening and stability
High grade C3 precision ball screws and pretension for enhanced precisio
Auto lubrication system metered check valves and piston distributor
Programmable tail stock body and quill
STANDARD ACCESSORIES
¨15/20hp Fanuc Spindle Motor
¨13.8” Cutting Diameter
¨22.4” Cutting Length
¨Symmetrically Designed Reinforced Headstock
¨High Precision Spindle w/Dual-Roller Bearing & Self-Alignment Angular Bearings
¨Bar Capacity 2.04”
¨3 Soft Jaw Sets & 1 Hard Jaw Set
¨Fanuc “i” Series High Torque Spindle & Axis Motors
¨Absolute Encoders…No Need To Ever “Home” Machine Axis
¨Fanuc 0i-TC Control w/8.4” Color LCD Monitor
¨Embedded Ethernet
¨400 Work Offsets
¨400 Registered Part Program Storage
¨Fanuc Macro “B”
¨Fanuc High Speed Skip Function
¨Fanuc Auto-Measure System (X & Z)
¨Chip Conveyor & Chip Cart
¨Fanuc Digital Drive System
¨High Speed/High Accuracy Turret
¨Turret Tool Holders
¨Extra Large Curvic Coupled w/Roller-Cam High Precision Turret
¨SMART® Automatic Lubrication System
¨Extra Large Roll Out Coolant Tank
¨Electrical Cabinet Heat Exchanger
¨CE Rated Electrics
¨Dual Halogen Work Lights
¨Fully Enclosed Way Covers – Stainless Steel
¨Induction Hardened And Precision Ground Box Ways w/Turcite-B
¨MEEHANITE Casting
¨C-3 Grade Precision Ball Screws
OPTIONAL ACCESSORIES

Ethernet/Data Server 128 MB *
Fanuc 10.4” Color Monitor w/Manual Guide “i”
A2-8 Spindle w/12” Power Chuck, 3.54” Bar Capacity
 “ZF” Gear Box, 2-Speed
12-Station Servo Turret
VDI 40 Power Turret w/Full “C” Axis
Kent APT 40 Power Turret w/Full “C” Axis
Parts Catcher
 Auto-Door
SMW Autoblok Steady Rest, SLU-2 (0.315” to 3.976”)
SMW Autoblok Steady Rest, SLU-3 (0.473” to 5.984”)
SMW Autoblok Steady Rest, SLU-3.1 (0.787” to 6.496”)
Bar Feed Interface (BFI)
Transformer
Fully Intergraded Oil Skimmer System
Oil Mist Collector
Renishaw HPRA Tool Setter
Renishaw HPPA Tool Setter
Electrical Cabinet Cooler
Radial Driven Holders *
Axial Driven Holders (90 deg.) *
Additional 1 (One) Year Warranty *

TRAVELS & FEEDRATES
X Axis Travel                                               8.66”
Z Axis Travel                                               23.62”
Rapid In X                                                   787” IPM
Rapid In Z                                                   787” IPM
 SWING DIAMETER
Over “Z” Cover                                           19.88”
Over “X” Cover                                           12.52”

CAPACITIES
Chuck Size                                                  8.26”
Spindle Through Hole                                 2.44”
Bar Capacity                                               2.04”
Max Cutting Diameter                                13.78”
Max Cutting Length                                    22.4”

MOTORS
“X” Axis Motor                                            4 hp
 “Z” Axis Motor                                           4 hp
Turret Index Motor                                     4 hp
BALL SCREWS
“X” Axis Diameter                                      1.26”
“Z” Axis Diameter                                      1.57”
 SPINDLE
Spindle Nose                                            A2-6
Min/Max Rating                                        15/20 HP
Max Speed                                               4,500 rpm
Gearbox Steps (option)                            2

TURRET
Number of Tools                                       10
Tool Pocket Size (Square)                        1.0”
Tool Pocket Size (Round)                         1.25”

TAILSTOCK
Body Travel                                               21.45”
Taper                                                         MT-4
Quill Stroke                                                3.14”
Quill Diameter                                            2.95”
ACCURACY
Positioning (+/-)                                       +/- .0001”

MISCELLANEOUS
Approximate Weight                                                                  7,935 LB
Dimensions – Machine, Control & Conveyor (LxWxH)          114”x 63”x 67”
Power Requirements (amp/vac)                                               70 @ 220
