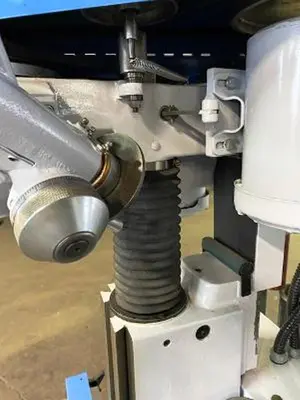

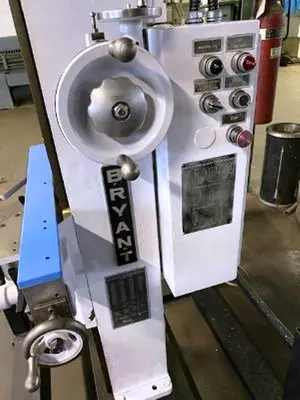

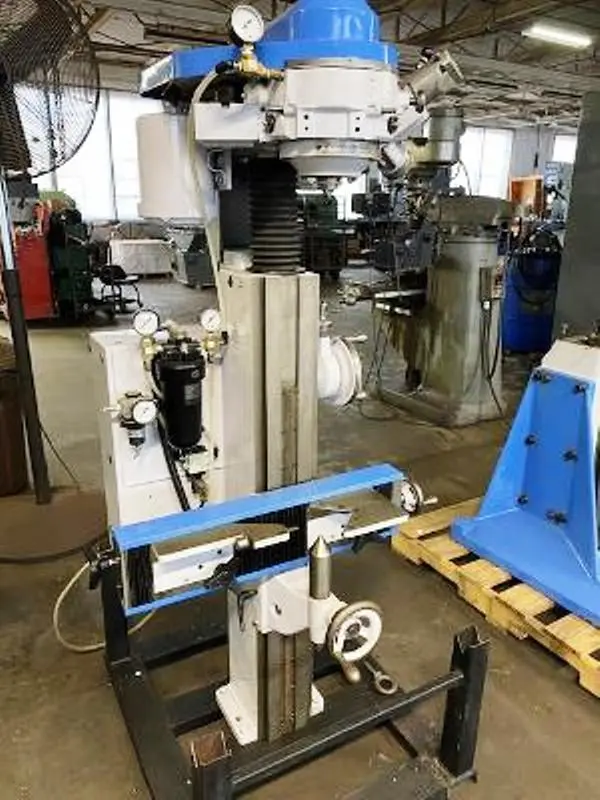

2" X 72" BRYANT CENTER HOLE GRINDER - REBUILT
Serial No. C13742
Rebuilt
1/4 HP, 220/440 Volt, 3-Phase, 60 Cycle, Planetary Motor
1/2 HP, 220/440 Volt, 3-Phase, 60 Cycle, Spindle Motor & Controls
EQUIPPED WITH:
Standard Vise Jaws
Cone Dresser
Adjustable Vise .060" to 6"
Operator's Manual
SPECIFICATIONS:
Capacity
2" x 72"
Diameter Capacity w/Standard Jaws
.060" x 6"
Will Grind Center Holes
.050 to 2" Diameter
Angular Grinding Stroke
.005 to .100"
Planetary Speed
330 RPM
Speeds (3)
13,000, 21,500 & 45,000 RPM
Approximate Dimensions
40" F-B x 32" L-R x 104" H
Approximate Weight
2,500 Lbs.
