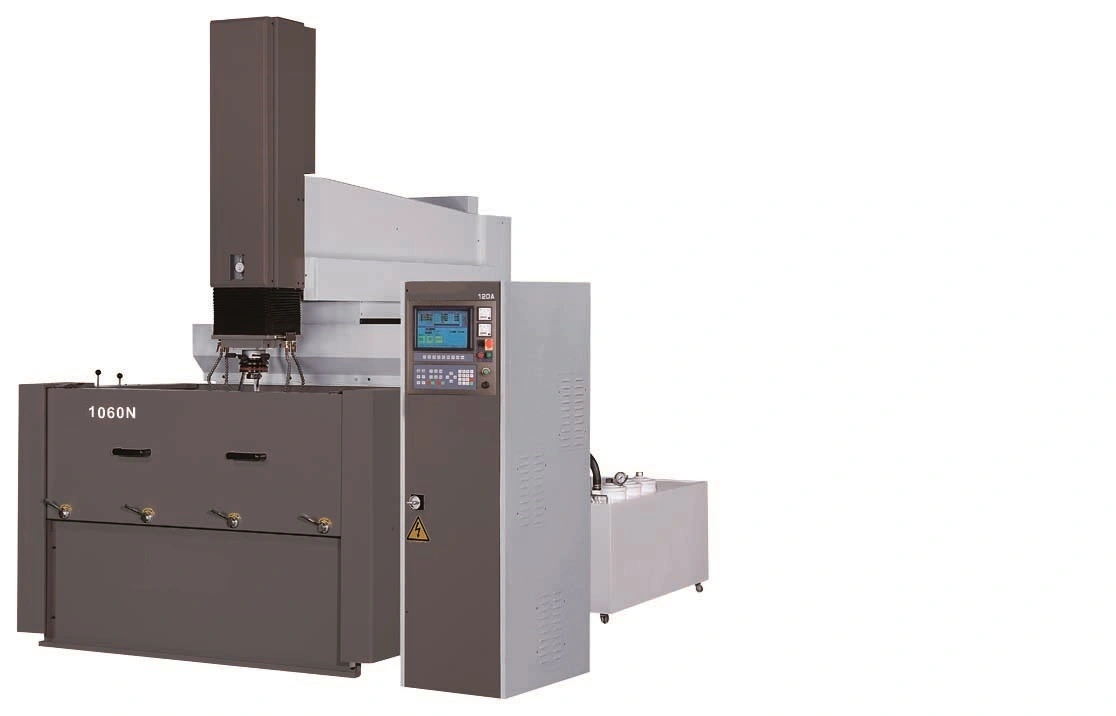

NEW KENT KEB-1060N

Equipped With
KENT USA KEB-1060N SINKER TYPE EDM - NEW
PRODUCT FEATURES
90 Amp power supply capacity
Fully ribbed solid castings for maximum rigidity and stability
Maximum 500 programmable steps for setting all machining parameters enables complete start to finish auto cycle for even the most complex jobs
MOSFET electric discharge circuit design is ideal for fast burning, reduced electrode wear, and uniform surface finish applications
Precision linear ways with oil immersed ball screw and DC Servo motor on Z-axis
Power rapid Ram up/down traverse motor
Centralized one-shot lubrication system provides lubrication to all points

STANDARD ACCESSORIES
Work head
Work lamp
Filter (2 Pcs)
Tool box
Automatic fire extinguisher
Color LCD
OPTIONAL ACCESSORIES
COC-200 CNC Orbit Cut System
Konetsu Permanent magnetic chuck
System 3R Tooling
Work Tank
Work Table
Travel (X / Y / Z + W)
Distance Between Plate to Table
Max Electrode
Max Work Load
Max Output Current
Max Stock Removal
Best Surface Finish
Best Electrode Wear
Dielectric Tank
Net Weight
KEB-1060N
74.8" x 43.75" x 24.4"
49.2" x 29.5"
39.4″ / 23.6″ / 19.7″
17.7" - 37.4"
770 LBS
9900 LBS
90 Amps
600 mm/min
Ra 0.2 - 0.5 mmRa
< 0.15%
1600 L (422 Gal.)
6834 LBS
