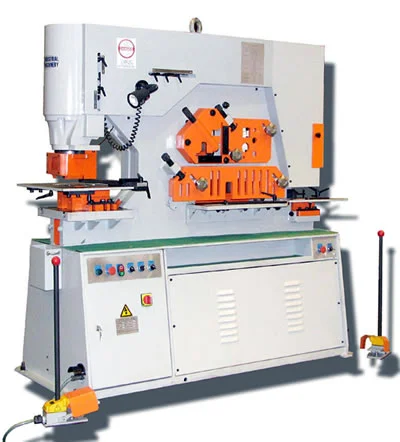

NEW U.S. INDUSTRIAL USHI-66T-DO

Equipped With
66 TON US INDUSTRIAL MODEL USHI-66T-DO HYDRAULIC IRONWORKER WITH DUAL OPERATOR STATIONS
BASE PRICE:  POR
STANDARD FEATURES
Dual Hydraulic Cylinders For Two Man Operation With Two Movable Foot Pedals
(5) Workstations (Punch, Plate Shear, Angle Shear, Rod Shear, And Notcher)  This Machine Also Comes With Brake Attachment
Punch Station Has Large 2-Piece Gauging Table With Fence
Punch Station Has Quick Acting Swing Away Stripper With 3 Inserts
Punch Station Has Removable Sections For Punch Leg of Channel Or I-Beam
Quick Change Coupling Nut & Sleeve For Punch
Electric Backgauge, 3' Long
Electrically Interlocked Safety Guard For Notching Station
Magnetic Base Workstation Light
7.5 HP, 3-Phase Operation
Three Sets Of Round Punch & Dies
Spare Parts & Tools
SPECIFICATIONS
Punch
     Punch Tonnage
66 Ton
     Punch Thickness
5/8"
     Punch Diameter
1-1/4"
     Throat Depth
12"
     Stroke Length
0  -  3.125"
Flat Bar Shear

      Max Thickness
12" x 5/8"
      Max. Diameter
16" x 5/16"
      Blade Length
16"
Angle Shear

      Capacity 90 Deg.
5" x 5" x 3/8"
      Capacity 45 Deg.
2" x 2" x 1/4"
Bar Shear

      Round
1.75"
      Square
1.625"
Notcher

       Thickness
3/8"
       Width
2.25"
       Depth
4"
Motor
7.5 HP
Approx. Dimensions
64" x 28" x 69"
Oil Capacity
20 Gal
Weight
3,527 Lbs
