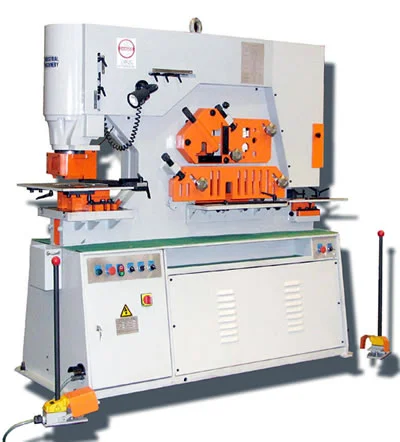

NEW U.S. INDUSTRIAL USHI-90T-DO

Equipped With
90 TON US INDUSTRIAL MODEL USHI-90T-DO HYDRAULIC IRONWORKER WITH DUAL OPERATOR STATIONS
BASE PRICE:  POR
STANDARD FEATURES
Dual Hydraulic Cylinders For Two Man Operation With Two Movable Foot Pedals
(5) Workstations (Punch, Plate Shear, Angle Shear, Rod Shear, And Notcher)  This Machine Also Comes With Brake Attachment
Punch Station Has Large 2-Piece Gauging Table With Fence
Punch Station Has Quick Acting Swing Away Stripper With 3 Inserts
Punch Station Has Removable Sections For Punch Leg of Channel Or I-Beam
Quick Change Coupling Nut & Sleeve For Punch
Electric Backgauge, 3' Long
Electrically Interlocked Safety Guard For Notching Station
Magnetic Base Workstation Light
10 HP, 3-Phase Operation
Three Sets Of Round Punch & Dies
Spare Parts & Tools
SPECIFICATIONS
Punch
     Punch Tonnage
90 Ton
     Punch Thickness
3/4"
     Punch Diameter
1-1/4"
     Throat Depth
14"
     Stroke Length
0  -  3.125"
Flat Bar Shear

      Max Thickness
14" x 3/4"
      Max. Diameter
18" x 5/8"
      Blade Length
19"
Angle Shear

      Capacity 90 Deg.
5.5" x 5.5" x 1/2"
      Capacity 45 Deg.
2" x 2" x 3/8"
Bar Shear

      Round
2"
      Square
2"
Notcher

       Thickness
1/2"
       Width
2.25"
       Depth
4"
Motor
10 HP
Approx. Dimensions
73" x 35" x 74"
Oil Capacity
25 Gal
Weight
5,260 Lbs
