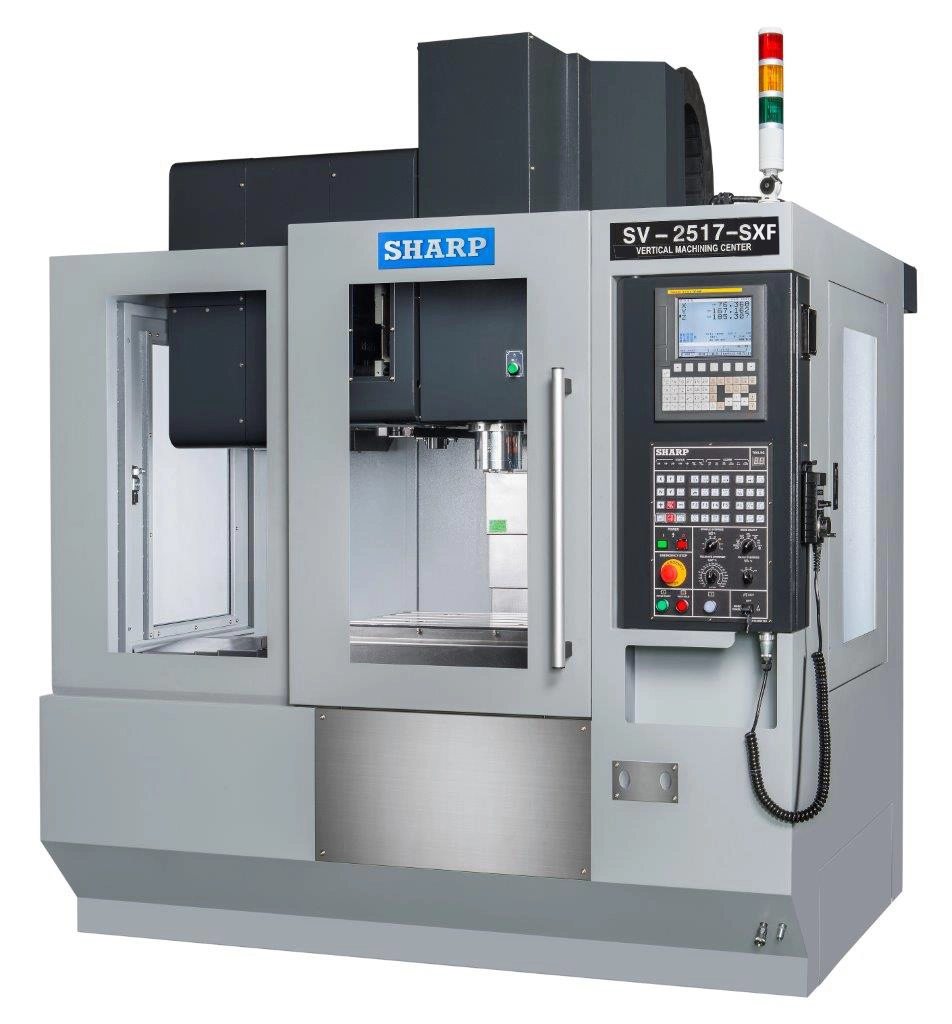

NEW SHARP SV-2517S-F BOX WAY CNC VERTICAL MACHINING CENTER
25” x 17” x 18” travel
Hardened and ground Box ways with TURCITE coating
8,000 rpm, CAT 40 spindle
16 tools carousel type ATC
Fanuc Oi-MF control panel with embedded Ethernet, RS232 port, USB port and Flash Drive port. (standard)
Pre-tensioned, double anchored, ball screws mounted on high precision angular contact bearings (ABEC 7), eliminate chatter and vibrations during heavy cutting.
Vertical head is equipped with 2 adjustable coolant nozzles, one adjustable air nozzle, 4 coolant openings and 4 air curtain openings under the spindle. There is also the air purge system that blows out chips at each tool change (standard)
Chip wash nozzles are installed at each side of machine base (standard)
Rigid taping, auto lube, thermal control system, coolant gun, air gun, interlock doors (standard)
Machine wt. 8,200 lbs
Box Way Vertical Machining Center
SV-2517S-F
Work Capacity
Travel X,Y,Z
25.2"x17.1"x23.6" (SZ-F)
Spindle Nose to Table
3.1 - 21.2 (S-F, SE-F)
Spindle Center to Column
19.3"
Work Table
Table Area
27.5" x 16.5"
Spindle
Spindle Taper
CAT 40
Spindle Max. Speed
8,000 rpm
Driving Type
Belt Drive
Motor (30m/cont.)
10 / 15 HP (7.5 / 11 kw)
Automatic Tool Changer (ATC)
Magazine type
Carousel
Magazine Capacity
16
Max. Tool Diameter
2.9" (75mm)
w/o adj. tool, max dia.
5.9" (150mm)
Max Tool Length
11.8" (300mm)
Max Tool Weight
15.4 lbs (7kg)
Air Blast at Tool Change
Standard
Motion
Cutting Feed Rate
0.04 - 393.7 IPM
Rapid Traverse
X / Y / Z: 787 IPM
Accuracy
Positioning Accuracy
0.00016 "
Repeatability Accuracy
0.00012 "
CNC Control Features
Controller
Fanuc Oi-MF
Programming Assist
Manual Guide
4th Axis Support
Standard
Screen Size
8.4 LCD
Coolant System
Flood Coolant Nozzles
2
Coolant Tank Capacity
42 gal.
Chip Pan
Standard
Power Requirement
Electrical
220V/3 Phase/20 KVA/60 Hz
Air
6 CFM @ 88 psi
Machine Measurements
Floor Space
80" x 87"
Height
99"
Door Opening
28.4"
Weight
8200 Lbs
STANDARD ACCESSORIES
Fanuc Oi-mate-MF control and drives with ; USB port, 512 K memory, Embedded Ethernet, RS-232C interface, 4 additional M codes, M30 Auto Power Off
Full metal enclosure with 2 large side doors
Coolant system with enlarged coolant tank
Coolant gun
Auto lubrication system
Rigid tapping
Air gun
Removable electronic hand wheel (MPG)
Door interlock
Chip pan
Air accumulator
Heat exchanger for electric cabinet
Florescent work light
OPTIONAL ACCESSORIES
4th axis software from Fanuc
4th axis kit prepped ( electrics, cables unit)
4th axis with rotary table (complete with drives, motor)
Scrapper type chip conveyor
Hinge type chip conveyor
Oil skimmer
Coolant Through Spindle (CTS) prepped (rotary joint, hoses, cylinder electrics)
CTS 20 bar/70 bar (300/1,000 psi) pump with tank
Tool Probe (Renishaw TS27R)
Tool Setter (Renishaw OMP40
