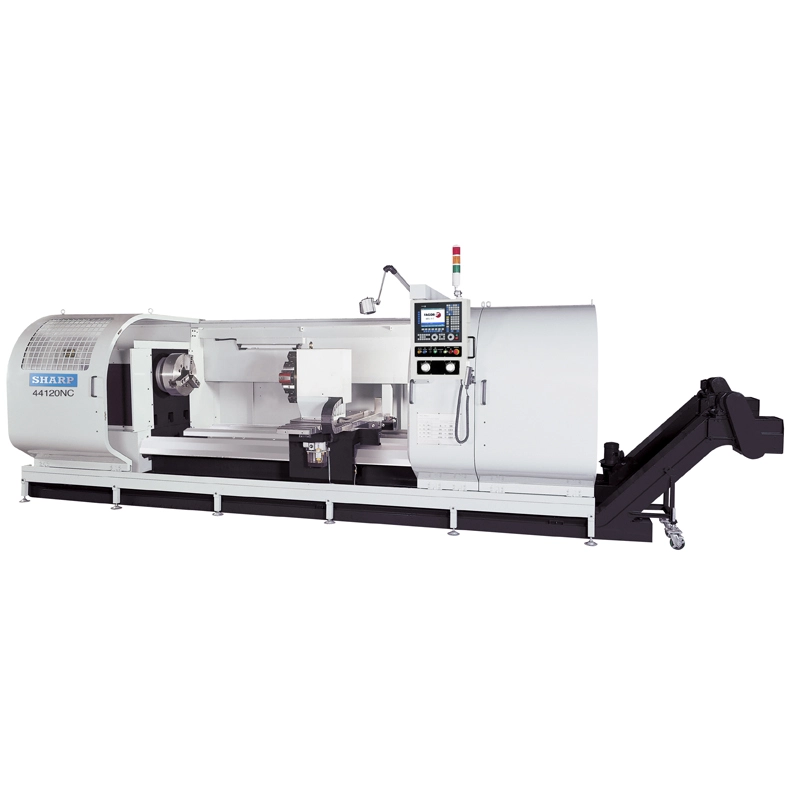

NEW SHARP STB-60 CNC BIG BORE LATHE
This is a heavy duty precision CNC lathe that can function at full horsepower during low and high speeds.
The large spindle bore and wide bedways are ideal for big parts and large mold work pieces.
This machine is available with option of 6", 9", 12" or 15" spindle bore, 37.7" swing over bed and 59" to 236" distance between centers.
The hardend and ground bedways are made from high quality Meehanite castings.
The spindle drive has 4 steps to deliver full power at all speeds.
The bedways and ballscrews are centrally lubricated with low level alarm.
The headstock is equipped with a heat exchanger to disperse heat and maintain spindle accuracy.
A full length chip conveyer and enclosed splash guard are all standard accessories.
CNC Heavy Duty Lathe
STB-38
STB-44
STB-50
STB-55
STB-60
STB-65
Capacity
Max Swing Over Bed
37.4" (960)
44.1" (1120)
50.4" (1280)
55.9" (1420)
59.8" (1519)
65.3" (1658)
Swing Over Cross Slide
23.6" (600)
30" (760)
33.38" (860)
39.3" (998)
43.3" (1100)
48.8" (1239)
Distance Between Centers
59" (1500), 78.74" (2000), 118.11" (3000), 157.48" (4000), 196.85" (5000), 236.22" (6000)
Bed
Width of Bed
32" (810)
Length of Bed
134" (3403), 154" (3911), 193" (4902), 232" (5982) 272" (6908), 311" (7899)
Bed Way
2 V, 2 Flat Ways
Headstock
Spindle Bore
6" (Opt: 9", 12", 15")
Spindle Nose
A2-11 (Opt: A2-15, A2-20)
Range of speeds (5.98" bore)
6-500 rpm (may vary by chuck size or motor HP)
Range of speeds (6"-15" bore)
7-350 rpm (may vary by chuck size or motor HP)
No. of Spindle Speeds
4 steps/Hydraulic
Spindle Taper
MT 6
Travel
X-Axis Travel
Hydraulic Turret: 23.62", H4-600mm
Z-Axis Travel
59" (1500), 78.74" (2000), 118.11" (3000), 157.48" (4000), 196.85" (5000), 236.22 (6000)
Diameter of X-Axis Ball Screw
32 mm
Diameter of Z-Axis Ball Screw
63 mm
Feed
X, Z-axis rapid feed rate
196.85"/min (5000 mm/min)
X, Z-axis rapid feed rate
118.11"/min (3000 mm/min)
OP-Turret
Turret Type
4 tools (H4), 8 tools (V8), 12 tools (V12), VDI (coolant access)
Tool Shank/Numbers
1.23" x 1.23", Opt: 1.57" x 1.57"
Tool Holder Bore Diameter
1.97"
Tailstock
Quill Diameter
7.87" (200)
Quill Travel
11.8" (300)
Quill Taper
MT6
Body Movement
Attached to saddle (std), or hydraulic (opt)
Body Lock-Type
Manual (OP: Hydraulic Type)
Quill Movement
Manual (std), Motorized (opt)
Motor
Spindle Motor
30HP (std, Fanuc alpha 22), 40 HP (opt), 60 HP (opt)
X-axis Servo Motor
4 HP (3 KW)
Y-axis Servo Motor
5.5 HP (Fanuc AC Servo)
10 HP (Fanuc AC Servo)
Hydraulic Pump
2 HP (1.5 kw)
Coolant Pump
1.7 HP (1.275 kw)
Control
Control
Fanuc Oi-TD
Standard Accessories
FANUC Oi-TD Controller
Spindle 4-steps speed auto. change
XZ-axes auto. lubrication system
XZ-axes with Turcite-B
XZ-axes C3 ball screw
Rear chain type chip conveyor
Manual tailstock MT#6
Steady rest 16"
Coolant system
Full enclosed splash guard
Heat exchanger
Dead center (2 piece set)
Tools & tool box
Operational manual
Packing pallet
Tailstock interference protection
Electronic hand wheel (MPG, Manual Pulse Generator)
Alarm lamp for working & cutting finish
Work lamp
Level pads
RS-232 interface
Optional Accessories
Transformer 55KVA
Transformer 60KVA
3-jaw scroll strong chuck (direct mounted) A2-11-20" (500mm)
3-jaw scroll strong chuck (direct mounted) A2-11/15-25" (630mm)
Hydraulic 3-jaw wedge type through-hole power chuck 18"
Hydraulic 3-jaw wedge non through-hole power chuck 18"
4-jaw independent chuck 32" (810mm, A2-11)
4-jaw independent chuck 40" (1000mm, A2-11)
4-jaw independent chuck 50" (1250mm, A2-11)
Face plate with 4-jaw, A2-11-32"
Face plate with 4-jaw, A2-11-40" (grip range 150-900mm)
Face plate with 4-jaw A2-11-50" (grip range 150-1150mm)
Steady rest 16" (bearing type, grip range 60mm-400mm)
Steady rest 24" (bearing type, grip range 380mm-600mm)
Follow rest (grip range 30-150mm)
Boring attachment for bar diagram 120mm
Spindle oil chiller 12000BTU
Hydraulic turret 4-way turret H4 (Square dia. 250, tool shank 32x32mm)
Hydraulic turret V-8 tools - boring toolholder 50mm-3 pcs, facing toolholder 32x32-1 pcs, 40, 32, 20, 16, 12, 10mm to fit boring toolholder
Hydraulic turret V-12 tools - boring toolholder 50mm-3 pcs, facing toolholder 32x32-1 pcs, 40, 32, 20, 16, 12, 10mm to fit boring toolholder
Tailstock with hydraulic quill
Tailstock base hydraulic with lock bolt
Air conditioner
