NEW KENT KLM-300SY

Equipped With

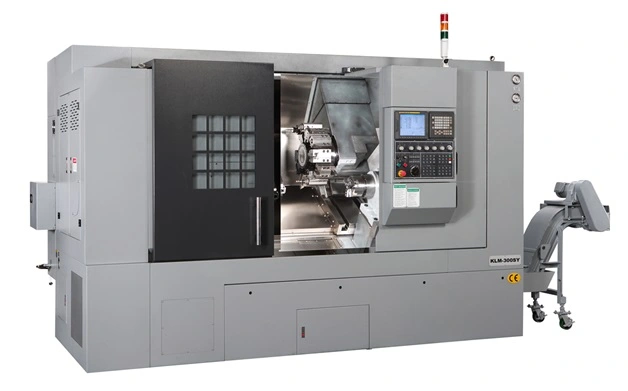

KENT USA KLM-300SY Horizontal Turning Center


The KENT USA KLM-300SY series CNC slant bed lathe combines proven machine design with advance technology in control and manufacturing.  Reliability and stability make these a favorite among demanding job shops and in-house productions alike.  The heavy duty live tool turret with Y-axis and rigid machine body structure enable higher turning efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today.
OUTSTANDING FEATURES:

High power main and sub spindle motors
High speed / high accuracy 12 station servo-mechanical turret
Powerful live/powered rotary tool turret for Y-axis machining
Powerful sub-spindle for flexible complete machining
Fully enclosed way covers and enclosure
Induction hardened and precision ground box ways
Certified Meehanite machine casting for superior dampening and stability
High grade C3 precision ball screws and pretension for enhanced precision
Auto lubrication system metered check valves and piston distributor

STANDARD EQUIPMENT & ACCESSORIES:

Fanuc 0i-TF CNC control with 10.4” color LCD
Fanuc i-Series high torque spindle and axis motor with digital drive system
Fanuc Absolute Encoders – machine axis start up “Home” sequence not required
Fanuc Auto-Measure System (X and Z)
Fanuc Macro-B and High Speed Skip Function
Fanuc USB, PCMCIA, Ethernet and RS-232 ports
Fanuc Manual Guide i – computer assist programming
Fanuc 400 registered part program numbers and 640M part program memory
Swivel-Out control panel
Heat exchanger for electrical cabinet
Hydraulic power supply unit
Flood coolant system (4 bar)
Chain type chip conveyor and chip cart
Full enclosure and way covers
Automatic lubrication system
3 color stack indicator light
12 station heavy duty high precision servo turret
Programmable tail stock body and quill
Standard soft jaws 3 sets + hard jaws 1 set
Induction hardened and precision ground box ways
30° slant bed with one piece Meehanite® casting
C-3 grade high precision ball screws
OD tool holder 25 x 25 mm 2 set
Boring bar holder ø40 mm 3 sets
Boring bar socket ø40 mm 1 set with 10/12/16/20/25/32 mm
Operator and Maintenance/Parts manuals
Available Factory Options:
Bar feeder (various sizes available base on application)
Bar feeder interface card with extra M-code (required for bar feeder)
Parts catcher option.
Auto door option.
Rotary tool holder (0 degree Radial)
Rotary tool holder (90 degree Axial)
Renishaw HPRA tool setter
Renishaw HPPA tool setter
Oil mist collector
Oil coolant skimmer
Control cabinet cooler (A/C unit)
Upgrade to high pressure 10-bar (150 psi) coolant system
Transformer (440-460-480 to 220 volt)
On-site start up installation assistance

Specifications \ Model:
KLM-300SY
Controller type
Fanuc 0i-TF
Swing over bed
910 mm
Swing over saddle
720 mm
Maximum cutting diameter (main spindle)
450 mm (17.7”)
Maximum cutting diameter (sub-spindle)
375 mm (14.7”)
Maximum cutting length
610 mm (24.0”)
Spindle nose taper (main/sub)
A2-8 / A2-5
Power chuck diameter (main/sub)
10” / 5”
Spindle speed (main/sub)
3500 / 6000 rpm
Spindle motor power (main/sub)
18.5 / 7.5 kW
Bar capacity (main/sub)
75 / 44 mm
Z-axis travel
750 mm
Y-axis travel
100 mm
X-axis travel
275 mm
B-axis travel
660 mm
Z-axis rapid feed rate
24 m/min
Y-axis rapid feed rate
10 m/min
X-axis rapid feed rate
20 m/min
B-axis rapid feed rate
20 m/min
Turret driven type
Servo-mechanical
Number of tool station
12
Square shank tooling size
25 mm
Round shank tooling size
40 mm
Rotary tool speed (max)
4000 rpm
Rotary tool power
4.5 kW
Floor space
3.5 x 2.0 m
Height
2.2 m
Weight
6500 kg
