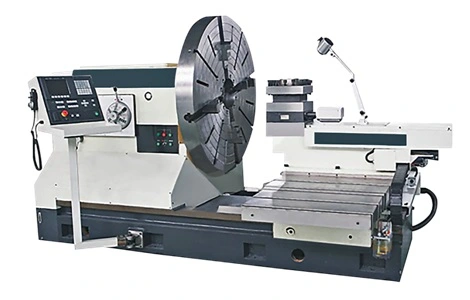

NEW KENT KLS-6320

Equipped With
KENT USA KLS-T6320 CNC T-LATHE - NEW


The KLS-T6320 CNC lathe combines proven machine design with advanced technology in control and manufacturing.  These rugged and reliable 2-axis cnc “T-lathe” are ideal for large diameter turning with short length type of workpiece applications.  The extra wide bed width and solid hardened and ground bed ways provide superior stability and precision for better part  finish and longer tool life.  KENT USA lathes are well established globally, with proven long-lasting dependable precision and performance with best in class customer service since 1979.
Standard Equipment:
Fanuc 0i-TF CNC control system with Fanuc servo motors and drives
Remote handheld MPG handwheel
4-position automatic tool post
Work light
Flood coolant system
Automatic lubrication system
Toolbox with standard tools
Leveling bolts and pads
Available Factory installed Options*:
Upgrade to 6-station tool post
Upgrade to 8-station turret
31 inch chuck, 3-jaw
31 inch chuck, 4-jaw independent
55 inch chuck, 4-jaw independent
Machine splash enclosure option
Transformer for 440~480 volt input power
Start up installation assistance and commissioning


CAPACITY:
Maximum swing over bed
1600 mm
62.9 inch
Maximum swing over carriage
1000 mm
39.3 inch
Width of bed
1100 mm
43.3 inch
SPINDLE:
Spindle nose
A2-15
Spindle bore
130 mm
5.1 inch
Spindle speeds step
2 steps (Hi/Lo)
Spindle speeds range
2.5 – 34, 20 – 270 rpm
FEEDS:
Rapid feed X-axis
12 m/min
472 inch/min
Rapid feed Z-axis
6 m/min
236 inch/min
TRAVELS:
Maximum travel X-axis
900 mm
35.4 inch
Maximum travel Z-axis
500 mm
19.6 inch
Manual carriage adjustable travel
500 mm
19.6 inch
TOOL POST
Number of tool stations
4
Tool size
50 mm
1.96 inch
OTHER:
Main motor power
22 kw
30 hp
Coolant pump power
250 w
1/3 hp
Overall dimension (length)
3500 mm
11.5 feet
Overall dimension (width)
2600 mm
8.6 feet
Overall dimension (height)
2100 mm
6.9 feet
Machine net weight
11,000 kg
24,250 lb
