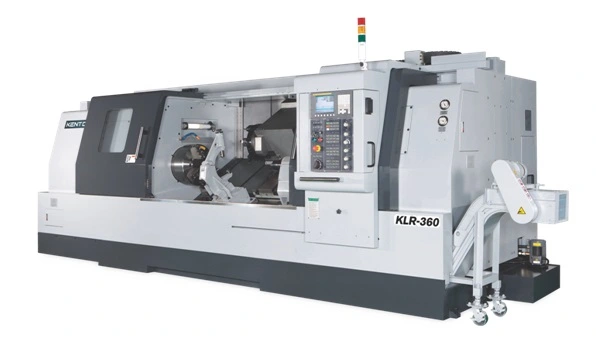

NEW KENT KLR-360L

Equipped With
KENT USA KLR-360 Series Horizontal Turning Center
 The KENT USA KLR-360L CNC slant bed lathe combines proven machine design with advance technology in control and manufacturing.  Reliability and stability make these a favorite among demanding job shops and in-house productions alike.  The heavy duty turret and rigid slant bed one-piece machine base enable higher turning efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today.
OUTSTANDING FEATURES:

High power spindle motor
Large bar capacity
Large maximum turning diameter
High speed / high accuracy heavy duty 12 station turret
Fully enclosed way covers and enclosure
Extra large Induction hardened and precision ground box ways
Certified fine grain Meehanite casting for superior dampening and stability
High grade C3 precision ball screws and pretension for enhanced precision
Auto lubrication system metered check valves and piston distributor
Programmable tail stock body and quill
STANDARD EQUIPMENT & ACCESSORIES:
Fanuc 0i-T CNC control with 8.4” color LCD
Fanuc i-Series high torque spindle and axis motor with digital drive system
Fanuc Absolute Encoders – machine axis start up “Home” sequence not required
Fanuc Auto-Measure System (X and Z)
Fanuc Macro-B and High Speed Skip Function
Fanuc USB, PCMCIA, Ethernet and RS-232 ports
Fanuc Manual Guide 0i – computer assist programming
Fanuc 400 registered part program numbers and 640M part program memory
Swivel-Out control panel
Heat exchanger for electrical cabinet
Flood coolant system (4 bar)
Chain type chip conveyor and chip cart
Full enclosure and way covers
Automatic lubrication system
3 color stack indicator light
12 station heavy duty high precision turret
Programmable tail stock body and quill
Standard soft jaws 3 sets + hard jaws 1 set
Induction hardened and precision ground box ways
30° slant bed with fine grain Meehanite® one-piece casting
C-3 grade high precision ball screws
Facing tool holder (R/H) 32x32 mm 1 set
Facing tool holder (L/H) 32x32 mm 1 set
Boring bar holder ø50 mm 3 sets
U-drill holder ø50 mm 1 set
Boring bar socket ø50 mm 1 set 16/20/25/32/40 mm
Operator and Maintenance/Parts manuals
OPTIONAL ACCESSORIES

Spindle nose taper of A2-11 or A2-15
Chuck diameter of 15 or 18”
Upgrade spindle motor to 30/37 kW
Bar capacity of (105/116.5/166.5 mm)
Maximum turning length of (1630/2130/3000 mm)
Upgrade to powered (live tools) turret
Bar feeder (various sizes available base on application)
Bar feeder interface (required for bar feeder option)
Bar capacity 105 mm (4.13”) A2-11, 15” chuck, 2500 RPM
Upgrade to Fanuc 10.4” color LCD with Manual Guide i
Renishaw HPRA Tool Setter
Oil mist collector
Oil coolant skimmer.
Air conditioner for electrical cabinet
Transformer (440-460-480 to 220 volt)
On-site start up installation assistance



Specifications \ Model:
KLR-360L
Controller type
Fanuc 0i-T
Swing over bed
750 mm (29.5”)
Swing over saddle
600 mm (23.6”)
Maximum turning diameter
550 mm (21.6”)
Maximum turning length
1130 mm (44.5”)
Bed slant angle
30°
Guide ways
Box ways
Spindle nose taper
A2-8
Spindle hole diameter
101 mm (3.97”)
Power chuck diameter
305 mm (12”)
Spindle speed
2700 rpm
Spindle motor power (cont/30min)
18.5/22 Kw (25/30 hp)
Bar capacity
90 mm (3.54”)
Z-axis travel
1250 mm (49.2”)
X-axis travel
275+30 mm (10.8+1.2”)
Z-axis rapid feed rate
20 m/min (787 in/min)
X-axis rapid feed rate
20 m/min (787 in/min)
Turret driven type
Hydraulic
Number of tool stations
12
Square shank tooling size
32 mm (1.25”)
Round shank tooling size
50 mm (1.96”)
Tail stock body travel
1040 mm (40.9”)
Quill travel
120 mm (4.72”)
Quill diameter
85 mm (3.34”)
Quill taper
MT-5
Quill control type
Hydraulic
Tail stock body positioning
Programmable
Floor space
5.7 x 2.2 m (18.7 x 7.2 ft)
Height
2.3 m (7.6 ft)
Weight
7000 kg (15,400 lb)
