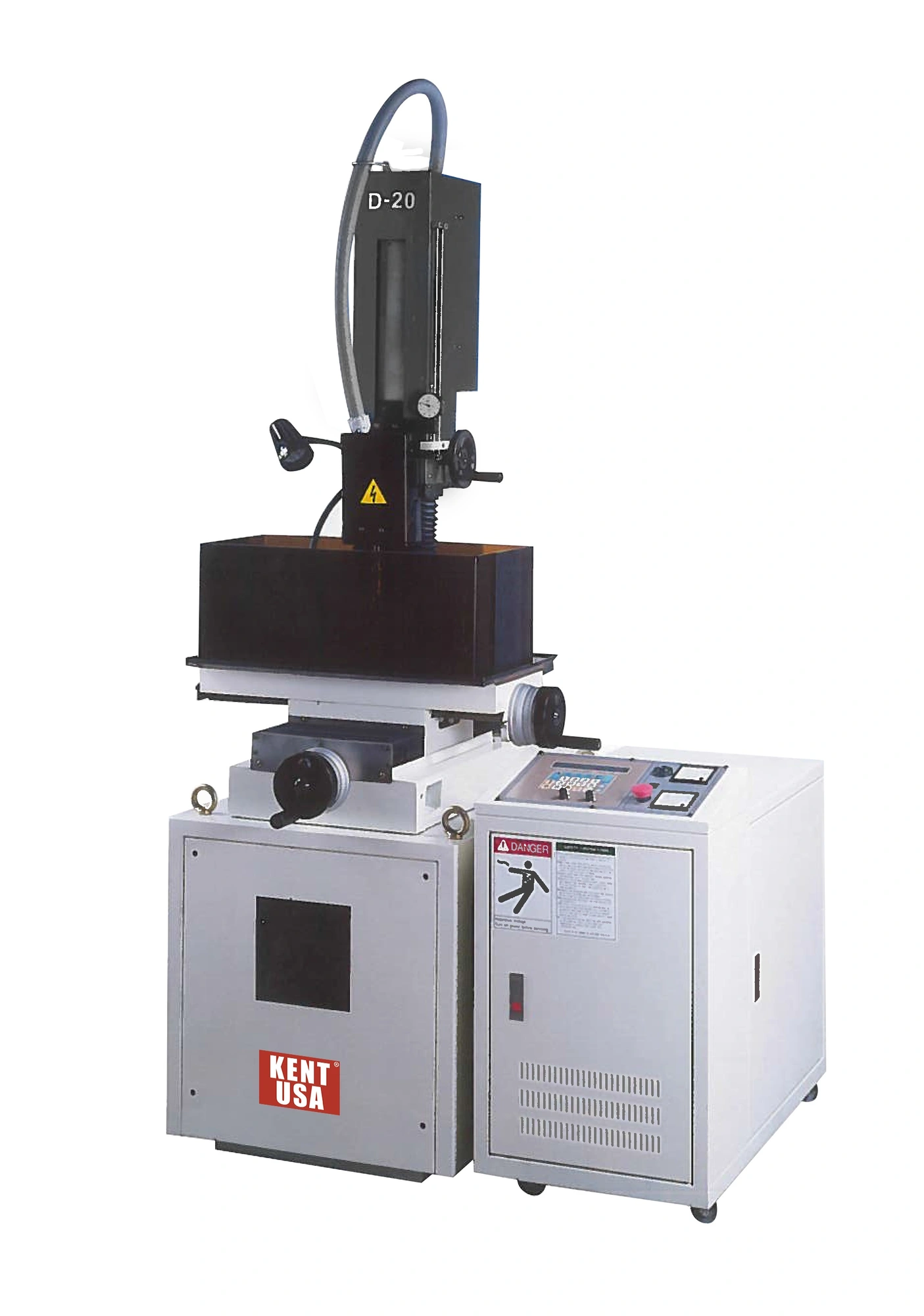

KENT USA AD-20 DRILLING TYPE EDM- NEW
PRODUCT FEATURES
Digital display and numeric operational controls with 10 separate memory sets for job and parameter settings provide quick and easy set ups.
Drilling time preset for simple and easy operation during multi-hole drilling.
Large electrode range, from ø0.3 – ø3.0mm, permits drilling on a wide range of materials such as hard metal alloy, stainless, cooper, aluminum, etc.
Distilled water can be used as the dielectric fluid, saving cost and conventional dielectric fluid disposal issues.
STANDARD ACCESSORIES
Electrode chuck ø0.2mm - ø3.0mm (1 pc)
Electrode guide ø1.0mm (1 pc)
Brass pipe ø1.0mm (10 pc)
Toolbox with standard tools
Filter unit (1 pc)
OPTIONAL ACCESSORIES
Digital readout (DRO) system for auto depth setting
Electro guide ø0.3mm - ø3.0mm in 0.1mm steps (Each piece)
Electro pipe ø0.3mm - ø3.0mm in 0.1mm steps (Each piece)
Filter replacement unit
Precision electrode chuck (0.2 – 3.0mm)
Air compressor0
SPECIFICATIONS
Work Table
8.3" x 18.9"
Table Travel (X Axis)
11.8"
Cross Travel (Y Axis)
7.9"
Ram Servo Travel (Z1 Axis)
13.6"
Max Work Piece Weight
440 Lbs
Electrode Pipe Diameter
Ø0.0078" - Ø0.91"
Guider To Work Table Distance
3.1" - 8.3"
Max. Machining Current
30A
Current Setting
9 Steps
Pulse Time On
9 Steps
Pulse Time Off
9 Steps
Dielectric Tank Capacity
7.9 Gal
Power Requirements
220/440 Volts, 3 Phase, 60 Hz, 18 / 9 Amp
Approx. Dimensions
40" x 40" x 82"
Approx. Weight
1320 Lbs
