NEW SHIGIYA GPD-20-43

Equipped With

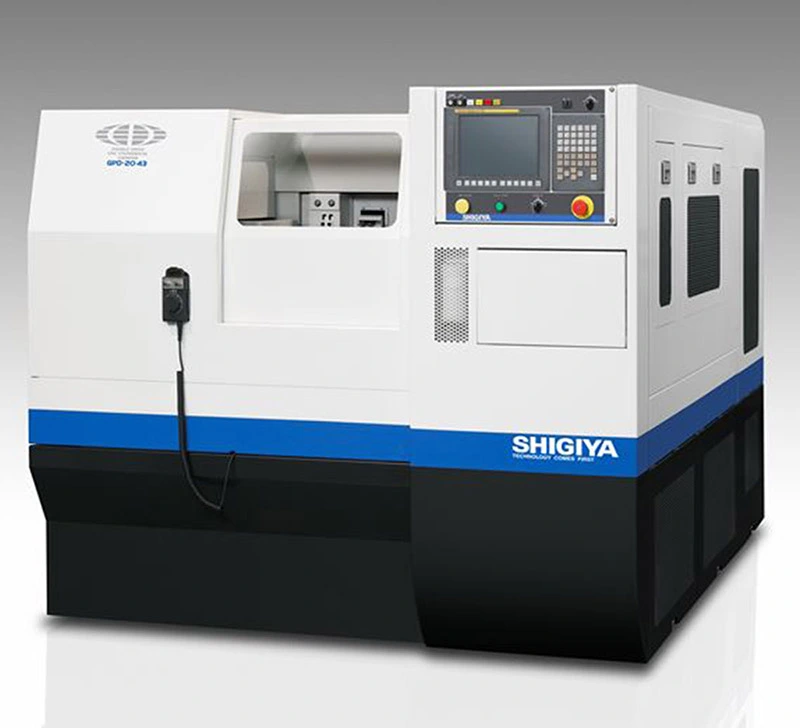

NEW SHIGIYA GPD-20-43  CNC DOUBLE DRIVE CYLINDRICAL GRINDER


SHIGIYA (USA) LTD.’s GPD Double-Drive CNC Cylindrical Grinders feature a completely new design that uses a double center drive system. These grinders are based on the fundamental concepts of no setup required, improved processing accuracy and improved maintenance. The GDP is equipped with NC movable workheads on the left and right sides. The distance between centers can be adjusted without changing the setup to support workpiece lengths between 30 and 430mm. The CBN wheel, in combination with a multi-step sizing in-process gauge, works to achieve consistent processing accuracy with high precision
.
Swing Over Table
7.87"
Distance Between Centers
16.93"
Weight Capacity
44.09 Lbs
Wheel Size OD
11.81"
Wheel Size Width
1.23"
Wheel Spindle
4 HP
Machine Weight
8820 Lbs
