Equipped With

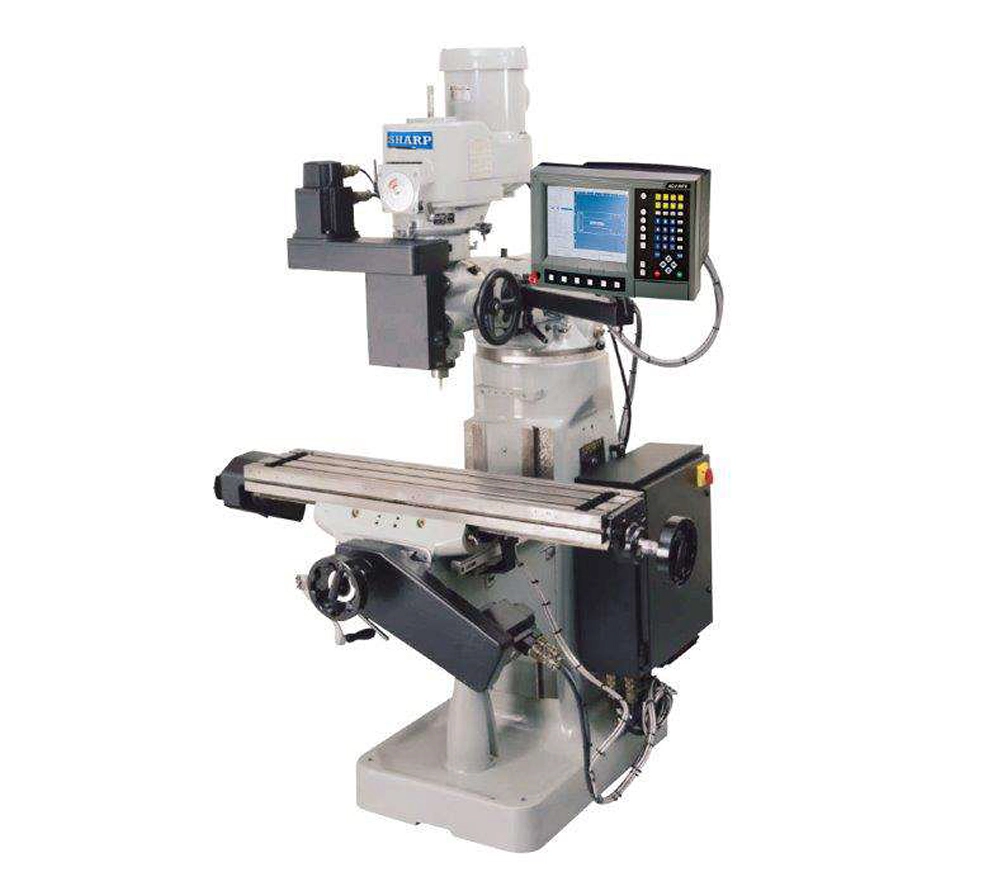

NEW 9" x 42" SHARP MODEL LMV/MP-2 2-AXIS CNC KNEE MILL
Vertical Knee Mill with MILLPWR-G2 2 axes (table, and saddle) CNC system by ACU-RITE.
Digital Servo drive systems for X ,Y and Z axes travel.
Able to perform 3-D contour work.
Precision-ground ball screws with preloaded ball nut assemblies.
3 axis (table, saddle, quill) digital readout system.
Automatic lubrication system.
Safety hand wheels.
Machine construction features same as SHARP Models LMV, LMV-50
MILLPWR-G2 CNC SYSTEM FEATURES
HARDWARE
12.1” flat-panel high resolution display with 3 D graphics, color keypad
Simplified navigation that eliminates multiple menu screens
RS-232 port, USB (2), Ethernet
1.4 GHz processor, 2.5 GB Flash internal storage
Programmable speed (with optional DVS head)
SOFTWARE
User friendly conversational programming format. No prior programming experience is necessary.
Standardized menus make it easy to program common features like lines, arcs, pockets, bolt hole patterns, islands, spirals and ellipses. To add a feature to the program, simply press a function key and then follow the prompts.
Perform complex calculations to solve geometry and trigonometry problems.
Edit individual steps or merge whole or partial programs already created by using functions such as:
Mirror/repeat/rotate, Explode, Reverse step, Reverse path, Change steps, Delete steps, Copy/move steps.
Import geometry directly from a CAD file using the MILLPWR’s DXF file input-for faster programming and fewer errors.
Preview each step with immediate-part- view graphics – the console automatically shows a graphic representation of each step once it is created in a program.
Program to mill at or to a specified depth automatically.
Able to import and run G-code files from CAD/CAM programs to machine full 3-D contoured parts.
Automatically control spindle’s speed and/or direction of the machine (machine has to be equipped with the DVS head-an optional item, plus the programmable speed option).

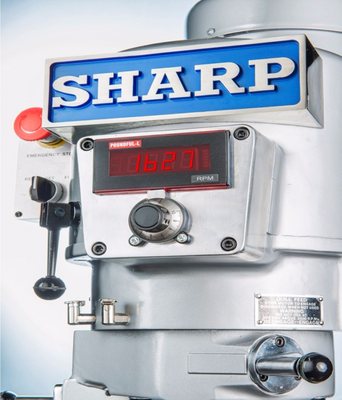

Why DVS (Digital Variable Speed) head ? (Optional)
High reliability with fewer moving parts than regular variable speed head
Programmable speed (must include MILLPWR-G2 programmable speed option)
Dynamic brake, Low voltage control, Large Digital rpm display
Dependable Inverter Drive System
Machine can run on single phase or 3 phase electricity
Safety device prevents machine from self starting after power failure or after emergency stop being pushed
3,200
Working surface
9”x 42”
T-slot number, size
3, 5/8”
Capacity
Table travel
11”x 25”
Ram travel
12”
Quill travel; z-axis
5”
Knee travel
16”
Spindle to column
6-3/4"- 18-1/2"
Spindle to nose to table
2- 1/8”-18”
Spindle
Motor
3 HP
Wiring voltage
220/440V, 3 phase, 60 H
Taper
R-8
Speed (vari speed)
60-4,500 RPM
Quill feed (IPR)
0.0015, 0.003, 0.006”
Accuracy
Head swivel
360°
Head tilt; left-to-right
45°
Head tilt; up-and-down
45°
Dimensions and Weight
Floor area
7" x 6.5"
Net weight (lbs)
Total Power Consumptions
220V
3KVA/15 amps
440V
3KVA/7.5 amps
STANDARD ACCESSORIES:
Hard-chrome ways
Front and rear way covers
Automatic Lube System
Tool Kit includes: Machine manual, Half nut wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip screw driver, Flat head screw driver, Oil can, Grease Gun, Rear way cover bracket, Pin for indicator, Can of paint
3,200
3,700
LMV/MP-2
TMV/MP-2
Table
Working surface
9”x 42”
10”x 50”
T-slot number, size
3, 5/8”
3, 5/8”
Capacity
Table travel
11”x 25”
15.5” x28”
Ram travel
12”
18.5”
Quill travel; z-axis
5”
5”
Knee travel
16”
15.3”
Spindle to column
6-3/4"- 18-1/2"
9.8”-28.3”
Spindle to nose to table
2- 1/8”-18”
"1.6-16.9"
Spindle
Motor
3 HP
3 HP
Wiring voltage
220/440V, 3 phase, 60 H
220/440V, 3 phase, 60 H
Taper
R-8
R-8
Speed (vari speed)
60-4,500 RPM
60-4,500 RPM
Quill feed (IPR)
0.0015, 0.003, 0.006”
0.0015, 0.003, 0.006”
Accuracy
0.0002" TIR
Head swivel
360°
Head tilt; left-to-right
45°
90°
Head tilt; up-and-down
45°
45°
Dimensions and Weight
Floor area
7" x 6.5"
70" x 75" x 88"
Net weight (lbs)
Total Power Consumptions
220V
3KVA/15 amps
3KVA/15 amps
440V
3KVA/7.5 amps
3KVA/7.5 amps
3,200
3,700
LMV/MP-2
TMV/MP-2
Table
Working surface
9”x 42”
10”x 50”
T-slot number, size
3, 5/8”
3, 5/8”
Capacity
Table travel
11”x 25”
15.5” x28”
Ram travel
12”
18.5”
Quill travel; z-axis
5”
5”
Knee travel
16”
15.3”
Spindle to column
6-3/4"- 18-1/2"
9.8”-28.3”
Spindle to nose to table
2- 1/8”-18”
"1.6-16.9"
Spindle
Motor
3 HP
3 HP
Wiring voltage
220/440V, 3 phase, 60 H
220/440V, 3 phase, 60 H
Taper
R-8
R-8
Speed (vari speed)
60-4,500 RPM
60-4,500 RPM
Quill feed (IPR)
0.0015, 0.003, 0.006”
0.0015, 0.003, 0.006”
Accuracy
0.0002" TIR
Head swivel
360°
Head tilt; left-to-right
45°
90°
Head tilt; up-and-down
45°
45°
Dimensions and Weight
Floor area
7" x 6.5"
70" x 75" x 88"
Net weight (lbs)
Total Power Consumptions
220V
3KVA/15 amps
3KVA/15 amps
440V
3KVA/7.5 amps
3KVA/7.5 amps
3,200
3,700
LMV/MP-2
TMV/MP-2
Table
Working surface
9”x 42”
10”x 50”
T-slot number, size
3, 5/8”
3, 5/8”
Capacity
Table travel
11”x 25”
15.5” x28”
Ram travel
12”
18.5”
Quill travel; z-axis
5”
5”
Knee travel
16”
15.3”
Spindle to column
6-3/4"- 18-1/2"
9.8”-28.3”
Spindle to nose to table
2- 1/8”-18”
"1.6-16.9"
Spindle
Motor
3 HP
3 HP
Wiring voltage
220/440V, 3 phase, 60 H
220/440V, 3 phase, 60 H
Taper
R-8
R-8
Speed (vari speed)
60-4,500 RPM
60-4,500 RPM
Quill feed (IPR)
0.0015, 0.003, 0.006”
0.0015, 0.003, 0.006”
Accuracy
0.0002" TIR
Head swivel
360°
Head tilt; left-to-right
45°
90°
Head tilt; up-and-down
45°
