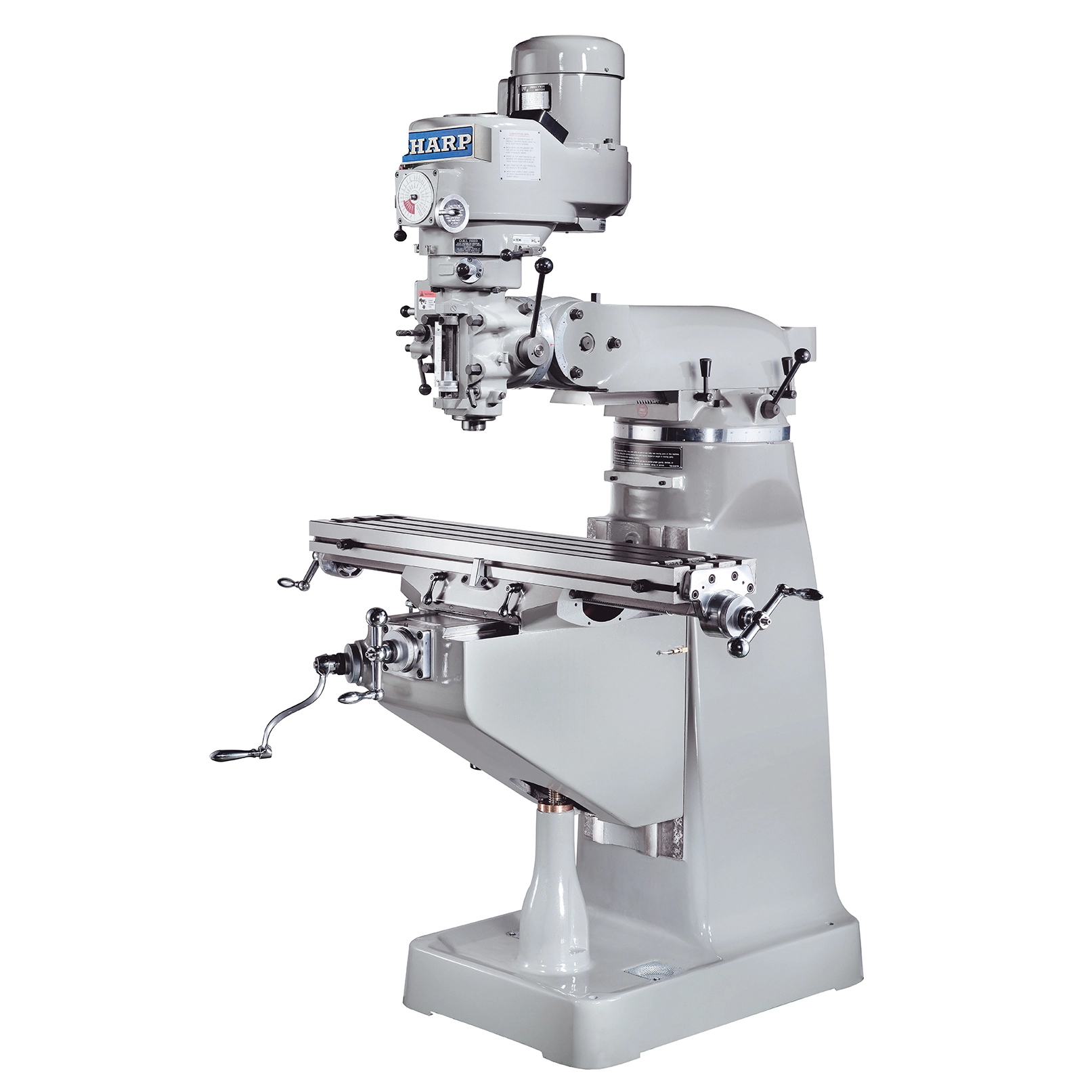

NEW 9" x 50" SHARP MODEL LMV-50 VERTICAL KNEE MILL
These vertical knee mills are equipped with vari-speed drive. The dove tail ways chromed, and the box ways are hardened and ground.
Head
To dissipate heat in the 3 HP motor driven head, a pair of high output fans is installed. This allows the machine to work demanding jobs for extended periods without damaging the motor, belts and bearings. A unique SHARP feature.
The motor shaft and Vari Drive pulleys are dynamically balanced, then hard-chromed this allow a vibration free milling even at high speed
Since the Vari-speed drive system is operated by sliding the Vari Drive pulley up and down the motor shaft. The motor shaft is therefore chrome-plated, and has an oil channel that is fed by a grease fitting on the lower end for self-lubricating purpose. This ensures the sliding motion is trouble free at all times. A unique SHARP feature.
The motor shaft that drives the pulley and the spindle is subject to a lot of lateral stress. A roller bearing is installed for the lower support of the motor shaft. A unique SHARP feature.
Beside swiveling 90 degree side to side, the head can also swivel up and down by virtue of a knuckle joint design. The new design developed by Sharp uses 6 bolts, 3 each side, that fitted into a circular T-slot milled at the inside of the over arm and secured by nuts from the outside. It secured the head tightly and offered high accuracy in milling operations.
A matched pair of super-precision ABEC-7 angular contact bearings supports the spindle. The quill is CNC-ground to a mirror finish, and then chromed to fit the housing. Together, they insure spindle run out of no more than 0.0004” TIR- the best in the industry.
Column, Table and Knee
Certified MEEHANITE castings are used for superior rigidity and better dampening of vibrations
Table and saddle backlash is controlled by a double-nut design that keeps the feed screw in contact with a pair of bronze nut at all times. A unique SHARP feature.
The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw, eliminating endplay for precisely controlled lateral movement.
The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw, eliminating endplay for precisely controlled lateral movement.
Instead of hand scraping the top of the knee ways for oil retention, the matching underside of the saddle is hand-scraped. This extra step avoids having chips and dirt embedded in the knee ways and damages the sliding area.
"Bridgeport-style" vertical knee mill
Working surface
9” x 50"
T-slot number, size
3, 5/8"
CAPACITY
Table travel; x-axis
37”
Saddle travel; y-axis
12"
Ram travel
12"
Quill travel (Z-axis)
5"
Knee travel
16"
Spindle to column (min-max)
6 3/4 - 18-1/2"
Spindle to nose table
2 1/8” - 18"
SPINDLE
Motor
3 HP
Wiring voltage
220/440v, 3 phase, 60 Hz
Taper
R-8
Speed (vari-speed)
60-4,500 RPM
Quill feed (IPR)
0.0015”, 0.003”, 0.006"
Head swivel
360º
Head tilt; right-to-left (each way)
45º
Head tilt up-and-down (each way)
45º
DIMENSIONS AND WEIGHT
Floor area (w x d)
7’ x 6.5'
Net weight
2,400 Lbs.
STANDARD ACCESSORIES:
Hard-chromed ways
One-shot lube system
Front and rear rubber way covers
Tool kit
OPTIONAL ACCESSORIES:
Digital Variable Speed (DVS) head
Power feeds for table, saddle and knee
R-8 collet set
Milling vise
Clamping kit
Coolant system with chip pan
Right angle milling attachment
Riser block (4”, 7”)
Digital Readout systems
Power drawbar
Auto lube system
Halogen work light
LMV-49DVS
TABLE
Working surface
9” x 49"
T-slot number, size
3, 5/8"
CAPACITY
Table travel (X,Y,Z)
36.6" x 12" x 5"
Ram travel
12"
Knee travel
16"
Spindle to column (min-max)
6 3/4" - 18-1/2"
Spindle to nose table
2 1/8” - 18"
SPINDLE
Motor
3 HP
Spindle Nose Taper
R-8
Digital Variable Speed
60 ~ 4,500 RPM
Quill feed (IPR)
0.0015”, 0.003”, 0.006"
Head swivel
360º
Head tilt; right-to-left (each way)
45º
Head tilt up-and-down (each way)
45º
DIMENSIONS AND WEIGHT
Floor area (w x d x h)
52" x 55" x 82.7"
Net weight
2280 Lbs.
LMV-49DVS
TABLE
Working surface
9” x 49"
T-slot number, size
3, 5/8"
CAPACITY
Table travel (X,Y,Z)
36.6" x 12" x 5"
Ram travel
12"
Knee travel
16"
Spindle to column (min-max)
6 3/4" - 18-1/2"
Spindle to nose table
2 1/8” - 18"
SPINDLE
Motor
3 HP
Spindle Nose Taper
R-8
Digital Variable Speed
60 ~ 4,500 RPM
Quill feed (IPR)
0.0015”, 0.003”, 0.006"
Head swivel
360º
Head tilt; right-to-left (each way)
45º
Head tilt up-and-down (each way)
45º
DIMENSIONS AND WEIGHT
Floor area (w x d x h)
52" x 55" x 82.7"
Net weight
2280 Lbs.
LMV
LMV-50
TABLE
Working surface
9” x 42"
9” x 50"
T-slot number, size
3, 5/8"
3, 5/8"
CAPACITY
Table travel; x-axis
30"
37”
Saddle travel; y-axis
12"
12"
Ram travel
12"
12"
Quill travel (Z-axis)
5"
5"
Knee travel
16"
16"
Spindle to column (min-max)
6 3/4" - 18-1/2"
6 3/4 - 18-1/2"
Spindle to nose table
2 1/8” - 18"
2 1/8” - 18"
SPINDLE
Motor
3 HP
3 HP
Wiring voltage
220/440v, 3 phase, 60 Hz
220/440v, 3 phase, 60 Hz
Taper
R-8
R-8
Speed (vari-speed)
60-4,500 RPM
60-4,500 RPM
Quill feed (IPR)
0.0015”, 0.003”, 0.006"
0.0015”, 0.003”, 0.006"
Head swivel
360º
360º
Head tilt; right-to-left (each way)
45º
45º
Head tilt up-and-down (each way)
45º
45º
DIMENSIONS AND WEIGHT
Floor area (w x d)
7’ x 6.5'
7’ x 6.5'
Net weight
2,400 Lbs.
2,400 Lbs.
LMV
LMV-50
TABLE
Working surface
9” x 42"
9” x 50"
T-slot number, size
3, 5/8"
3, 5/8"
CAPACITY
Table travel; x-axis
30"
37”
Saddle travel; y-axis
12"
12"
Ram travel
12"
12"
Quill travel (Z-axis)
5"
5"
Knee travel
16"
