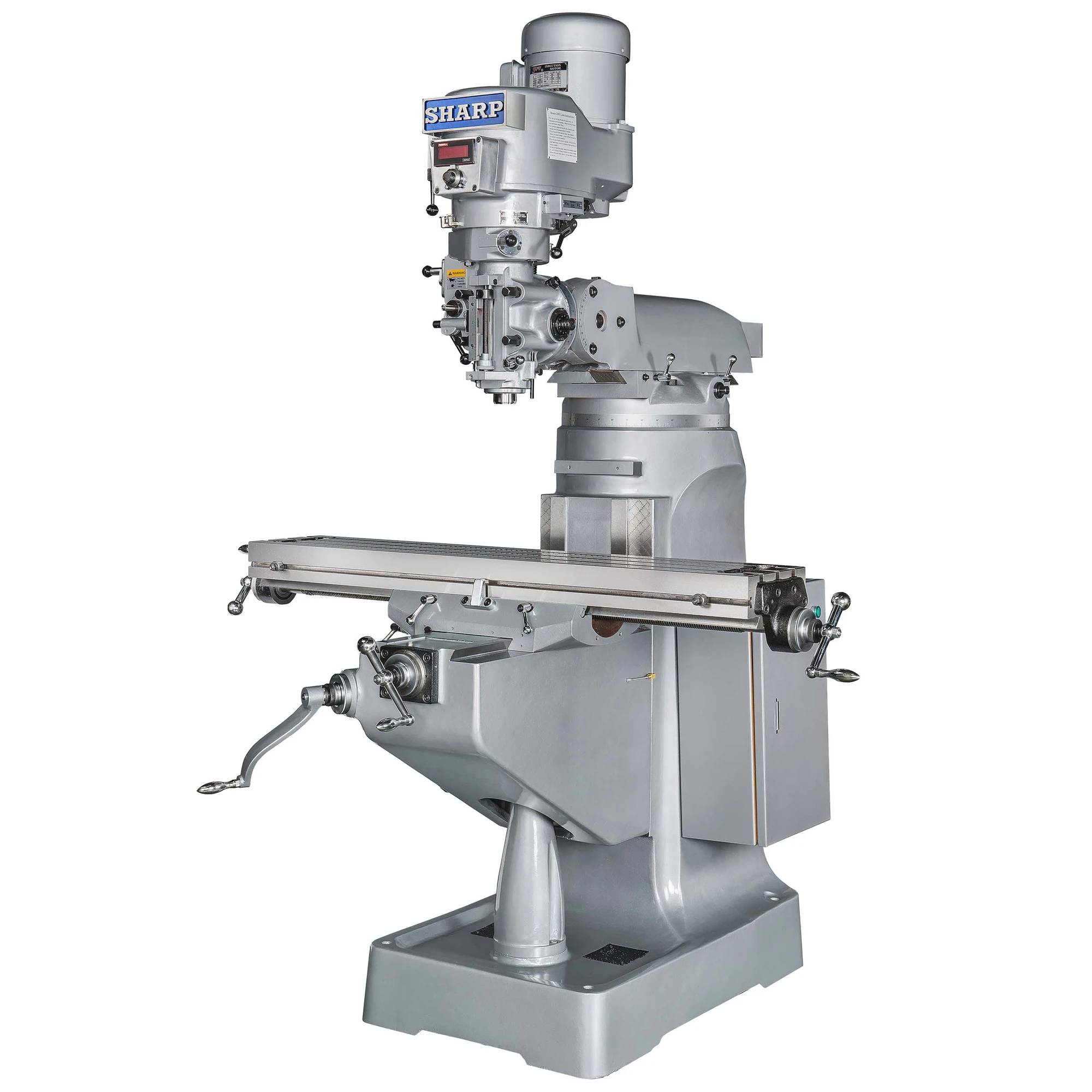

NEW 9" x 49" SHARP MODEL LMV-49DVS VERTICAL KNEE MILL
These vertical knee mills are equipped with vari-speed drive. The dove tail ways chromed, and the box ways are hardened and ground.
Features, Function, & Benefits:
ISO 9002 Certified:
Quality Up To World Industry Standards.
Meehanite Casting:
Highest Grade Of Casting Possible.
A Pair Of Precision ABEC-7 Angular Contact Bearings To Support Spindle.  The Quill Is Ground And Chromed To Fit The Housing:
This Insures A Spindle Run out Of .0004” T.I.R.
Motor Shaft And Varidrive Pulleys Are Dynamically Balanced, Then Chromed For A Flawless Fit, Ground Ribs On Inside Diameter:
For Smooth Speed Changes.
Motor Shaft Has An Oil Channel In The Center That Is Fed By A Grease Fitting On The Lower End:
To Keep Vari-Drive Pulley Moving Smoothly On The Shaft.
This LMV-49DVS Mill Uses A Roller Bearing For The Lower Support Of The Shaft: It Ensures Proper Loading, Support And Alignment It Also Prevents The Shaft From Being Distorted By The Tension Of The Belt:
For Quiet, Accurate Operation At Any Speed For Years And Years.
One Shot Lubrication System:
For Lubrication Of Ways And Lead Screws. (X,Y And Z-Axis)
Hand Scraped Saddle And Knee:
For Better Oil Retention.  It Avoids Having Chips And Dirt Embed In The Knee And Damage The Sliding Surface.
Oil Groove Are Milled:
For Maximum Lubrication On All Wear Areas.
Table And Saddle Backlash Is Controlled By Double Nut Design:
Keeps Lead Screw In Contact With Bronze Nuts An All Times To Keep Backlash At .0008” Within 20”.
Table And Saddle Are Mounted With Thrust Bearings That Are Pre Loaded:
Eliminating Endplay For Precisely Controlled Lateral Movement.
Patient Knuckle Design Uses 6 Bolt 3 Per Side, Securing Them From The Outside:
This Method Locks The Head Securely Resulting In Better Accuracy And Performance.


LMV-49DVS
TABLE

Working surface
9” x 49"
T-slot number, size
3, 5/8"
CAPACITY

Table travel (X,Y,Z)
36.6" x 12" x 5"
Ram travel
12"
Knee travel
16"
Spindle to column (min-max)
6 3/4" - 18-1/2"
Spindle to nose table
2 1/8” - 18"
SPINDLE

Motor
3 HP
Spindle Nose Taper
R-8
Digital Variable Speed
60 ~ 4,500 RPM
Quill feed (IPR)
0.0015”, 0.003”, 0.006"
Head swivel
360º
Head tilt; right-to-left (each way)
45º
Head tilt up-and-down (each way)
45º
DIMENSIONS AND WEIGHT
Floor area (w x d x h)
52" x 55" x 82.7"
Net weight
2280 Lbs.
STANDARD ACCESSORIES:
DVS Head
Hard-chromed ways
Precision Ground and Flaked Table
Unique Double Nut Backlash System
Double Fan Cooling System
Cutler Hammer On/Off Switch
One-shot lube system
Front and rear rubber way covers
Tool kit
OPTIONAL ACCESSORIES:
440 V Transformer - 3HP
Auto Lube Pump w/ 2 adjustments
6" Kurt Vise with Swivel Base D688
Righ Angle Milling Attachment with Arbor
Drill Chuck & Drill Arbor
Coolant system with chip pan
Maxi Torque Rite Power Draw Bar
Riser block (4”, 7”)
R-8 Collet Set of 11 (1/8"-3/4" by 1/16")
Clamping Kit
Halogen work light
Spare Kit
LMV-49DVS
TABLE

Working surface
9” x 49"
T-slot number, size
3, 5/8"
CAPACITY

Table travel (X,Y,Z)
36.6" x 12" x 5"
Ram travel
12"
Knee travel
16"
Spindle to column (min-max)
6 3/4" - 18-1/2"
Spindle to nose table
2 1/8” - 18"
SPINDLE

Motor
3 HP
Spindle Nose Taper
R-8
Digital Variable Speed
60 ~ 4,500 RPM
Quill feed (IPR)
0.0015”, 0.003”, 0.006"
Head swivel
360º
Head tilt; right-to-left (each way)
45º
Head tilt up-and-down (each way)
45º
DIMENSIONS AND WEIGHT
Floor area (w x d x h)
52" x 55" x 82.7"
Net weight
2280 Lbs.
