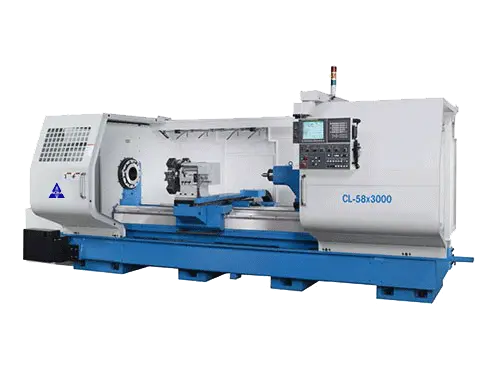

NEW - ACRA CL-58A (35"X120") HOLLOW SPINDLE CNC FLAT BED LATHE WITH FANUC OITD CONTROLLER
Standard Equipment:
• 25 HP (cont.)/ 30 HP (30 min), AC Spindle.
• Motor (Fanuc), 220V (only), 3 Phase, 60 Cycle.
• Fanuc OiTD Controller with Manual Guide i.
• 10.4” LCD Monitor.
• 22” Bed Width.
• V8 or H4 Turret.
• Rear Chip Conveyor with Chip Cat.
• Tailstock with Built-in Center.
• Tailstock Movable by Engaging with Carriage.
• Dead Center for Tailstock MT#5.
• Coolant System.
• Halogen Light.
• Two Chucks Ready Spindle.
• Auto Lubrication.
• Moving Door & Splash Guard.
• Foundation Pads & Leveling screws.
• Toolbox & Tool.
• Operation, Electric, Controller and Parts Manual.
• Turret Tooling Package.
Swing Over Bed: 35-3/8”
Swing Over Cross Slide: 20-7/16”
Distance Between Centers: 120”
Maximum Cutting Diameter: 20-7/16”
Width of Bed: 22”
Head Stock:
Spindle Bore: 7.1”
Spindle Nose Type: A2-15
Spindle Speeds: 3 – 1,200 RPM
Number of Speed Ranges: 2 Hi/Lo Selection: Auto Shift
Turret Selection:
Standard: V8 or H4
Spindle Travels:
X – Axis: 20-7/16”
Z – Axis: 120”
Rapid Travel X/Z: 400 IPM
Servo Motors:
X-Axis: 4 HP
Z-Axis: 5.3 HP
Ball Screw: X-Axis (1-7/16”,P-6) & Z-Axis (2”, P-12)
Tail Stock:
Quill Diameter: 5-7/8”
Taper: MT#5
Quill Travel: 5-7/8”
Main Motor: 30 HP (30 Min)
Voltage: 220V ~ 3 Phase
Weight 23,800 lbs
Dimensions 244 × 117 × 79 in
