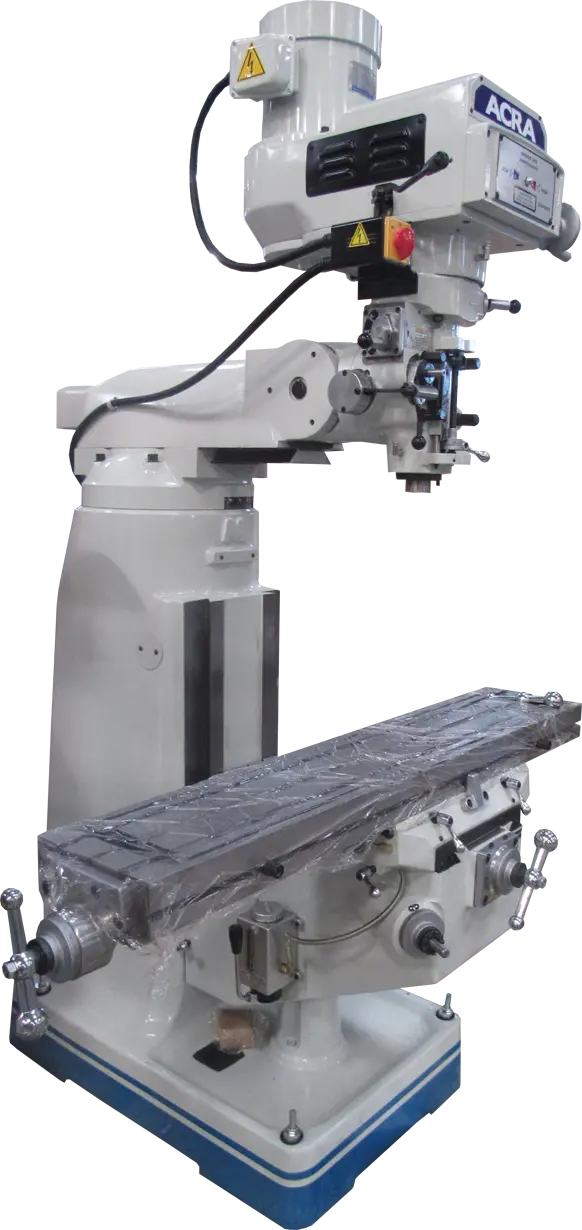

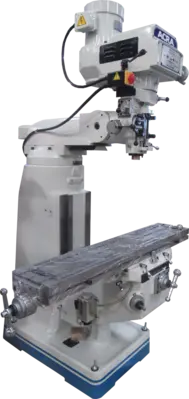

ACRA MODEL 2V VERTICAL VARIABLE SPEED MILLING MACHINE
• Machine base, knee and table are made by MEEHANITE cast iron construction.
• Slideways are hardened and precision ground, and the X,Y axis coated with Turcite-B.

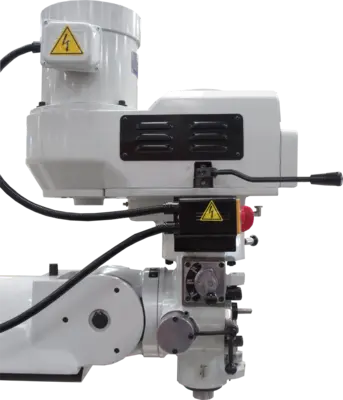

• Milling head can be tilted 90 degrees either right or left side.
• The X, Y, Z axis are dovetail way.
• The X, Y, Z axis are transmitted by precision feed lead screw with double nut.
Specifications:
Table Size: 9” x 49”
Longitudinal Travel (X-Axis): 30”
Cross Travel (Y-Axis): 12-1/2”
Knee Travel (Z-Axis): 16”
Overarm Travel: 16-1/4”
Number of T-Slots: 3
T-Slot Size and Centers: 5/8”, 2-1/2”
Maximum Weight of Workpiece: 550 Lbs.
Drilling Capacities:
Cast Iron: ¾”
Steel: 5/8”
Face Milling: 3”
End Milling: ¾”
Spindle Taper: R8 or NT-30
Diameter of Quill: 3-3/8”
Collet Capacity: 1/8″ ~ 5/8″
Number of Speeds: Variable
Spindle Speeds (RPM): 60-4,200
Spindle Feeds: .0015/.0003/.0006 inch/rev.
Spindle Travel: 5”
Spindle to Table: 2-3/4” ~ 17-1/2”
Spindle to Column: 5” ~ 17-3/8”
Horsepower: 2 HP
Voltage: 230V or 460V AC only
Weight 2300 lbs
Dimensions 66 × 63 × 86 in
Standard Equipment:
• One-piece draw bar for Spindle
• Precision lead screws on X, Y axis
• Front & back dust cover
• Turcite-B on X/Y axis
• One-shot Lubrication System
• Safety handles on X/Y/Z axis
• Work lamp
• Hand tools & box
• Manual & Parts list
