NEW ACRA BS330SSAV

Equipped With

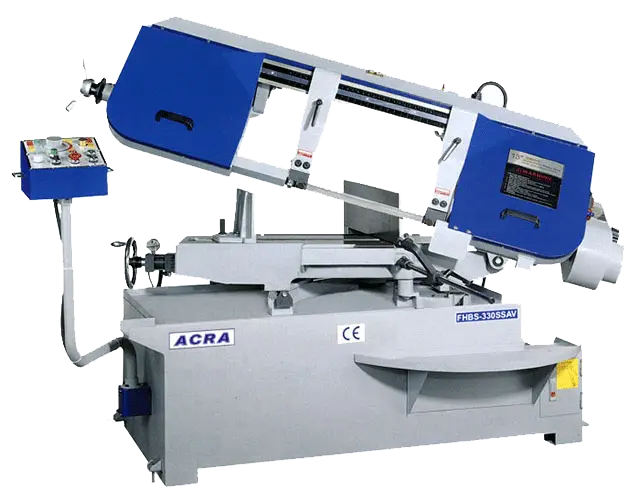

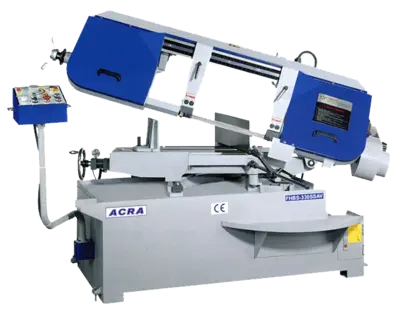

12" X 19" ACRA MODEL BS330SSAV SEMI-AUTO VARIABLE SPEED MITERING HORIZONTAL BANDSAW WITH HYDRAULIC VISE
• Semi-Automatic operation.
• Heavy Cast Iron Construction.
• Standard with Variable Speed, Semi-Auto operation, Mitering and Hydraulic Vise.
• Large Hand wheel And Build-In Gauge for Easy Blade Tension.
• Built in Coolant and Coolant is Distributed Through the Blade Guides.
• Carbide Tungsten Blade Guide Supported by Bridge Type Portable Frame.
• Blade Brush is Build-In and Self Propelled.
• Quick Positioning Clamping Vise with Fully Adjustable Jaws the Rapid Action Vice.
• Large Hand wheel.
• Built in Gauge for Easy Blade Tension.
• Fully Adjustable Hydraulic Down feed.
• Low Voltage Control w/Overload Protection.
• Centralized Control Panel.
Specifications:
90 Degree:
     Round:                          13”
     Rectangle:                     11-1/2” x 18-7/8”
45 Degree:
     Round:                          10-1/2”
     Rectangle:                     11” x 10-1/2”
Blade Size:                         1.25”x 0.035”x 161.5”
Blade Speed:                      92/132/184/250 FPM
Main Motor:                       3 HP
Voltage:                              230/460V AC~3 Phase
Weight                               1892 lbs
Dimensions                        90 × 40 × 65 in
Standard Equipment:
• Carbide Tungsten Blade Guide.
• Built in Coolant.
• Self-Propelled Built-In Blade Brush.
• Quick Positioning Clamping Vise w/Fully Adjustable Jaws.
• Removable Chip Tray.
• Hydraulic Vise.
• Mitering.
