Equipped With

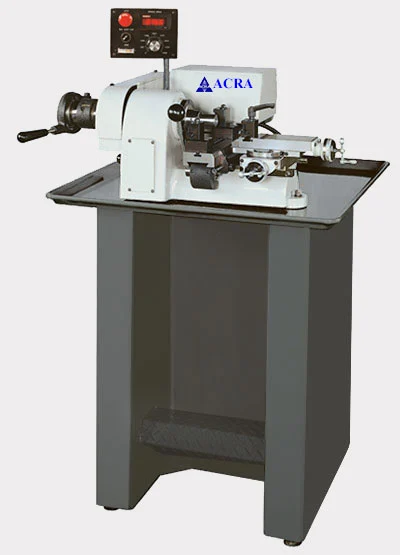

ACRA 27EVS (AFL) HIGH PERFORMANCE ELECTRONIC VARIABLE SPEED FINISHING LATHE
• 9″ Swing Over Bed.
• 9″ Length of Bed From Face To Spindle.
• 1-1/16″ 5C Collet Capacity.
• Fast Lever Collet Chucking.
• Hardened and Ground Precision Alloy Tool Steel Bed Way.
• Preloaded Angular Contact Ball Bearing Spindle.
• Spindle Speed 0~4,000 RPM.
• Quick Change Spindle Speeds.
• 1 HP Frequency Controlled Motor.
• Compact.
• Welded Steel Pedestal.
• High Accuracy Spindle.
• Precision Steel Bed Ways.
• Fast Setup.
• Easy Operation.
• Wide Chip Pan.
• Comfortable Footrest.Specifications:
Spindle Capacity:
With Chuck: 5”
With Expanding Collets: 3”
With Round 5C Collets: 1-1/16”
With Hexagon 5C Collets: 7/8”
With Square 5C Collets: ¾”
With Step Chucks: 1-1/16”~6”
Spindle Nose Diameter: 2-3/16”
Hole Thru Spindle: 1-1/4”
Spindle Nose I.D./O.D.: 5C(10 Degrees)/4 Degrees x Taper
Spindle RPM: Variable 0~4,000 RPM
Spindle Motor: 1 H.P.
Bar Stock Diameter (5C Collet): 1-1/16”
Swing Over Bed: 9”
Voltage: 230V AC/ 1 PH/ 3 PH
Weight 900 lbs
Dimensions 36 × 36 × 55 in
Standard Equipment:
• 5-C Collet Nose with Lever Operated Collet Closer.
• 1 Hp 230 motor with American made vector drive giving spindle speeds to 4,000 rpm.
• Cabinet Base.
• Electronic Speed Control with LED Spindle Speed Display.
• Hardened Steel Dovetail Style bed.
• Coolant Pump.
