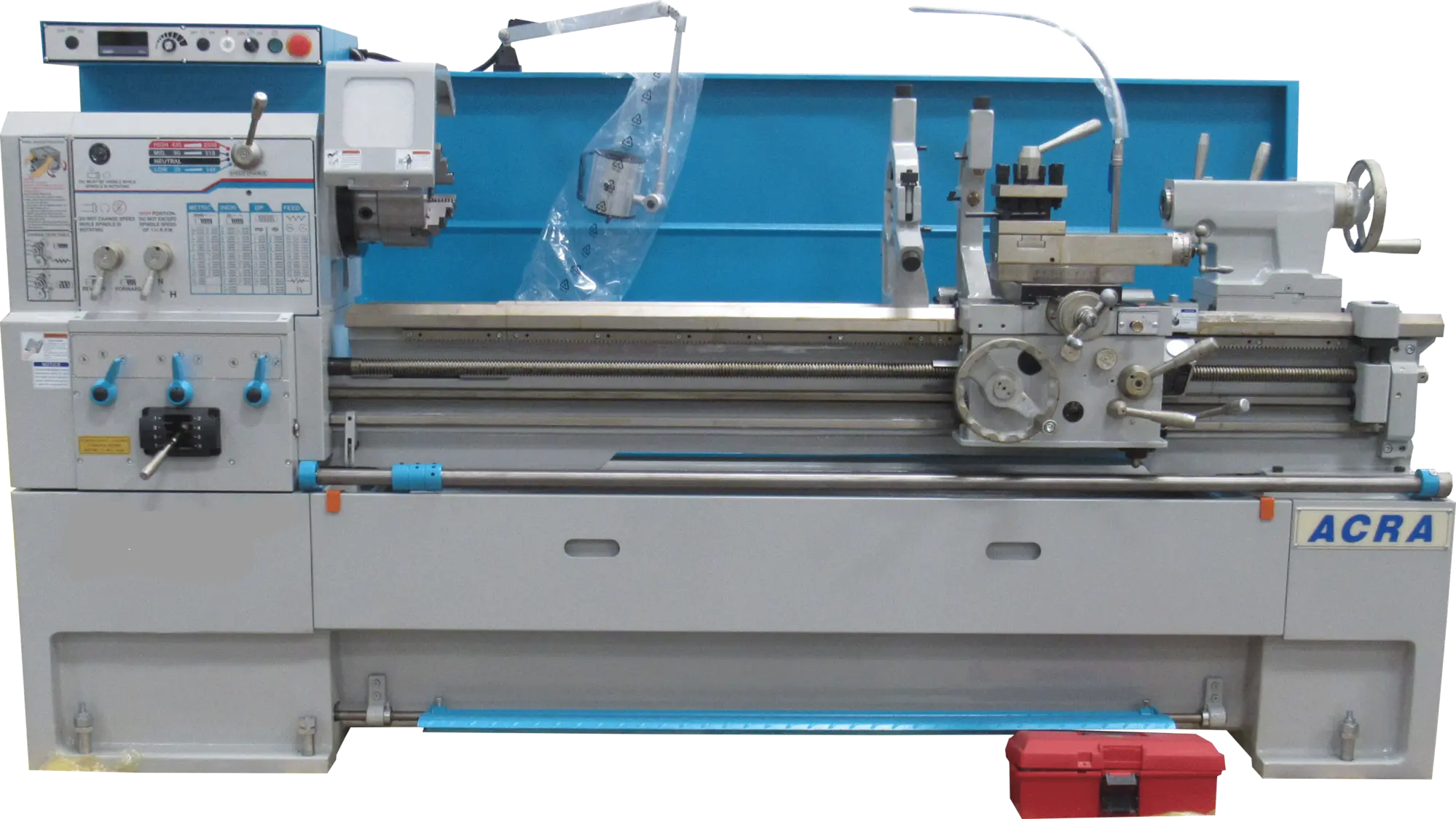

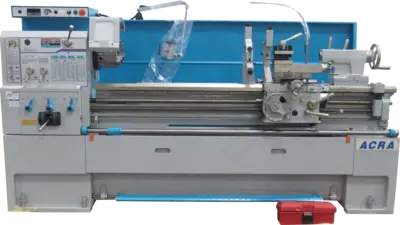

ACRA 2190TVS (2-1/2" BORE) PRECISION VARIABLE SPEED GAP BED ENGINE LATHE
Capacity: 21″/28″ x 86″
Swing Over Bed: 21-3/8″
Swing Over Cross Slide: 15-1/4″
Swing In Gap: 28-3/4″
Distance Between Centers: 86.6″
Bed Width: 12-1/2″
Spindle Nose: D1-6
Spindle Bore: 2-1/2″
Taper of Spindle: MT NO.5
Spindle Speeds Steps: 3
Spindle Speeds Range: 30 ~ 2,300 RPM
Cross Slide Travel: 11.81″
Compound Slide Travel: 5.9″
Inch Threads: 2 ~ 72 TPI
Metric Threads: 0.2 ~ 14 mm
Longitudinal Feeds: 0.0015″ ~ 0.04″/rev
Cross Feeds: 0.00075″ ~ 0.02″/rev
Quill Diameter: 2.67″
Quill Travel: 6″
Quill Taper: MT NO.4
Spindle Drive Motor: 10 H.P.
Voltage: 230V AC/ 1 PH / 3 PH
Weight 5700 lbs
Dimensions 146 × 46 × 73 in
Standard Equipment:
12″ 3-Jaw Chuck
Full Length Splash Guard
Inverter Controlled Motor
16″ 4-Jaw Chuck
Coolant System
Centers
Face Plate
Steady/Follow Rest
4 Way Tool Holder
Center Sleeve
Foot Brake
Chuck Guard
Halogen Light
2 Speed Tailstock
