Equipped With

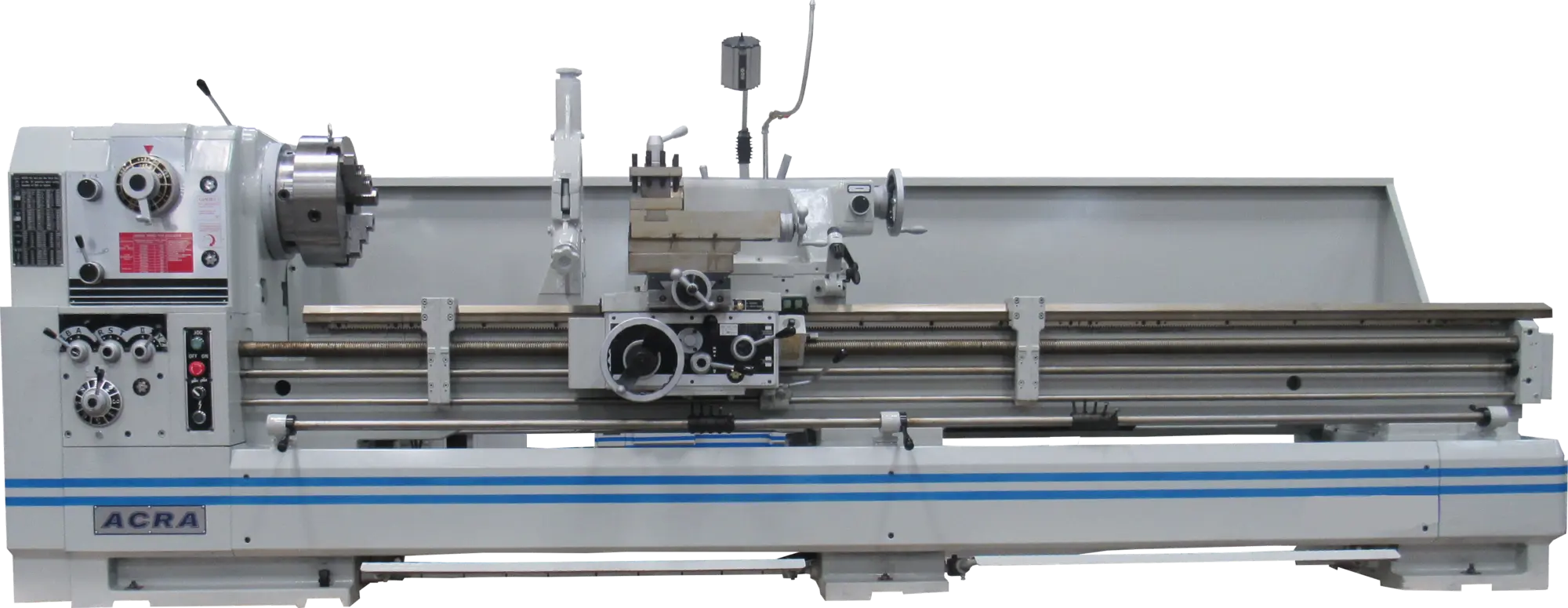

26" X 160" ACRA MODEL 26160ACH PRECISION GAP BED ENGINE LATHE
MEEHANTIE CAST IRON, VIBRATION STRESSES RELIEVED.
• INDUCTION HARDENED (HS70 DEGREE) AND PRECISION GROUND.
• PRECISION HAND SCRAPED REMOVABLE GAP.
• FOOT BRAKE.
Universal Gear Box:
• OIL BATH LUBRICATION.
• HEAT-TREATED GEARS.
• INCH/METRIC/MODULE/DIAMETRICAL THREADS.
• OUTPUT SHAFT IS DESIGNED WITH SAFETY PIN.
Apron and Saddle:
• MANUAL AND AUTOMATIC LUBRICATION SYSTEM-OIL DISTRIBUTOR ADJUSTED TO LUBRICATING BED WAYS AND CROSS SIDE OR BOTH.
• OVERLOAD PROTECTION DEVICE.
• CROSS SLIDE IS HARDENED AND PRECISION GROUND.
• CROSS SLIDE SCREWS ARE HARDENED AND OIL BATHED.
• FORWARD-OFF-REVERSE LEVER.
• TOP AND SADDLE SLIDE LOCKING SYSTEM.
• T-SLOT COMPOUND FOR AMERICA AREA.
Spindle:
• SUPPORTED BY 3 PRECISION P-GRADE TAPER ROLLER BEARINGS.
• DYNAMICALLY BALANCED, HARDENED AND PRECISION GROUND.
• ACH-2200 SERIES-D1-11 SPINDLE NOSE, SPINDLE HOLE 4.09″
Headstock:
• ALL GEARS MADE BY CHROMIUM MOLYBDENUM STEEL AND SEGMENTATION TREATED AND PRECISION GROUND.
• FORCED LUBRICATION SYSTEM
Tailstock:
• QUILL MADE BY CHROMIUM MOLYBDENUM STEEL WITH SEGMENTATION AND PRECISION GROUND.
• ACH-2200 SERIES-DIAMETER TAIL STOCK SPINDLE 2.935″ AND SPINDLE TRAVEL 7″.
• TWO SPEED WITH 1:1 AND 1/4:1 CHANGE FEEDS.
Specifications:
Capacity: 26″/35″ x 160″
Swing Over Bed: 26″
Swing Over Cross Slide: 17-1/2″
Swing In Gap: 35-1/8″
Distance Between Centers: 160″
Bed Width: 15-3/4″
Headstock:
Spindle Nose: D1-11
Spindle Bore: 4-1/16″
Taper of Spindle: MT NO.7 x MT NO.5
Spindle Speeds – Steps: 12
Spindle Speeds – Range: 13 ~ 1,200 RPM
Carriage:
Cross Slide Travel: 15-3/4″
Compound Slide Travel: 9-1/2″

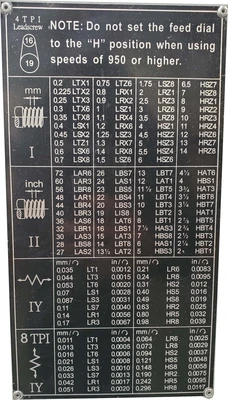

Threads & Feeds:
Inch Threads: 2 ~ 72 TPI
Metric Threads: 0.2 ~ 14 mm
Longitudinal Feeds: 0.0012 ~ 0.039 in/rev
Cross Feeds: 0.0004 ~ 0.0117 in/rev
Tailstock:
Quill Diameter: 2.935″
Quill Travel: 7″
Quill Taper: MT NO.5
Power:
Spindle Drive Motor: 15 H.P./4P
Voltage: 230/460V AC/3 PH
Weight 8450 lbs
Dimensions 217 × 48 × 60 in
Standard Equipment:
MAIN MOTOR 15H.P.
CENTER SLEEVE MT No. 5
DEAD CENTER MT NO. 5 X 2 PCs
LEVELING SCREW AND BLOCK
SERVICE KITS AND TOOL BOX
STEADY REST- (1-5/8″~10″)
DRIVE PLATE- 12″ FOR D1-11 ONLY
COOLANT SYSTEM
MULTI – POSITION LENGTH STOP
FOLLOW REST
STEADY REST 7″~16″
FACE PLATE- 20″
3 JAW SCROLL CHUCK- 15″
4 JAW INDEPENDENT CHUCK- 20″
FULL LENGTH SPLASH GUARD
RAPID TRAVEL
