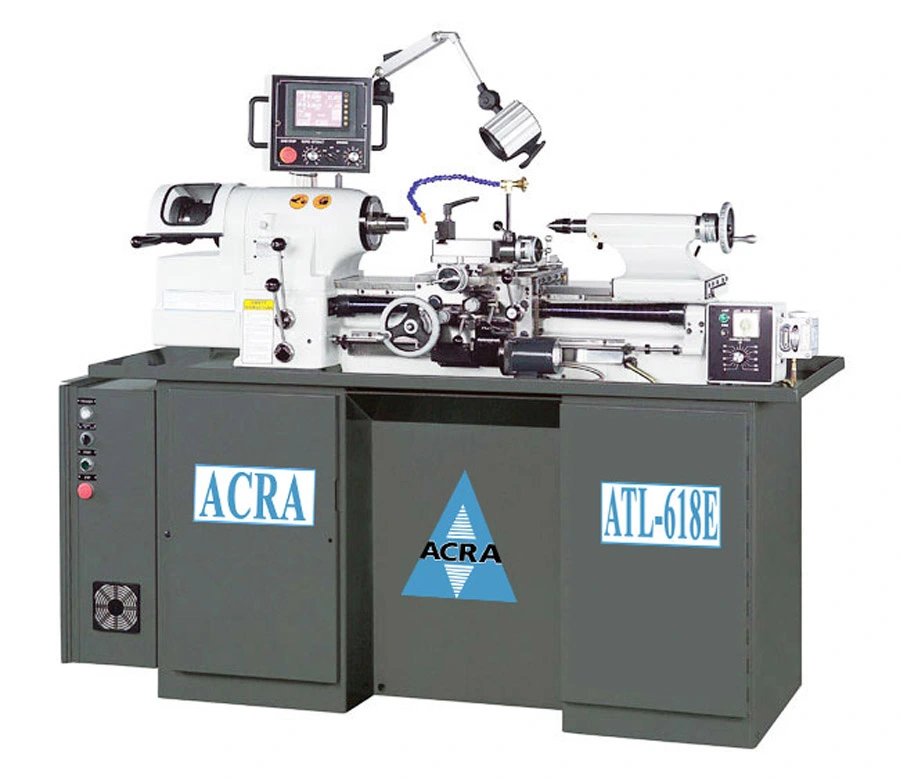

ACRA MODEL 618E PRECISION HIGH SPEED/HIGH ACCURACY TOOLROOM LATHE WITH DIGITAL THREADING CONTROL
The First Choice of Toolmakers!
• Good for pitch and module turning processing without any gears in gearbox. Easy exchange of decimal and GB system, accuracy goes up to three digits after decimal point.
• Digital data shows R.P.M. of spindle and tool infeed to let operator arrange best possible turning process combination.
• Digital data showing electric current for easy checking overload turning.
• Rapid retract function is available for shortened pitch module turning processing time.
• CPU is designed specifically for fast, reliable controls. Interface display monitor by Fuji.
• Made in Taiwan
Specifications:
With Chuck: 6″
With Expanding Collets: 3″
With Round 5C Collets: 1-1/16″
With Hexagon 5C Collets: 7/8″
With Square 5C Collets: 3/4″
With Step Chucks: 1-1/16″ ~ 6″
Spindle Nose Diameter: 2 ~ 3/16″
Spindle Nose I.D./O.D.: 5C (10 Degree)/ 4 Degree Taper
Spindle Speeds (Variable): 0 – 4,000 RPM
Inverter Spindle Motor: 5 HP
Hole Through Spindle: 1-1/4″
Bar Stock Diameter (5C Collet): 1-1/16″
Distance Between Centers: 18″
Swing Over Bed: 11″
Swing Over Carriage: 9″
Swing Over Cross Slide: 6″
Carriage Power Feed Range: 3/16″ ~ 4″
Cross Slide Power Feed Range: 5/16″ ~ 7″
Cross Slide Travel: 6″
Quick-Action Compound Slide Travel: 0.1″
Compound Slide Travel: 3″
Tailstock Spindle Travel: 3-3/4″
Number of Change Threads: 36
Range of Threads: 11 ~ 108 TPI
Voltage: 230V AC/ 1 Phase/ 3 Phase
Weight 2400 lbs
Dimensions 73 × 30 × 67 in
Standard Equipment:
5C Lever Collet Closer
Coolant System
Tool Holder
Special Tools
Halogen Light
Electronic Threading
Direct Reading Spindle Speeds
Digital Read-Out
