Equipped With

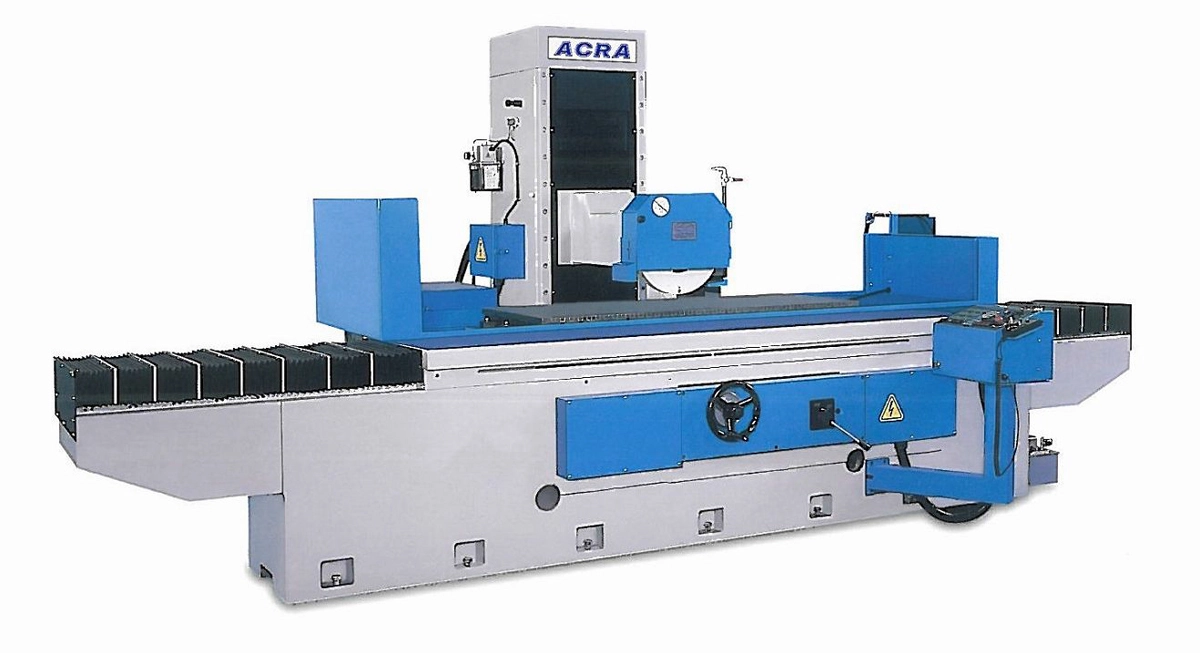

24" X 40" ACRA MODEL ASG-2440HSR NC CONTROLLED FULLY AUTOMATIC 3 AXIS HIGH PRECISION COLUMN TYPE SURFACE GRINDER
• Grinding Area of 24”x 40”.
• Table to Spindle Center is 24”.
• Longitudinal Feed has a Hydraulic drive.
• Cross Slide is has a Double Vee-Ways & Longitudinal Slide has a Flat Vee-Ways.
•.Vertical Feed id driven by AC Servo Motor.
• Cross Feed is driven by Solid State Relay.
• Conversational NC Computer Control.
Specifications:
Grinding Surface of Table: 24” x 40”
Maximum Table Travel: 26” x 45”
Maximum Distance from Spindle to Table: 24”
Table Speed: 5 ~ 25 M/min
Power Cross Feed: 44”/min.
Cross Feed on Hand Wheel (1 rev): 0.2”
Auto Cross Feed Increments: 0.004 ~ 0.8”
Vertical Feed by M.P.G (1 rev): (x1) 0.01”
Rapid Power Hand Elevation: 31”/min.
Wheel Speed: 1,750 RPM
Grinding Wheel Dims: 16” x 2” x 5”
Spindle Motor: 10 HP
Hydraulic Motor: 3 HP
Voltage: 230/460V AC ~ 3 Phase
Weight 15,620 lbs
Dimensions 154 × 90 × 90 in
Standard Equipment:
• Chuck Controller
• NC Parallel Dresser
• Coolant System
• Flange Extractor
• Grinding Wheel
• Diamond Wheel Dresser
• Electromagnetic Chuck
• Wheel Balancing Arbor
• Wheel Flange
• NC Computer Control
• Halogen Work Light
• Leveling Screws & Plates
