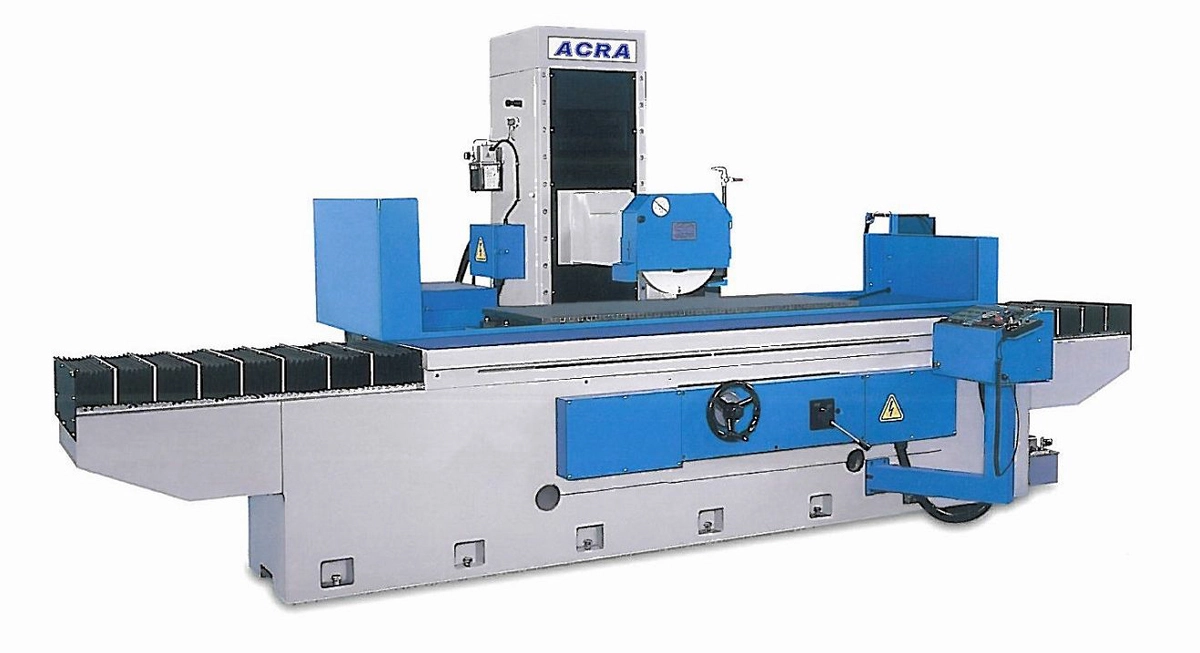

NEW ACRA ASG-2480HSR

Equipped With
24" X 80" ACRA MODEL ASG-2480HSR NC CONTROLLED FULLY AUTOMATIC 3 AXIS HIGH PRECISION COLUMN TYPE SURFACE GRINDER
• Grinding Area of 24”x 80”.
• Table to Spindle Center is 24”.
• Longitudinal Feed has a Hydraulic drive.
• Cross Slide is has a Double Vee-Ways & Longitudinal Slide has a Flat Vee-Ways.
•.Vertical Feed id driven by AC Servo Motor.
• Cross Feed is driven by Solid State Relay.
• Conversational NC Computer Control.
Specifications:
Grinding Surface of Table:                                       24” x 80”
Maximum Table Travel:                                            26” x 85”
Maximum Distance from Spindle to Table:             24”
Table Speed:                                                            5 ~ 25 M/min
Power Cross Feed:                                                   44”/min.
Cross Feed on Hand Wheel (1 rev):                        0.2”
Auto Cross Feed Increments:                                  0.004 ~ 0.8”
Vertical Feed by M.P.G (1 rev):                                (x10) 0.1”
Rapid Power Hand Elevation:                                  31”/min.
Wheel Speed:                                                          1,750 RPM
Grinding Wheel Dims:                                             16” x 2” x 5”
Spindle Motor:                                                         10 HP
Hydraulic Motor:                                                      3 HP
Voltage:                                                                    230/460V AC ~ 3 Phase
Weight                                                                     22,000 lbs
Dimensions                                                             188 × 90 × 90 in
Standard Equipment:
• Chuck Controller
• NC Parallel Dresser
• Coolant System
• Flange Extractor
• Grinding Wheel
• Diamond Wheel Dresser
• Electromagnetic Chuck
• Wheel Balancing Arbor
• Wheel Flange
• NC Computer Control
• Halogen Work Light
• Leveling Screws & Plates
