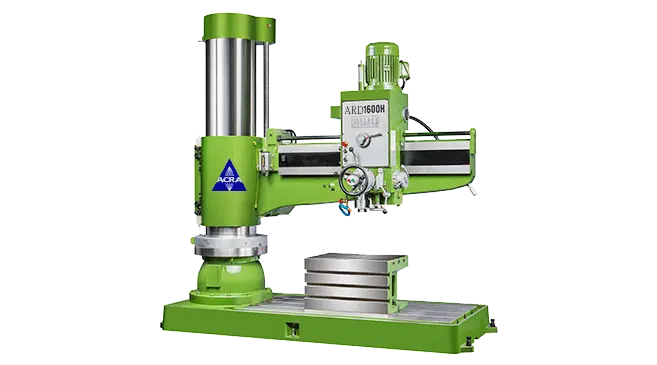

NEW ACRA ARD1600H

Equipped With
ACRA MODEL ARD1600H RADIAL ARM DRILLING MACHINE WITH HYDRAULIC CLAMPING
• Has a IC Timer which gives the advantage of pressing one button that automatically releases up/down movement, stop, and automatically clamping. The spindle will maintain it’s original position after the tools have been changed.
• A special arm elevating safety device is provided to prevent arm from falling abruptly after years of usage. It will keep the copper nut from being excessively wornout.
• A recycling coolant pump is furnished to cool off precise gears inside gear box and minimize excessive wear on gears to lowest extent.
• Made in Taiwan.
Specifications:
Drilling (Steel):                                          2-9/16”
Drilling (Cast Iron):                                    2-3/4”
Tapping (Steel):                                         2”
Tapping (Cast Iron):                                  2-3/8”
Diameter of Column:                               17”
Column Surface to Spindle Center:         17-5/16” ~ 62-3/16”
Travel of Spindle Head:                            44-7/8”
Base Surface to Spindle:                          14-7/8” ~ 62-7/8”
Elevating Height of Arm:                          33-3/8”
Box Table Dimensions:                             27” x 19” x 15”
Spindle Taper:                                           MT#5
Spindle Travel:                                         14-1/2”
Spindle Speeds                                        (12): 40~1,920 RPM
Spindle Feeds:                                          0.07 ~ 0.96 (6 Steps)
Main motor (HP):                                      7.5 HP
Elevating motor (HP):                               2 HP
Hydraulic Clamping motor (HP):              1 HP
Coolant equipment (HP):                         1/8 HP
Weight                                                     11,200 lbs
Dimensions                                              113 × 56 × 116 in
Standard Equipment:
• Adjustment Tools (Box included)
• Coolant System (Pump included)
• Work Light (Fluorescent Lamp Included)
• Box-type Worktable
• Lead Screw
• Column
• Electrical Control Box
• Hydraulic Flow Distributing Value
• Base
