NEW KENT USA LA-30

Equipped With

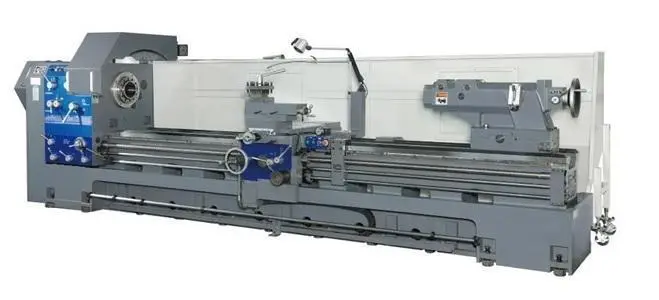

NEW - 30" x 80 - 200 KENT USA MODEL LA-30 PRECISION ENGINE LATHE
·         20 HP Spindle Motor, 18-Speeds
·         6” Spindle Through Hole; Optional 10”, 12”
·         Solid One Piece Full Length Casting Base and Bed with Double V Carriage Ways for Maximum Rigidity
·         Mobile Full Length Rear Splash Guard allows for Easy Chip Removal
·         Spindle Jog Button Control and Full Universal Gear Box
·         Automatic Lubrication System for Bed Way and Cross Slide
·         Heavy duty 2-speed Tail Stock with Large 4.9” Quill Diameter for MT#6  Mounting
·         Safety Interlocked Electric Cabinet and Chuck Cover
Rear Safety Chuck Cover for Optional Rear Mounting Chuck
Capacity
Swing over bed ways
30” (770mm)
Swing over cross slide
20.5” (520mm)
Swing over gap
42”(1,070mm)
Center height
15.3” (390mm)
Bed ways
3 V-ways with 1 Flat
Bed width
20” (510mm)
Distance between centers
80”(2000mm),120”(3000mm), 160”(4000mm), 200” (5000mm)
Headstock
Spindle hole
6” (153mm), Opt. 10”, 12” (255mm,305mm)
Spindle nose
A2-11 (Optional D1-11)
(A2-15 for 10”, A2-20 for 12” and 14”)
Spindle to sleeve taper
MT #5 (MT #6 for 10” ~ 14” spindle bore)
Spindle speeds
5 ~ 670 RPM
(4~500 RPM for 10”, 4~440 for 12”)
Spindle speed steps
18 Steps
Carriage
Bearing length on ways
29.5” (750mm)
Cross slide width
11” (280mm)
Cross slide travel
19.6” (500mm)
Top slide (compound) travel
12” (300mm)
Feed Box
Thread capacity (inches)
30 ~ 0.25 TPI (70 sets)
Thread capacity (metric)
1 ~ 120 mm (60 sets)
Modular threads range
30 ~ 0.25 TPI (53 sets)
Diametral pitch range
1 ~ 120 mm (70 sets)
Longitudinal feeds
0.0032 – 0.096 IPR
Cross feeds
0.0016 – 0.048 IPR
Tailstock
Quill diameter
4.9” (125mm)
Quill travel
5.9” (150mm)
Quill taper
MT#6
Power
Main motor
20 HP (Opt. 30 HP)
Coolant pump motor
1/8 HP
Control circuit voltage
24 V
Dimension
Shipping dimension
186 x 70 x 62 inch for LA-30120 model
(Add or subtract length by 40” per Meter variation in length)
Weight
Net weight (approx)
15,265 LBS for LA-30120 (weight vary by around 2,200 lbs per meter difference)
Gross weight (approx)
19,670 LBS for LA-30120 (weight vary by around 3,300 lbs per meter difference)
