NEW KENT USA SGS-1224SD2

Equipped With

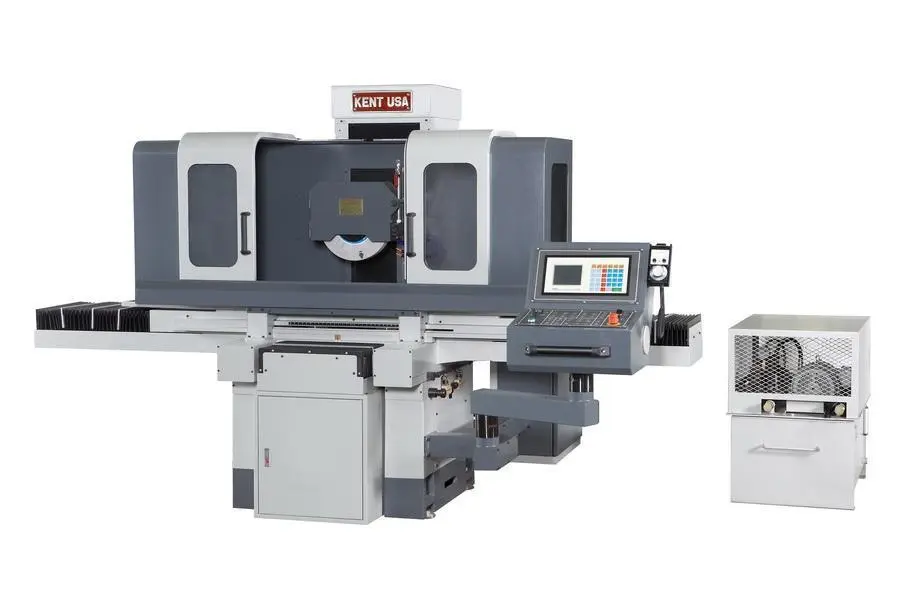

NEW - 12" x 24" KENT USA MODEL SGS-1224SD2 AUTOMATIC FEED SURFACE GRINDER
·         12” x 24” working capacity
·         3-axis automatic movement with incremental downfeed, electronic auto-crossfeed, and proportional valve hydraulic powered table movement
·         Precision hand scraped turcite table and saddle ways for smooth and long-lasting precision
·         High column design with 23” spindle center to table for extra clearance under the wheel and rapid elevation motor for quick/easy positioning
·         Centralized automatic lubrication system provides lubrication to all points
·         Safety 24V control circuit power
GENERAL SPECIFICATIONS


Table travel:
27.5”
Saddle travel:
13.5”
Working capacity:
11.8” x 23.6”
T-slot:
3 x 9/16”
Spindle motor:
7.5 HP x 4P
Spindle speed:
1750 RPM
Grinding wheel:
14” x 1-1/4” x 5”
Vertical graduation:
0.0005”
Vertical revolution:
0.100”
Auto downfeed increment
0.001”
Spindle to table:
23”
Net weight:
4850 LBS
Gross weight:
5291 LBS


STANDARD ACCESSORIES


Grinding wheel
Wheel flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base and tip
Leveling bolts and pads
Work light
Toolbox with tools
12” x 24” electric magnetic chuck and control with automatic demagnetizer
Paper filter and magnetic separator coolant system
Overhead parallel dresser
