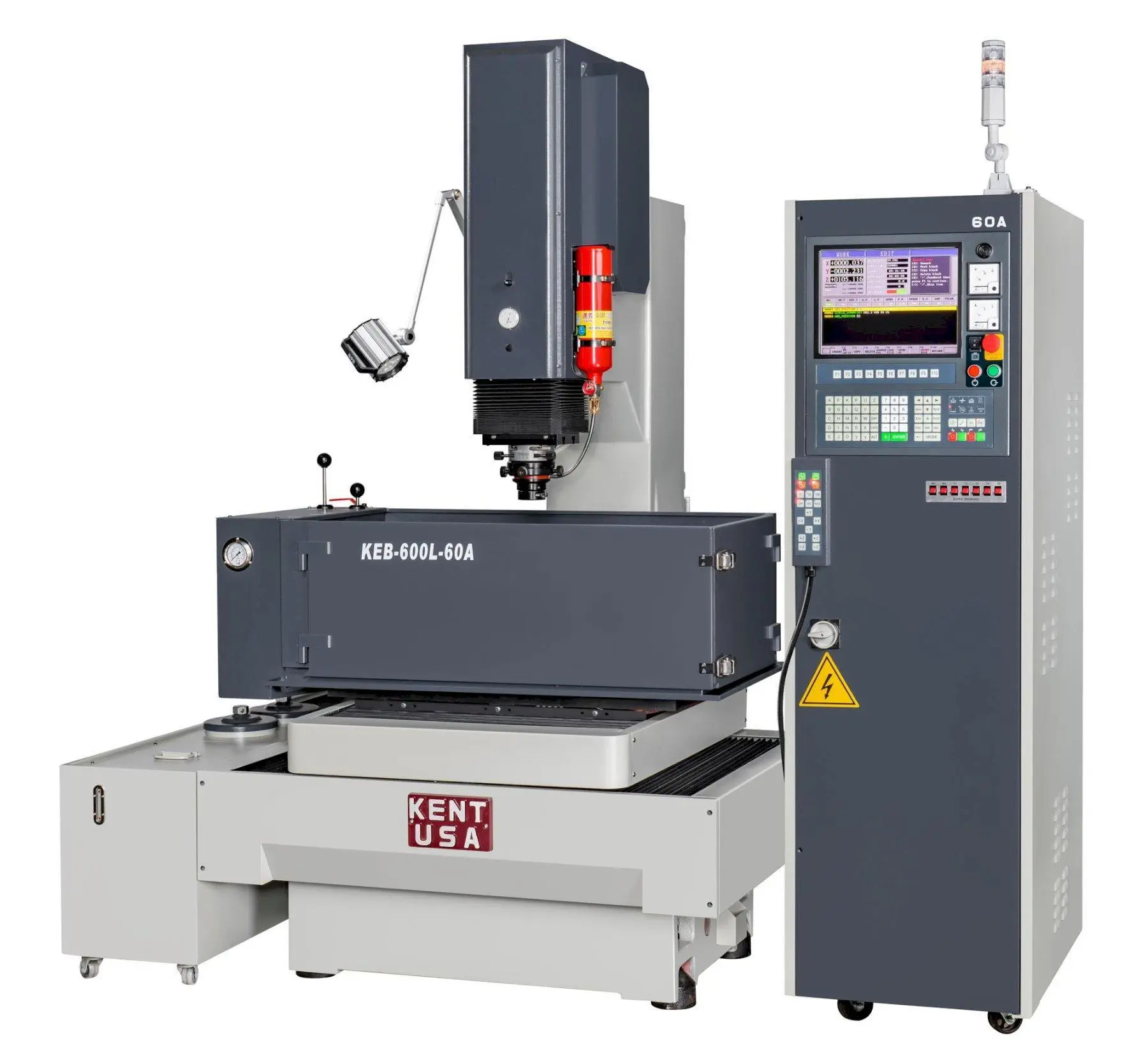

NEW KENT USA KEB-600L

Equipped With
NEW KENT MODEL KEB-600L SINKER TYPE EDM
·
60 Amp power supply capacity
·         Fully ribbed solid casting for maximum rigidity and stability
·         Built-in 3-axis DRO system integrates with machine control for positioning and auto z-depth setting in for simple programming
·         Maximum 256 programmable steps for setting all machining parameters enables complete start to finish auto cycle for even the most complex jobs
·         MOSFET electric discharge circuit design is ideal for fast burning, reduced electrode wear, and uniform surface finish applications
·         Precision linear ways with lubricated ball screws and AC Servo motors on X, Y, Z-axis
·         Single or 3 axes lateral movement, round orbiting, square orbiting, etc.
·         Multi-cavity machining, Auto Home Function
                                                                  With Side loran function (X, Y axis), Angle Vector machining function, and ARC clockwise & ARC counter clockwise function
STANDARD ACCESSORIES: Work head, work lamp, filter (2 pcs), tool box, automatic fire extinguisher, 15” color LCD, remote control box
Work tank:
43.3” x 23.6” x 15.7”
Work table:
27.6” x 15.7”
Travel (x/y/z):
15.7” x 11.8” x 11.8”
Distance between platen to table:
10.6”~24”
Max electrode weight:
221 lbs
Max work piece weight:
2204 lbs
Max Output current:
60 Amp
Max stock removal:
400 mm3/min
Best surface finish:
Ra 0.2 mm
Best electrode wear:
< 0.12%
Machine dimensions:
95” x 63” x 93”
Net weight:
4409 lbs
