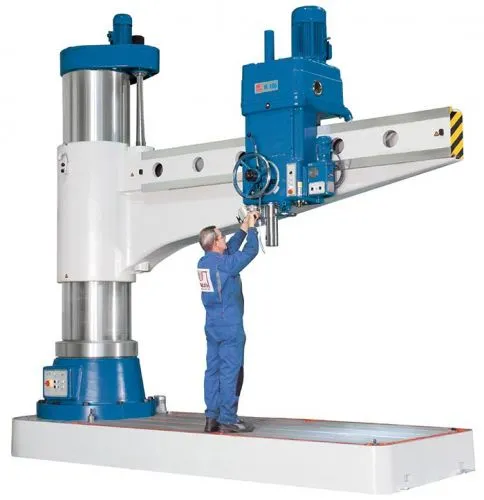

Equipped With
R 60 V
R 40 V
R 80 V
R 100
Working Area
Drilling capacity
2.44 in
1.57 in
3.15 in
3.94 in
Tapping capacity, cast-iron
M 52
M 40
M 60
M 80
Tapping capacity, steel
M 46
M 32
M 52
M 70
Drilling depth (max.)
12 in
10 in
16 in
20 in
Machine table dimensions
94x39x8 in
81x36x7 in
133x48x11 in
174x64x12 in
Cube table dimensions
30x20x20 in
24x18x18 in
23x33x20 in
49x31x25 in
Throat
14 - 63 in
12 - 51 in
18 - 100 in
22 - 124 in
Spindle nose-to-table surface distance
14 - 49 in
12 - 47 in
16 - 62 in
30 - 98 in
Drill head travel (horizontal)
49 in
Arm stroke (vertical)
23 in
25 in
31 in
39 in
Column diameter
14 in
11 in
18 in
28 in
Headstock
Speed range
38 - 2,000 rpm
54 - 2,150 rpm
30 - 1,400 rpm
(22) 8 - 1,000 rpm
Spindle mount
MT 5
MT 4
MT 6
MK 6
Feed
Feeds
0 - 0.04 in/R
0 - 0.02 in/R
0 - 0.05 in/R
0 - 0.13 in/R
Drive Capacity
Motor rating main drive
5.4 Hp
3 Hp
10.1 Hp
20.1 Hp
Stroke motor
2 Hp
1.5 Hp
3 Hp
4 Hp
Measures and Weights
Overall dimensions (length x width x height)
99x42x110 in
82x34x96 in
142x50x139 in
189x65x186 in
Weight
8,360 lbs
5,060 lbs
16,280 lbs
44,000 lbs
Travels
Drill head travel (horizontal)
--
39 in
83 in
102 in

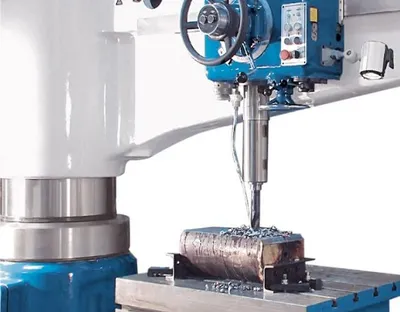

Base, column, boom and gear head are made of premium high-quality cast
Major design features include a large column and a highly torsion-resistant boom
Boom height adjustment via a powerful motorized drive and vertical spindle
The boom lifting gears run in an oil-bath for maximum reliability and minimum wear
Advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset
Swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier
The gears feature hardened and precision-ground chrome-nickel steel gears for smooth and low-noise operation
All gear parts are lubricated reliably via oil pump
The main spindle runs on precision bearings and features an automatic spindle brake
Quill teeth are precision-ground for a smooth feed and minimum wear
The drill head moves on hardened and ground guideways
All models feature adjustable overload clutches in the feeds
Adjustable boring depth stop with large, easy to read scale
All operator controls are placed within reach for convenient and practical handling and quick learning
Powerful coolant system with coolant reservoir integrated into the machine foot
A large throat and high boring capacities are supported by a very rigid structural design, without compromising the ease of handling and smoothness of operation
The drill head features a rigid design with motorized or manual movement
Spindle speeds and feed velocity are hydraulically controlled for easy and safe operation
The drill spindle is driven via multi-disk reversing clutch to avoid excessive load peaks and for easy operation
Independent hydraulic clamping of head, column and boom
Drill head and column can be clamped/released together or separately; confirmation of operation via push button
Boom and column are oiled through a reliable central lubrication system
coolant system
cube table
LED work lamp
operator instructions
