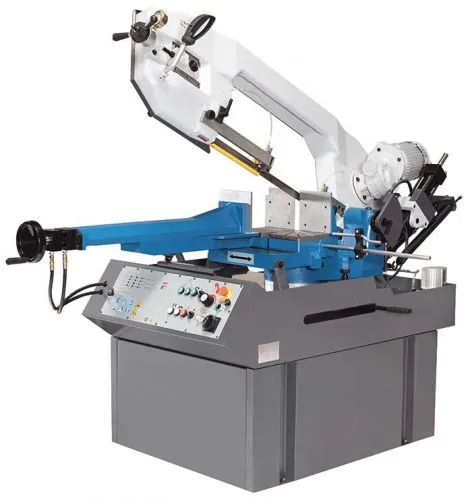

NEW KNUTH SBS

Equipped With

SBS 255
SBS 355
Cutting Capacities
Cutting capacity 90¡ round
10 in
14 in
Cutting capacity 90¡ - square
9 in
12 in
Cutting capacity 90¡ - flat
12x9 in
12x21 in
Cutting capacity 45¡ (square) L
6 in
11 in
Cutting capacity 45¡ (flat) L
6x6 in
11x11 in
Cutting capacity 45¡ (round) L
6 in
12 in
Cutting capacity 45¡ (square) R
8 in
11 in
Cutting capacity 45¡ (round) R
8 in
14 in
Cutting capacity 45¡ (flat) R
8x9 in
11x14 in
Cutting capacity 60¡ R (round)
5 in
9 in
Cutting capacity 60¡ R (square)
5 in
7 in
Cutting capacity 60¡ R (flat)
5x6 in
7x9 in
Cutting speed
1772 / 3543 fpm
787 / 3150 fpm
Drive Capacity
Motor rating main drive
2 Hp
3 Hp
Measures and Weights
Overall dimensions (length x width x height)
68x29x45 in
86x39x45 in
Weight
836 lbs
1,771 lbs
Rigid vise with lateral slide, long stroke and long guideways in the movable jaw segments
Hydraulic quick-action clamping fixture with proven performance in series production ensures constant tension to the last cut
Infinitely variable saw blade speed for optimum machining of a wide range of materials and profiles
Easy handling - at the end of the cut, the integrated hydraulics lift the saw frame to the home position
The one-piece cast-iron saw frame is torsion-proof and swivels 60¡ to the right, and 45¡ to the left
Rigid saw blade guides offer a wide adjustment range for workpieces with small and large cross-sections
The combination of carbide jaws and adjustable ball bearing guides ensure precision cuts
A wide bi-metallic saw blade ensures additional stability during heavy machining operations
Saw frame features manual feed for sensitive workpiece characteristics
Hardened, polished helical gear with large bronze drive wheel for long service life
Quiet operation, short machining times and easy handling ensure increased productivity
Powerful motor for continuous operation
High-capacity coolant system is included
Includes base
1 saw blade
coolant system
base
pressure gauge for saw blade tension
hydraulic cylinder for saw frame
inverter for infinitely variable saw blade speed
hydraulic tool clamping
operator manual
