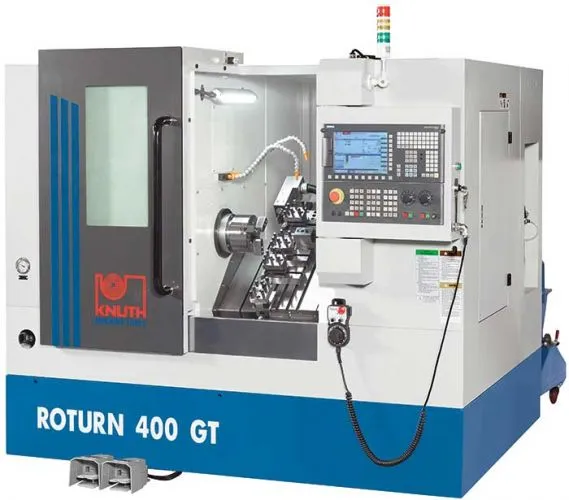

NEW KNUTH ROTURN 400 GT

Equipped With
Working Area
Workpiece length (max.)
15 in
Center height
8 in
Turning diameter over bed
16 in
Turning-¯ over support
6 in
Travels
Travel X-axis
18.1 in
Travel Z-axis
16 in
Headstock
Speed range
60 - 5,000 rpm
Spindle mount
A2-5
Spindle bore
2 in
Spindle bore with draw tube
1.4 in
Rapid Feed
Rapid Feed X-axis
984.25 in/min
Rapid Feed Z-axis
984.25 in/min
Tool Head
Tool change type
Linear changer
Tool shank dimensions
0.8x0.8 in
Boring bar mount diameter
1.5 in
Driven Tools
Number of driven tools
1 positions
Speed range, driven tools
7,500 rpm
Collet
ER 25
Drive Capacity
Main motor rating
10 / 7 Hp
Motor rating coolant pump
0.2 Hp
Measures and Weights
Overall dimensions (length x width x height)
77x60x69 in
Weight
5,500 lbs
Part No.
180632

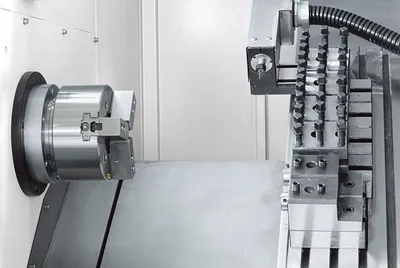

Linear tool changers are ideal for the serial production of smaller workpieces - shortest tool changing times and absolutely reliable features ensure increased productivity
Machine frame with inclined bed construction for high rigidity and easy chip removal
Hardened linear guides on X and Z ensure maximum precision and reliability
Totally enclosed workspace for optimum protection and cleanliness and a large sliding door provides easy Access

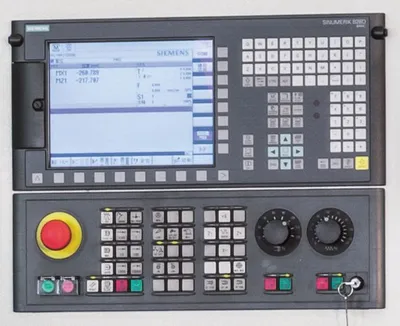

The tried and tested SIEMENS 828 D Basic control meets all requirements for advanced control technology
Main spindle driven by a powerful servo Motor
A hydraulic 6 in 3-jaw chuck is included in the standard Equipment
Chip conveyor and powerful coolant system are also included in the standard Equipment
Automatic central lubrication system ensures reliable lubrication of guideways
The machine can be equipped with an optional driven tool for radial and axial machining
Compact, rugged and maintenance-free operator-panel CNC with dedicated system software for turning, milling and grinding technologies
High-quality, rugged, magnesium die-cast operator panels with degree of protection IP65
Maintenance-free operator panel front, e.g. no fan, battery or hard disk
Highest machining precision with 80-bit NANOFPaccuracy
New user interface SINUMERIK Operate Ð same look and feel as SINUMERIK 840D sl
ShopTurn/ShopMill (option): Very fast programming time in the production of individual parts and small batches
Advanced Surface: Innovative, high-performance CNC functions provide top quality of workpiece surface with minimum machining times
Technology package SINUMERIK MDynamics with the new function Advanced Surface: Perfect workpiece surfaces and very fast machining times in molded part production
programGUIDE: fastest machining time and maximum flexibility for large series productions
Unique spectrum of technology cycles Ð ranging from the machining of any turning and milling contour with residual material detection to in-process measurements
G-Tech is a grinding package with an extensive scope of CNC functions ranging from the low-cost entry-level model up to highly productive machines
Animated Elements: Unique operating and programming support with moving picture sequences
modern data transfer options via USB stick, CF card and network (Ethernet)
SINUMERIK Integrate for production Access MyMachine /Ethernet permits remote diagnostics from anywhere in the world
Easy Message: Integrated mobile radio modem for optimum process monitoring and maximum machine availability via text messages (SMS)
Easy Extend: Flexible handling of machine units, e.g. an A axis/parts machine
Maintenance scheduler: Signaling of pending maintenance tasks in accordance with specified maintenance intervals
Functions
Operator panel variants for horizontal or vertical operator panel housings
Proximity/clearance sensor for smart display control
Integrated QWERTY full CNC keyboard with short-stroke keys
Additional Ethernet interface at the rear of the CNC for connection to factory network
Additional USB interface at the rear of the CNC for machine control panel
Integrated PLC based on the SIMATIC S7-200 command set with ladder logic programming
I/O interface based on PROFINET for the connection of PLC I/O devices and a machine control panel
Up to 5 axes/spindles
1 analog spindle
1 machining channel/mode group
Integrated tool management with tool life monitoring
Configurable user screens with SINUMERIK Integrate for engineering Run MyScreens (Easy Screen)
SINUMERIK Integrate for engineering Run MyRobot /EasyConnect for simple interfacing of robots and handling systems
Integrated data archiving procedure for simple data updates
Siemens 828 D Basic control
Hydraulic 3-jaw lathe chuck, ¯ 6 inch with bore
Driven tools (radial)
automatic central lubrication
Chain-type chip conveyor
Heat exchanger for electric control cabinet
enclosed work space
LED work lamp
coolant system
operating tools
operator manual
