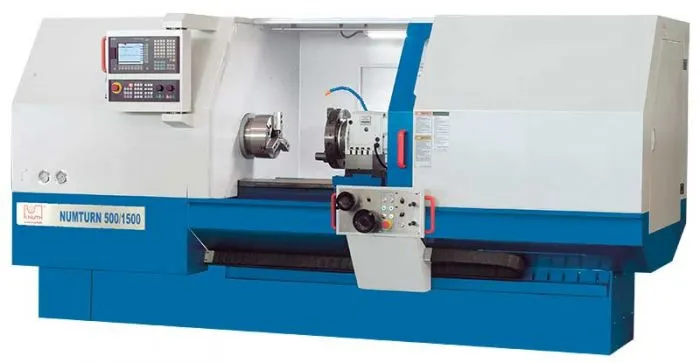

NEW KNUTH NUMTURN 500/1500 FA

Equipped With
Working Area
Workpiece length (max.)
57 in
Turning-¯ over bed (max.)
20 in
Turning-¯ over support
12 in
Turning length (max.)
48 in
Details
Control
Fagor 8055i
Travels
Travel X-axis
10.2 in
Travel Z-axis
56 in
Headstock
Speed range
60 - 2,000 rpm
Spindle mount
A2-8
Lathe chuck diameter
10 in
Spindle capacity with draw tube
3 in
Rapid Feed
Rapid Feed X-axis
157.48 in/min
Rapid Feed Z-axis
314.96 in/min
Tool Head
Number of tool stations
8 positions
Accuracies
Positioning accuracy X-axis
± 0.0005 in
Positioning accuracy Z-axis
± 0.0006 in
Repeatability X-axis
± 0.0004 in
Repeatability Z axis
± 0.0006 in
Tailstock
Tailstock taper
MT 5
Tailstock quill diameter
3 in
Tailstock quill stroke
6 in
Drive Capacity
Motor rating main drive
20.1 Hp
Main drive, continuous load
14.75 Hp
Torque of drive X
89 ft.lb.
Torque of drive Z
133 ft.lb.
Motor rating coolant pump
0.2 Hp
Measures and Weights
Overall dimensions (length x width x height)
144x70x73 in
Weight
7,260 lbs
Part No.
180158
Heavy ribbing of the machine frame and wide hardened V-guides for heavy-duty machining
Headstock and main spindle are designed for constant precision and optimum
temperature balance
High-quality spindle bearings ensure error-free continuous operation
The heavy-duty tailstock is easy to handle and features high clamping force
The automatic 8-station VDI tool turret is part of the standard package and ensures maximum flexibility and productivity
Hydraulic chuck with adjustable holding force included in standard equipment
The machine housing can be completely closed and is easily accessible through a wide opening sliding door
The machine housing can be completely closed and is easily accessible through a wide opening sliding door
Smart central lubrication system for low-maintenance operation
The FAGOR 8055 Numeric Controls are user-friendly and easy to handle
A graphical Profile Editor is available to facilitate contour input. The contour to be produced can easily be created by using the information from parts drawings
The graphically displayed cycles can be used individually or they can be linked within a user application
The Fagor 8055i/A Version TC Cycle Control is a powerful CNC, specifically designed for the most demanding machine tool applications. Its calculation capacity and high speed ensure maximum power and increased programming flexibility.
Profile Editor
DIN ISO programming is also possible
Fixed cycles with options for graphic geometry definition
With multi-threaded thread cycle
Thread repair with cycle
Graphic simulation with solid body display, including simultaneous for editing
Easy to use tool management
USB port
RS232 port
Look Ahead function (75 blocks)
Block Processing Time: 1.5 ms
Compact Flash with storage expansion up to 2 GB
Optional C axis function prepared for lathes
Optional up to 1 MB RAM user memory
Optional free M-Codes, inputs and outputs
hydr. tailstock
control Fagor 8055i FL-TCO
2 electronic hand-wheels
8-station VDI tool turret
hydr. 3-jaw chuck ¯ 10"
automatic central lubrication
work lamp
operating tools
operating manual and programming instructions
