Equipped With
NeoSpark B 300
NeoSpark B 500
Working Area
Table dimensions
24x17 in
32x21 in
workpiece, length x width x thickness (max.)
38x22x12 in
47x26x16 in
Work piece weight (max.)
1,100 lbs
1,760 lbs
X-axis travel
16 in
24 in
Y-axis travel
12 in
16 in
Travel U / V-axis
2,75 / 2,75 in
Z-axis travel
10 in
14 in
Cutting angle (with guide)
± 10¡ / 80 mm
Cutting capacity (max.)
0.31 in?/min
Generator
10
CNC control
Display size / type
15" / LED
Controlled axis
4
Input increment (min.)
0.00004 in
Dielectric system
Dielectric, tank capacity
48 gal
Feed
Rapid feed X / Y axis
39 in/min
Accuracies
Positioning accuracy X / Y axis
0.0004 in
Positioning accuracy U/V axis
0.0004 in
Repeatability X / Y axis
0.0002 in
Repeatability U / V axis
0.0002 in
Best surface roughness
0.8 µm Ra
Drive Capacity
Motor rating X / Y axis
0.2 Hp
0.3 Hp
Motor rating U / V axis
0.03 Hp
Motor rating Z-axis
0.03 Hp
0.08 Hp
Measures and Weights
Overall dimensions (length x width x height)
81x63x73 in
95x75x82 in
Weight
4,400 lbs
5,720 lbs

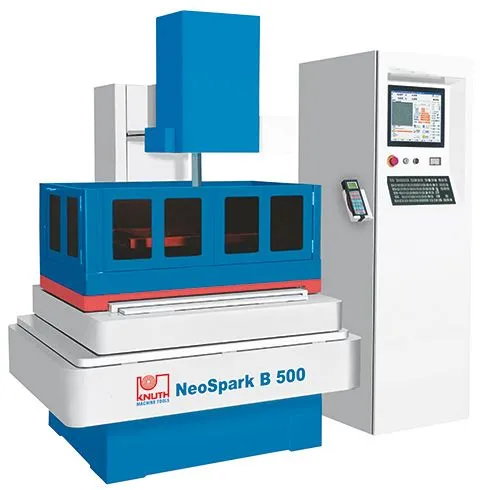

The NeoSpark CNC Electric Discharge Machine delivers excellent cutting performance and operating cost is extremely low
The cast-iron machine frame features a modern C-frame with T-base, multiple
reinforcing ribs, precision-machined surfaces and thermal stress-relief
Rigid linear guides and precision preloaded ballscrews on all axes ensure permanent mechanical precision
The IPC-based control system with servo drives is fine-tuned to the manufacturing process requirements and it is user-oriented and reliable
2-step filtration system in the dielectric tank ensures uninterrupted operation and high machining quality

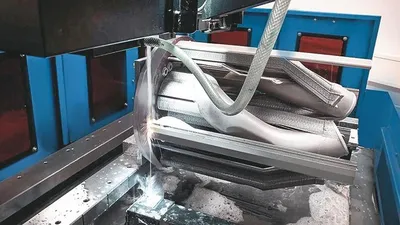

High-Speed Wire EDM Ð Cutting Technology for 3D Metal Printing
Compared to mechanical divisions, there is virtually no pressure on the component
Delicate structures can be machined without the risk of deformation or
microcracking in the cut surface
Perfect balance between cutting accuracy and high cutting speed
Significantly more cost-efficient than conventional wire EDM
Long wire life ensures high productivity and minimal downtimes

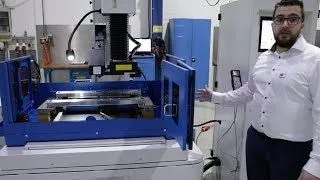

Check out our reference report NeoSpark 500
erosion wire 0.007"
dielectric 22 lb
electronic manual control unit
device for maintaining constant wire tension
wire setup assistance
generator
USB port
Ethernet
standard wire guides
dielectric tank with pump
work lamp
warning beacon
AC power stabilizer
leveling plates and jacks
central lubrication
operating tools
operator manual
