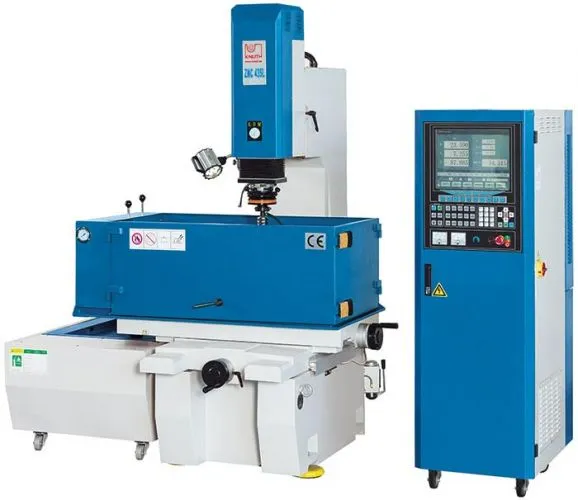

NEW KNUTH ZNC

Equipped With

ZNC-EDM 250
ZNC 435 L
ZNC 760 L
Working Area
Table dimensions
18x11 in
28x18 in
28x47 in
Electrode holder-to-table distance
7.87 - 15.75 in
9.84 - 23.62 in
11.81 - 34.25 in
Work piece weight (max.)
440 lbs
1,540 lbs
4,400 lbs
Quill stroke
8 in
10 in
12 in
Electrode weight (max.)
66 lbs
Travels
Travel X-axis
9.8 in
17.7 in
27.6 in
Travel Y-axis
8 in
14 in
24 in
Generator
Generator power consumption
3.5 kVA
7.5 kVA
9 kVA
Removal rate (max.)
0.62 in?/min
0.78 in?/min
1.24 in?/min
Electrode wear, min.
² 0,2 %
Mean generator capacity
40
80
100
Generator weight
0 lbs
440 lbs
440 lbs
Accuracies
Roughness
< 0,3 µm Ra
Measures and Weights
Overall dimensions (length x width x height)
55x59x83 in
60x63x83 in
74x65x101 in
Weight
2,200 lbs
3,960 lbs
8,360 lbs
User-friendly CNC control assists the user in the selection of work parameters
The machine frame design incorporates modern aspects plus many years of manufacturing experience
X and Y- axes are equipped with preloaded ball screws for low maintenance and high precision
The main axis is positioned by a precision spindle, which has its own lubricant circuit - ensuring constant temperature conditions at the spindle, minimum friction and maximum precision
The dielectric system is driven by a premium pump made by a renowned European manufacturer
Machine operation is user-oriented and easy to learn
Fine-incremented work parameters allow high powered material removal and finishing in one process
Diagnostics information is very helpful
Low-Cost Entry-Level Electric Discharge Technology
control unit
fire extinguishing system
work lamp
filter system
scales for X / Y- axis
chuck
operating tools
operator instructions
