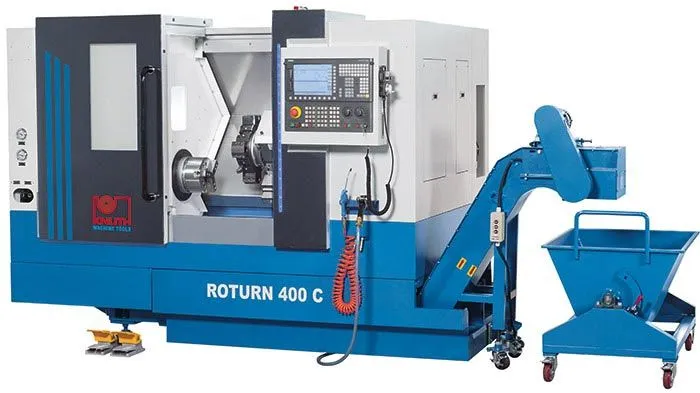

NEW KNUTH ROTURN 400 C

Equipped With
Working Area
Workpiece length (max.)
17 in
Center height
8 in
Turning diameter over bed
16 in
Turning-¯ over support
10 in
Travels
Travel X-axis
8 in
Travel Z-axis
18 in
Headstock
Speed range
50 - 3,000 rpm
Spindle mount
A2-6
Spindle bore
2 in
Spindle bore with draw tube
1.8 in
Tool Head
Number of tool stations
8 positions
Tool shank dimensions
1x1 in
Boring bar mount diameter
1.6 in
Rapid Feed
Rapid feed X-axis
630 in/min
Rapid feed Z-axis
787 in/min
Tailstock
Tailstock taper
MK 5
Tailstock quill diameter
3 in
Tailstock quill stroke
3 in
Drive Capacity
Main motor rating
15 / 11 Hp
Motor rating coolant pump
0.2 Hp
Measures and Weights
Overall dimensions (length x width x height)
102.76x75.98x70.87 in
Weight
6,160 lbs
Part No.
470512
Heavy machine frame with inclined bed ensuring high rigidity and easy chip removal
Precise linear guides in X and Z for high stability and accuracy even at highest loads
The enclosed work space is easily accessible through a large sliding door
Future-proof: the Siemens 828 D Basic control meets all requirements for advanced control technology
The 8-station tool turret ensures a large work area and quick and precise tool changes
A powerful 20 HP headstock motor delivers high torque across the entire speed range
Proven record:
Easy, dialog-guided user interface
Complete bandwidth of technology cycles
High performance and precision
Hydraulic 8 in 3-jaw chuck with through-hole
Tailstock with hydraulically operated quill with a maximum stroke of 3 in
Automatic central lubrication system ensures reliable lubrication of guideways
Chain-type chip conveyor and high-performance coolant system included in standard equipment
Compact, rugged and maintenance-free operator-panel CNC with dedicated system software for turning, milling and grinding technologies
High-quality, rugged, magnesium die-cast operator panels with degree of protection IP65
Maintenance-free operator panel front, e.g. no fan, battery or hard disk
Highest machining precision with 80-bit NANOFPaccuracy
New user interface SINUMERIK Operate Ð same look and feel as SINUMERIK 840D sl
ShopTurn/ShopMill (option): Very fast programming time in the production of individual parts and small batches
Advanced Surface: Innovative, high-performance CNC functions provide top quality of workpiece surface with minimum machining times
Technology package SINUMERIK MDynamics with the new function Advanced Surface: Perfect workpiece surfaces and very fast machining times in molded part production
programGUIDE: fastest machining time and maximum flexibility for large series productions
Unique spectrum of technology cycles Ð ranging from the machining of any turning and milling contour with residual material detection to in-process measurements
G-Tech is a grinding package with an extensive scope of CNC functions ranging from the low-cost entry-level model up to highly productive machines
Animated Elements: Unique operating and programming support with moving picture sequences
modern data transfer options via USB stick, CF card and network (Ethernet)
SINUMERIK Integrate for production Access MyMachine /Ethernet permits remote diagnostics from anywhere in the world
Easy Message: Integrated mobile radio modem for optimum process monitoring and maximum machine availability via text messages (SMS)
Easy Extend: Flexible handling of machine units, e.g. an A axis/parts machine
Maintenance scheduler: Signaling of pending maintenance tasks in accordance with specified maintenance intervals
Functions
Operator panel variants for horizontal or vertical operator panel housings
Proximity/clearance sensor for smart display control
Integrated QWERTY full CNC keyboard with short-stroke keys
Additional Ethernet interface at the rear of the CNC for connection to factory network
Additional USB interface at the rear of the CNC for machine control panel
Integrated PLC based on the SIMATIC S7-200 command set with ladder logic programming
I/O interface based on PROFINET for the connection of PLC I/O devices and a machine control panel
Up to 5 axes/spindles
1 analog spindle
1 machining channel/mode group
Integrated tool management with tool life monitoring
Configurable user screens with SINUMERIK Integrate for engineering Run MyScreens (Easy Screen)
SINUMERIK Integrate for engineering Run MyRobot /EasyConnect for simple interfacing of robots and handling systems
Integrated data archiving procedure for simple data updates
Siemens 828 D control
Hydraulic 3-jaw lathe chuck, ¯ 8 inch with bore
hydr. tailstock
Automatic central lubrication
hinged belt conveyor
Heat exchanger for electric control cabinet
enclosed work space
LED work lamp
coolant system
compressed air gun
coolant gun
operating tools
operator manual
