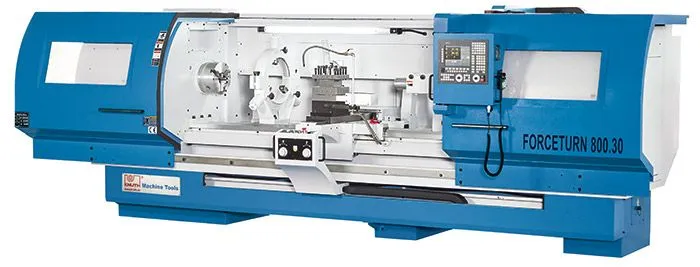

NEW KNUTH FORCETURN

Equipped With

Forceturn 630.15
Forceturn 630.30
Forceturn 630.50
Forceturn 800.15
Forceturn 800.30
Forceturn 800.50
Working Area
Turning diameter over bed
26 in
26 in
26 in
32 in
32 in
32 in
Bed width
18 in
Center height
13 in
13 in
13 in
17 in
17 in
17 in
Turning-¯ over support
16 in
16 in
16 in
22 in
22 in
22 in
Workpiece length (max.)
63 in
122 in
201 in
63 in
122 in
201 in
Travels
Travel X-axis
17.7 in
Travel Z-axis
59 in
118 in
197 in
59 in
118 in
197 in
Headstock
Speed range
27 - 2,250 rpm
27 - 2,250 rpm
27 - 2,250 rpm
20 - 1,500 rpm
20 - 1,500 rpm
20 - 1,500 rpm
Spindle mount
D1-8
D1-8
D1-8
A1-11
A1-11
A1-11
Spindle bore
3 in
3 in
3 in
4 in
4 in
4 in
Rapid Feed
Rapid Feed X-axis
196.85 in/min
Rapid Feed Z-axis
196.85 in/min
Tool Head
Number of tool stations
4 positions
Accuracies
Positioning accuracy X-axis
0.00059 in
Positioning accuracy Z-axis
0.00059 in
0.00079 in
0.00118 in
0.00059 in
0.00079 in
0.00118 in
Repeatability X-axis
0.00028 in
Repeatability Z-axis
0.00028 in
0.00039 in
0.00059 in
0.00028 in
0.00039 in
0.00059 in
Tailstock
Tailstock taper
MT 5
Tailstock quill diameter
4 in
Tailstock quill stroke
7 in
Drive Capacity
Motor rating main drive
20.1 Hp
Main drive, continuous load
29.5 Hp
Motor rating X-axis
2.7 Hp
Motor rating Z-axis
4.83 Hp
Measures and Weights
Overall dimensions (length x width x height)
158x89x89 in
217x89x89 in
296x89x97 in
158x89x89 in
217x89x89 in
296x89x97 in
Weight
9,020 lbs
12,320 lbs
16,720 lbs
9,900 lbs
13,200 lbs
17,600 lbs
Lots of experience went into the design and construction of this machine bed featuring large guides that are hardened, ground and counter-laminated
Powerful main drive motor handles part weights up to 3748 lb with ease
Infinitely variable, programmable, and adjustable spindle speeds with automatic 3-step main gear

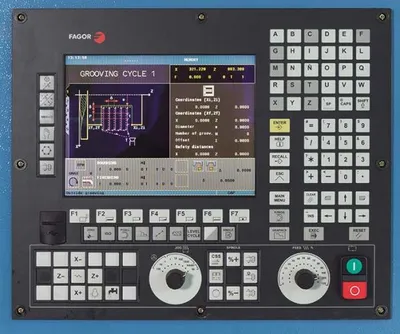

Fagor 8055i A-TC featuring intuitive, easy to learn cycle programming, including Profile Editor, for batch and single part production of complex workpieces
Graphical simulation for added safety
Heavy, automatic 4-station servo-driven tool changer for programmed tool changes
2 electronic hand-wheels at the control panel for manual operation and for easy, quick setup of new workpieces and tools
A high-performance coolant system and automatic central lubrication system are included
The FAGOR 8055 Numeric Controls are user-friendly and easy to handle
A graphical Profile Editor is available to facilitate contour input. The contour to be produced can easily be created by using the information from parts drawings
The graphically displayed cycles can be used individually or they can be linked within a user application
The Fagor 8055i/A Version TC Cycle Control is a powerful CNC, specifically designed for the most demanding machine tool applications. Its calculation capacity and high speed ensure maximum power and increased programming flexibility.
Profile Editor
DIN ISO programming is also possible
Fixed cycles with options for graphic geometry definition
With multi-threaded thread cycle
Thread repair with cycle
Graphic simulation with solid body display, including simultaneous for editing
Easy to use tool management
USB port
RS232 port
Look Ahead function (75 blocks)
Block Processing Time: 1.5 ms
Compact Flash with storage expansion up to 2 GB
Optional C axis function prepared for lathes
Optional up to 1 MB RAM user memory
Optional free M-Codes, inputs and outputs
Fagor 8055i FL-TC control
2 electronic hand-wheels
3-jaw chuck ¯ 12Ó
automatic 3-step gears
4-station servo tool holder
coolant system
central lubrication
tailstock
work lamp
operating tools
operating manual and programming instructions
